Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CD105NP-470KCFIXED IND 47UH 1.28A 170MOHM SMD |
2,393 |
|
Datasheet |
CD105 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±10% | 1.28 A | - | Unshielded | 170mOhm Max | - | 10.6MHz | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
|
CD105NP-471KCFIXED IND 470UH 420MA 1.48OHM SM |
2,422 |
|
Datasheet |
CD105 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 470 µH | ±10% | 420 mA | - | Unshielded | 1.48Ohm Max | - | 3.61MHz | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
|
CD105NP-560KCFIXED IND 56UH 1.17A 190MOHM SMD |
3,932 |
|
Datasheet |
CD105 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 56 µH | ±10% | 1.17 A | - | Unshielded | 190mOhm Max | - | 10.2MHz | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
|
CD105NP-561KCFIXED IND 560UH 330MA 1.9OHM SMD |
3,395 |
|
Datasheet |
CD105 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 560 µH | ±10% | 330 mA | - | Unshielded | 1.9Ohm Max | - | 3.25MHz | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
|
CD105NP-680KCFIXED IND 68UH 1.11A 220MOHM SMD |
4,178 |
|
Datasheet |
CD105 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±10% | 1.11 A | - | Unshielded | 220mOhm Max | - | 9.26MHz | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
|
CD105NP-681KCFIXED IND 680UH 280MA 2.25 MOHM |
1,707 |
|
Datasheet |
CD105 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 680 µH | ±10% | 280 mA | - | Unshielded | 2.25mOhm Max | - | 2.96MHz | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
|
CD105NP-820KCFIXED IND 82UH 1A 250 MOHM SMD |
3,000 |
|
Datasheet |
CD105 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 82 µH | ±10% | 1 A | - | Unshielded | 250mOhm Max | - | 8.45MHz | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
|
CD105NP-821KCFIXED IND 820UH 240MA 2.55OHM SM |
4,879 |
|
Datasheet |
CD105 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 820 µH | ±10% | 240 mA | - | Unshielded | 2.55Ohm Max | - | 2.74MHz | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
P1174.223NLTFIXED IND 22UH 500MA 120MOHM SMD |
2,398 |
|
Datasheet |
P1174NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 500 mA | 500mA | Shielded | 120mOhm Max | - | 20MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.265" L x 0.175" W (6.73mm x 4.45mm) | 0.110" (2.79mm) |
|
|
P1174.473NLTFIXED IND 47UH 350MA 230MOHM SMD |
4,351 |
|
Datasheet |
P1174NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 350 mA | 350mA | Shielded | 230mOhm Max | - | 14MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.265" L x 0.175" W (6.73mm x 4.45mm) | 0.110" (2.79mm) |
|
|
P1174.684NLTFIXED IND 680UH 100MA 2.65OHM SM |
1,564 |
|
Datasheet |
P1174NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 100 mA | 100mA | Shielded | 2.65Ohm Max | - | 3.6MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.265" L x 0.175" W (6.73mm x 4.45mm) | 0.110" (2.79mm) |
|
|
P1174.682NLTFIXED IND 6.8UH 900MA 51MOHM SMD |
1,768 |
|
Datasheet |
P1174NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 900 mA | 900mA | Shielded | 51mOhm Max | - | 34MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.265" L x 0.175" W (6.73mm x 4.45mm) | 0.110" (2.79mm) |
|
|
P1174.683NLTFIXED IND 68UH 320MA 370MOHM SMD |
3,148 |
|
Datasheet |
P1174NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 320 mA | 320mA | Shielded | 370mOhm Max | - | 11MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.265" L x 0.175" W (6.73mm x 4.45mm) | 0.110" (2.79mm) |
|
|
P1174.333NLTFIXED IND 33UH 400MA 188MOHM SMD |
1,438 |
|
Datasheet |
P1174NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 400 mA | 400mA | Shielded | 188mOhm Max | - | 16MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.265" L x 0.175" W (6.73mm x 4.45mm) | 0.110" (2.79mm) |
|
|
P1174.472NLTFIXED IND 4.7UH 1A 30 MOHM SMD |
4,743 |
|
Datasheet |
P1174NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 1 A | 1A | Shielded | 30mOhm Max | - | 40MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.265" L x 0.175" W (6.73mm x 4.45mm) | 0.110" (2.79mm) |
|

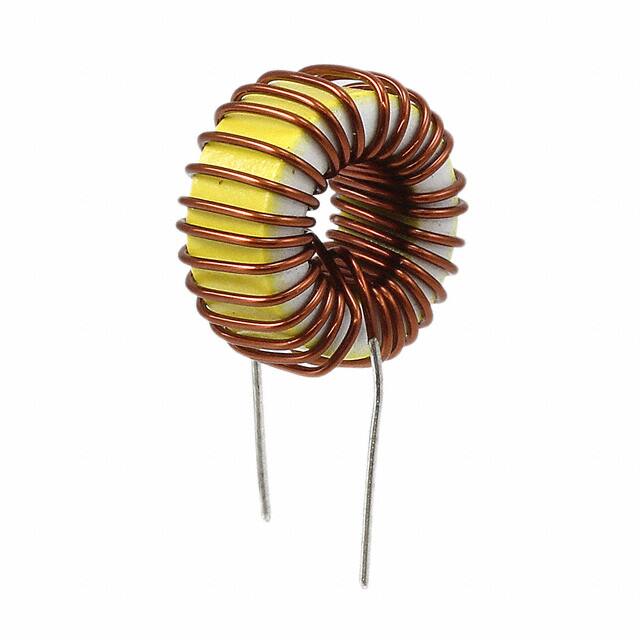

DPO-3.0-22FIXED IND 22UH 3A 50 MOHM TH |
2,405 |
|
Datasheet |
DP | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 22 µH | - | 3 A | - | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.551" Dia x 0.315" W (14.00mm x 8.00mm) | - |
|
SBC7-151-172FIXED IND 150UH 1.7A 160 MOHM TH |
4,793 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 1.7 A | 2.9A | Unshielded | 160mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.551" (14.00mm) |
|
|
SBC7-470-282FIXED IND 47UH 2.8A 60 MOHM TH |
3,752 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 2.8 A | 5.2A | Unshielded | 60mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.551" (14.00mm) |
|
|
SBC7-471-851FIXED IND 470UH 850MA 550MOHM TH |
3,382 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 850 mA | 1.6A | Unshielded | 550mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.551" (14.00mm) |
|
|
CC0402-0024JCERAMIC SMT CHIP INDUCTOR |
4,654 |
|
Datasheet |
CC0402 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic | 2.4 nH | ±5% | 480 mA | - | Unshielded | 120mOhm Max | 16 @ 250MHz | 6GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.047" L x 0.026" W (1.19mm x 0.66mm) | 0.028" (0.70mm) |
