Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AVR-1Z090509SR24LTFIXED IND 240NH 33 A 0.12 MOHM |
4,847 |
|
Datasheet |
AVR-1Z090509S | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 240 nH | ±15% | 63 A | 30A | Unshielded | 0.125mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.354" L x 0.197" W (9.00mm x 5.00mm) | 0.378" (9.60mm) |
|
|
PA0513.261NLTFIXED IND 260NH 45A 0.32MOHM SMD |
1,209 |
|
Datasheet |
PA0513NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 260 nH | ±20% | 45 A | 60A | Shielded | 0.32mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.530" L x 0.510" W (13.46mm x 12.95mm) | 0.315" (8.00mm) |
|
|
P0460NLTFIXED IND 34UH 1A 104 MOHM SMD |
2,504 |
|
Datasheet |
Ros 2 | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | - | 34 µH | ±15% | 1 A | - | Shielded | 104mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.545" L x 0.390" W (13.84mm x 9.91mm) | 0.215" (5.46mm) |
|
|
P0466NLTFIXED IND 254UH 350MA 784MOHM SM |
3,892 |
|
Datasheet |
Ros 2 | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | - | 254 µH | ±15% | 350 mA | - | Shielded | 784mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.545" L x 0.390" W (13.84mm x 9.91mm) | 0.215" (5.46mm) |
|

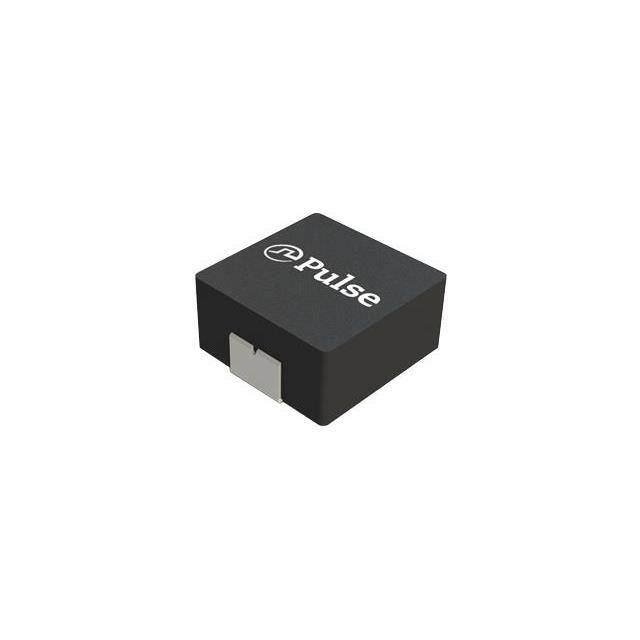

PA4346.561ANLTIND POWDER MOLDED 13.5X12.6X4.7 |
2,951 |
|
Datasheet |
PA4346.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 560 nH | ±20% | 32.5 A | 50A | Shielded | 1.3mOhm Max | - | 57MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.197" (5.00mm) |
|
|
PA4346.122ANLTIND POWDER MOLDED 13.5X12.6X4.7 |
2,079 |
|
Datasheet |
PA4346.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.2 µH | ±20% | 24 A | 30A | Shielded | 2.8mOhm Max | - | 31MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.197" (5.00mm) |
|
|
PA4346.501ANLTIND POWDER MOLDED 13.5X12.6X4.7 |
4,543 |
|
Datasheet |
PA4346.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 500 nH | ±20% | 33 A | 55A | Shielded | 1.1mOhm Max | - | 60MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.197" (5.00mm) |
|
|
PA4346.331ANLTIND POWDER MOLDED 13.5X12.6X4.7 |
3,479 |
|
Datasheet |
PA4346.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 37 A | 59A | Shielded | 0.8mOhm Max | - | 90MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.197" (5.00mm) |
|
|
PA4346.361ANLTIND POWDER MOLDED 13.5X12.6X4.7 |
2,766 |
|
Datasheet |
PA4346.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 360 nH | ±20% | 36 A | 59A | Shielded | 0.84mOhm Max | - | 72MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.197" (5.00mm) |
|
|
PA4346.182ANLTIND POWDER MOLDED 13.5X12.6X4.7 |
2,395 |
|
Datasheet |
PA4346.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.8 µH | ±20% | 19 A | 25A | Shielded | 4.3mOhm Max | - | 26MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.197" (5.00mm) |
|
|
PA4346.562ANLTIND POWDER MOLDED 13.5X12.6X4.7 |
2,675 |
|
Datasheet |
PA4346.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 5.6 µH | ±20% | 12 A | 15.5A | Shielded | 12mOhm Max | - | 12MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.197" (5.00mm) |
|
|
PA4346.391ANLTIND POWDER MOLDED 13.5X12.6X4.7 |
1,193 |
|
Datasheet |
PA4346.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 390 nH | ±20% | 35 A | 58A | Shielded | 0.87mOhm Max | - | 72MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.197" (5.00mm) |
|
|
PA4346.602ANLTIND POWDER MOLDED 13.5X12.6X4.7 |
4,939 |
|
Datasheet |
PA4346.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6 µH | ±20% | 11.5 A | 15.2A | Shielded | 15mOhm Max | - | 11.5MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.197" (5.00mm) |
|
IMC1812BN151JFIXED IND 150UH 105MA 9 OHM SMD |
4,116 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Bulk | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±5% | 105 mA | - | Unshielded | 9Ohm Max | 40 @ 790kHz | 5MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812BN181JFIXED IND 180UH 102MA 9.5OHM SMD |
4,763 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Bulk | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±5% | 102 mA | - | Unshielded | 9.5Ohm Max | 40 @ 790kHz | 5MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812BN221JFIXED IND 220UH 100MA 10 OHM SMD |
2,470 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Bulk | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±5% | 100 mA | - | Unshielded | 10Ohm Max | 40 @ 790kHz | 4MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812BN271JFIXED IND 270UH 92MA 12 OHM SMD |
1,062 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Bulk | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±5% | 92 mA | - | Unshielded | 12Ohm Max | 40 @ 790kHz | 4MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812BN331JFIXED IND 330UH 85MA 14 OHM SMD |
4,898 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±5% | 85 mA | - | Unshielded | 14Ohm Max | 40 @ 790kHz | 3.5MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812EB151JFIXED IND 150UH 105MA 9 OHM SMD |
4,306 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Bulk | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±5% | 105 mA | - | Unshielded | 9Ohm Max | 40 @ 790kHz | 5MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812EB181JFIXED IND 180UH 102MA 9.5OHM SMD |
1,837 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Bulk | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±5% | 102 mA | - | Unshielded | 9.5Ohm Max | 40 @ 790kHz | 5MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
