Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

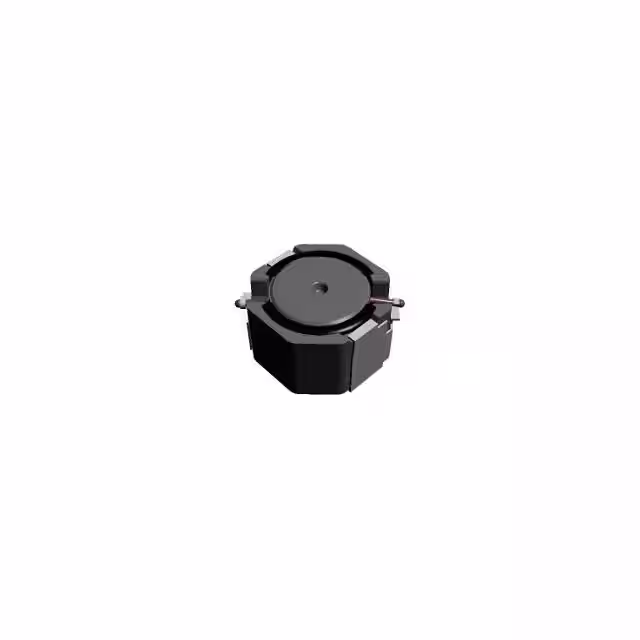

LAYPH10060DL331MGAFIXED IND 330UH 750MA 550MOHM SM |
3,384 |
|
Datasheet |
LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 330 µH | ±20% | 580 mA | 750mA | Shielded | 458mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
ATCA-02-220M-HFIXED IND 22UH 5A 14 MOHM TH |
3,401 |
|
Datasheet |
ATCA | Radial, Horizontal (Open) | Tray | Active | Toroidal | Iron Powder | 22 µH | ±20% | 5 A | - | Unshielded | 14mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.866" Dia (22.00mm) | 0.492" (12.50mm) |
|
|
ATCA-02-290M-HFIXED IND 29UH 4A 20 MOHM TH |
1,856 |
|
Datasheet |
ATCA | Radial, Horizontal (Open) | Tray | Active | Toroidal | Iron Powder | 29 µH | ±20% | 4 A | - | Unshielded | 20mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.866" Dia (22.00mm) | 0.492" (12.50mm) |
|
ATCA-02-220M-VFIXED IND 22UH 5A 14 MOHM TH |
2,075 |
|
Datasheet |
ATCA | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 22 µH | ±20% | 5 A | - | Unshielded | 14mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.866" L x 0.492" W (22.00mm x 12.50mm) | - |
|
FP1007R2B-R22-RFIXED INDUCTOR 215NH 50A |
3,807 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | 215 nH | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
UP0.4C-1R0-RFIXED IND 1UH 2.88A 30 MOHM SMD |
3,813 |
|
Datasheet |
UNI-PAC™ 0.4C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 2.88 A | 3.33A | Unshielded | 30mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
UP0.4C-3R3-RFIXED IND 3.3UH 1.89A 60MOHM SMD |
2,645 |
|
Datasheet |
UNI-PAC™ 0.4C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.89 A | 2A | Unshielded | 60mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
PM127SH-1R2N-RCFIXED IND 1.2UH 9.8A 18 MOHM SMD |
4,788 |
|
Datasheet |
PM127SH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | -20%, +40% | 9.8 A | 9.8A | Shielded | 18mOhm Max | 28 @ 7.96MHz | 83MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
PM127SH-390M-RCFIXED IND 39UH 3.2A 70 MOHM SMD |
3,002 |
|
Datasheet |
PM127SH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±20% | 3.2 A | 3.1A | Shielded | 70mOhm Max | 24 @ 2.52MHz | 8.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
PM127SH-3R5N-RCFIXED IND 3.5UH 8.8A 12 MOHM SMD |
3,646 |
|
Datasheet |
PM127SH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.5 µH | -20%, +40% | 8.8 A | 9.8A | Shielded | 12mOhm Max | 20 @ 7.96MHz | 36MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
PM127SH-7R6N-RCFIXED IND 7.6UH 5.9A 20 MOHM SMD |
4,227 |
|
Datasheet |
PM127SH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 7.6 µH | -20%, +40% | 5.9 A | 6.5A | Shielded | 20mOhm Max | 15 @ 7.96MHz | 21MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
UP0.4C-270-RFIXED IND 27UH 690MA 480MOHM SMD |
1,196 |
|
Datasheet |
UNI-PAC™ 0.4C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 690 mA | 680mA | Unshielded | 480mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
UP0.4C-390-RFIXED IND 39UH 590MA 650MOHM SMD |
4,298 |
|
Datasheet |
UNI-PAC™ 0.4C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±20% | 590 mA | 570mA | Unshielded | 650mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
UP0.4C-680-RFIXED IND 68UH 450MA 1.1 OHM SMD |
4,906 |
|
Datasheet |
UNI-PAC™ 0.4C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 450 mA | 430mA | Unshielded | 1.1Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
SC75B-101FIXED IND 100UH 900MA 430MOHM SM |
2,634 |
|
Datasheet |
SC75B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 900 mA | 720mA | Unshielded | 430mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.217" (5.50mm) |
|
|
SC75B-120FIXED IND 12UH 3A 80 MOHM SMD |
1,454 |
|
Datasheet |
SC75B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 12 µH | ±20% | 3 A | 2A | Unshielded | 80mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.217" (5.50mm) |
|
|
SC75B-121FIXED IND 120UH 860MA 470MOHM SM |
2,370 |
|
Datasheet |
SC75B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 120 µH | ±20% | 860 mA | 660mA | Unshielded | 470mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.217" (5.50mm) |
|
|
SC75B-150FIXED IND 15UH 2.75A 90 MOHM SMD |
2,487 |
|
Datasheet |
SC75B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 2.75 A | 1.8A | Unshielded | 90mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.217" (5.50mm) |
|
|
SC75B-151FIXED IND 150UH 800MA 640MOHM SM |
4,326 |
|
Datasheet |
SC75B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±20% | 800 mA | 580mA | Unshielded | 640mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.217" (5.50mm) |
|
|
SC75B-180FIXED IND 18UH 2.4A 100 MOHM SMD |
1,168 |
|
Datasheet |
SC75B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 18 µH | ±20% | 2.4 A | 1.6A | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.217" (5.50mm) |
