Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASPI-F7050-5R6M-TIND 5.6UH 7A 17.2M |
2,133 |
|
Datasheet |
ASPI-F7050 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 5.6 µH | ±20% | 7 A | 14A | Shielded | 17.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.201" (5.10mm) |
|
|
ASPI-F7050-3R3M-TIND 3.3UH 13A 11.4M |
4,958 |
|
Datasheet |
ASPI-F7050 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 3.3 µH | ±20% | 13 A | 14A | Shielded | 11.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.201" (5.10mm) |
|
BMNI00060632R15MXHINDUCTOR POWER |
1,389 |
|
Datasheet |
BMNI | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 150 nH | ±20% | 33.3 A | 45A | Shielded | 1.49mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.258" L x 0.250" W (6.56mm x 6.36mm) | 0.126" (3.20mm) |
|
|
BMNI00060632R47MXHINDUCTOR POWER |
3,074 |
|
Datasheet |
BMNI | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 22.3 A | 28A | Shielded | 3.31mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.258" L x 0.250" W (6.56mm x 6.36mm) | 0.126" (3.20mm) |
|
|
BMNI00060632R28MXHINDUCTOR POWER |
2,205 |
|
Datasheet |
BMNI | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 280 nH | ±20% | 26.7 A | 38A | Shielded | 2.35mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.258" L x 0.250" W (6.56mm x 6.36mm) | 0.126" (3.20mm) |
|
|
BMNI000606321R0MXHINDUCTOR POWER |
4,801 |
|
Datasheet |
BMNI | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 16 A | 18A | Shielded | 6.95mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.258" L x 0.250" W (6.56mm x 6.36mm) | 0.126" (3.20mm) |
|
|
BMNI00060632R82MXHINDUCTOR POWER |
4,390 |
|
Datasheet |
BMNI | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 820 nH | ±20% | 16 A | 21A | Shielded | 5.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.258" L x 0.250" W (6.56mm x 6.36mm) | 0.126" (3.20mm) |
|
|
SRP1265CC-R22MIND SMD 0.22UH 55A |
2,550 |
|
Datasheet |
SRP1265CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 220 nH | ±20% | 55 A | 105A | Shielded | 0.6mOhm Max | - | 130MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.256" (6.50mm) |
|
SC5040FH-101FIXED IND 100UH 3.2A 115MOHM SMD |
2,580 |
|
Datasheet |
SC5040FH | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 100 µH | ±30% | 3.2 A | 5.6A | Unshielded | 115mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.484" (12.30mm) |
|
|
SC5040FH-142FIXED IND 1.4MH 700MA 1.59OHM SM |
4,250 |
|
Datasheet |
SC5040FH | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.4 mH | ±30% | 700 mA | 1.5A | Unshielded | 1.59Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.484" (12.30mm) |
|
|
SC5040FH-331FIXED IND 330UH 1.8A 325MOHM SMD |
4,511 |
|
Datasheet |
SC5040FH | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 330 µH | ±30% | 1.8 A | 3A | Unshielded | 325mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.484" (12.30mm) |
|
|
SC5040FH-681FIXED IND 680UH 1.1A 780MOHM SMD |
4,803 |
|
Datasheet |
SC5040FH | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 680 µH | ±30% | 1.1 A | 2A | Unshielded | 780mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.484" (12.30mm) |
|
LAYPH10060DL100MGAFIXED IND 10UH 4.3A 26 MOHM SMD |
1,485 |
|
Datasheet |
LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 3 A | 4.3A | Shielded | 22mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
LAYPH10060DL150MGAFIXED IND 15UH 3.6A 37 MOHM SMD |
4,015 |
|
Datasheet |
LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 2.5 A | 3.7A | Shielded | 31mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
LAYPH10060DL151MGAFIXED IND 150UH 1.2A 295MOHM SMD |
2,619 |
|
Datasheet |
LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 150 µH | ±20% | 720 mA | 1.2A | Shielded | 246mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|

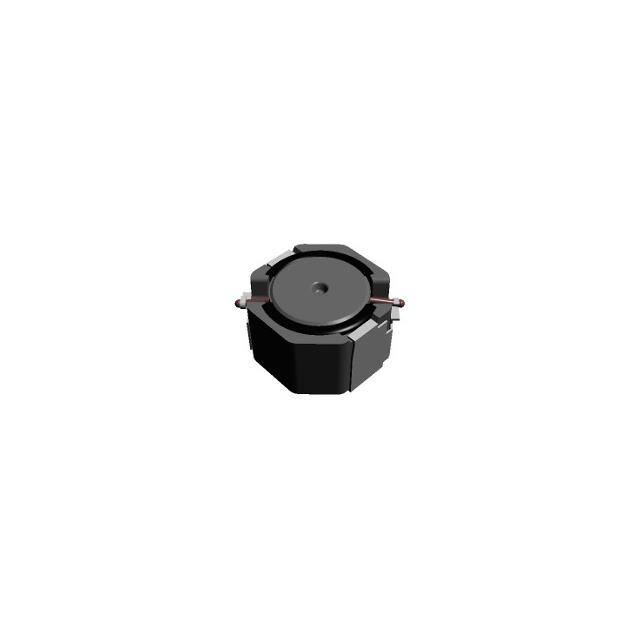

LAYPH10060DL1R5NGAFIXED IND 1.5UH 8A 7 MOHM SMD |
4,053 |
|
Datasheet |
LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±30% | 5.6 A | 9A | Shielded | 5.6mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
LAYPH10060DL6R8NGAFIXED IND 6.8UH 5A 21 MOHM SMD |
3,407 |
|
Datasheet |
LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±30% | 3.5 A | 5.5A | Shielded | 16mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
LAYPH10060DL1R0NGAFIXED IND 1UH 9A 6 MOHM SMD |
3,876 |
|
Datasheet |
LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±30% | 6 A | 9.7A | Shielded | 4.5mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
LAYPH10060DL2R2NGAFIXED IND 2.2UH 7.5A 9 MOHM SMD |
4,160 |
|
Datasheet |
LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±30% | 5.2 A | 7.5A | Shielded | 6.6mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
LAYPH10060DL471MGAFIXED IND 470UH 650MA 930MOHM SM |
4,173 |
|
Datasheet |
LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 470 µH | ±20% | 390 mA | 650mA | Shielded | 775mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
