Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82432A1153K000FIXED IND 15UH 280MA 1.25OHM SMD |
2,035 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 280 mA | - | Unshielded | 1.25Ohm Max | 45 @ 2.52MHz | 17MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|
|
B82432A1154K000FIXED IND 150UH 130MA 6.1OHM SMD |
2,423 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 130 mA | - | Unshielded | 6.1Ohm Max | 35 @ 796kHz | 5.5MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|
|
B82432A1222K000FIXED IND 2.2UH 480MA 430MOHM SM |
1,009 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 480 mA | - | Unshielded | 430mOhm Max | 30 @ 7.96MHz | 190MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|
|
B82432A1223K000FIXED IND 22UH 260MA 1.45OHM SMD |
4,776 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 260 mA | - | Unshielded | 1.45Ohm Max | 45 @ 2.52MHz | 13MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|
|
B82432A1224K000FIXED IND 220UH 115MA 7.5OHM SMD |
3,855 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 115 mA | - | Unshielded | 7.5Ohm Max | 30 @ 796kHz | 4.6MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|
|
B82432A1332K000FIXED IND 3.3UH 425MA 550MOHM SM |
3,947 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 425 mA | - | Unshielded | 550mOhm Max | 30 @ 7.96MHz | 155MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|
|
B82432A1333K000FIXED IND 33UH 230MA 1.85OHM SMD |
3,170 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 230 mA | - | Unshielded | 1.85Ohm Max | 45 @ 2.52MHz | 10.5MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|
|
B82432A1334K000FIXED IND 330UH 85MA 14.1OHM SMD |
3,011 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 85 mA | - | Unshielded | 14.1Ohm Max | 30 @ 796kHz | 4.1MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|
|
B82432A1472K000FIXED IND 4.7UH 390MA 650MOHM SM |
4,543 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 390 mA | - | Unshielded | 650mOhm Max | 30 @ 7.96MHz | 110MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|
|
B82432A1473K000FIXED IND 47UH 210MA 2.3 OHM SMD |
4,685 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 210 mA | - | Unshielded | 2.3Ohm Max | 40 @ 2.52MHz | 9.5MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|
B1135AS-1R0N=P3FIXED IND 1UH 8.5A 9.6 MOHM SMD |
4,796 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 8.5 A | 7.8A | Shielded | 9.6mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2-SMD | 0.331" L x 0.327" W (8.40mm x 8.30mm) | 0.197" (5.00mm) |
|
|
B1135AS-1R5N=P3FIXED IND 1.5UH 7.6A 11 MOHM SMD |
4,923 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 7.6 A | 6.3A | Shielded | 11mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2-SMD | 0.331" L x 0.327" W (8.40mm x 8.30mm) | 0.197" (5.00mm) |
|
|
B1135AS-2R2N=P3FIXED IND 2.2UH 7.3A 13 MOHM SMD |
1,231 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 7.3 A | 5.5A | Shielded | 13mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2-SMD | 0.331" L x 0.327" W (8.40mm x 8.30mm) | 0.197" (5.00mm) |
|
|
B1135AS-3R6N=P3FIXED IND 3.6UH 5.5A 17 MOHM SMD |
2,384 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.6 µH | ±30% | 5.5 A | 4.2A | Shielded | 17mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2-SMD | 0.331" L x 0.327" W (8.40mm x 8.30mm) | 0.197" (5.00mm) |
|
|
B1135AS-220M=P3FIXED IND 22UH 2.3A 84 MOHM SMD |
3,230 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.3 A | 1.7A | Shielded | 84mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2-SMD | 0.331" L x 0.327" W (8.40mm x 8.30mm) | 0.197" (5.00mm) |
|
|
B1135AS-330M=P3FIXED IND 33UH 1.9A 110 MOHM SMD |
3,996 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.9 A | 1.4A | Shielded | 110mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2-SMD | 0.331" L x 0.327" W (8.40mm x 8.30mm) | 0.197" (5.00mm) |
|
|
B1135AS-470M=P3FIXED IND 47UH 1.6A 150 MOHM SMD |
1,291 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.6 A | 1.2A | Shielded | 150mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2-SMD | 0.331" L x 0.327" W (8.40mm x 8.30mm) | 0.197" (5.00mm) |
|
|
B1135AS-680M=P3FIXED IND 68UH 1.3A 235 MOHM SMD |
1,466 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.3 A | 970mA | Shielded | 235mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2-SMD | 0.331" L x 0.327" W (8.40mm x 8.30mm) | 0.197" (5.00mm) |
|

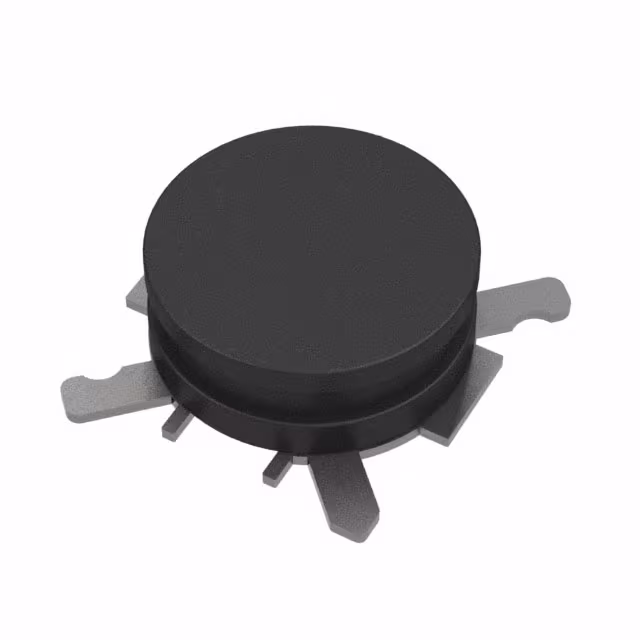

ASPI-5619-470 (4K/REEL)FIXED IND 47UH 650MA 703MOHM SMD |
2,460 |
|
Datasheet |
ASPI-5619 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 47 µH | ±20% | 650 mA | 810mA | Unshielded | 703mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.220" L x 0.220" W (5.60mm x 5.60mm) | 0.075" (1.90mm) |
|
SPQ104-102MSMD POWER INDUCTOR |
2,903 |
|
- |
SPQ104 | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
