Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IMC1812ES470KFIXED IND 47UH 140MA 5 OHM SMD |
2,952 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 47 µH | ±10% | 140 mA | - | Unshielded | 5Ohm Max | 50 @ 2.52MHz | 10MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
CDRH2D11NP-2R2NCFIXED IND 2.2UH 1.27A 98MOHM SMD |
2,343 |
|
Datasheet |
CDRH2D11 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±30% | 1.27 A | 780mA | Shielded | 98mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.043" (1.10mm) |
|

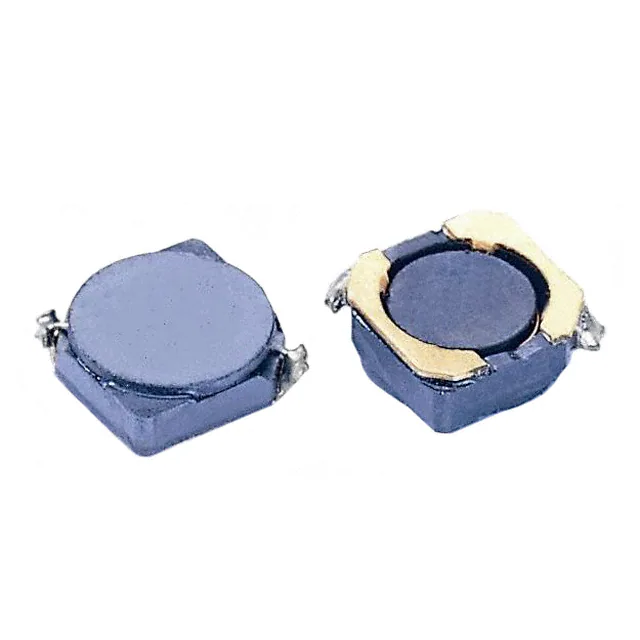

SCRH5D18-100FIXED IND 10UH 1.41A 124MOHM SMD |
1,862 |
|
Datasheet |
SCRH5D18 | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±30% | 1.41 A | 1.2A | Shielded | 124mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.079" (2.00mm) |
|
|
SCRH5D18-220FIXED IND 22UH 1A 290 MOHM SMD |
1,279 |
|
Datasheet |
SCRH5D18 | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±30% | 1 A | 800mA | Shielded | 290mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.079" (2.00mm) |
|
ASPI-0530HI-1R5M-T2FIXED IND 1.5UH 6A 25 MOHM SMD |
3,810 |
|
Datasheet |
ASPI-0530HI | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 1.5 µH | ±20% | 6 A | 10A | Shielded | 25mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.220" L x 0.205" W (5.60mm x 5.20mm) | 0.118" (3.00mm) |
|
CLF7045T-100MFIXED IND 10UH 2.5A 45.6MOHM SMD |
2,213 |
|
Datasheet |
CLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.5 A | 2.7A | Shielded | 45.6mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.189" (4.80mm) |
|
|
CLF7045T-150MFIXED IND 15UH 2.1A 61.2MOHM SMD |
2,634 |
|
Datasheet |
CLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.1 A | 2.3A | Shielded | 61.2mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.189" (4.80mm) |
|
|
CLF7045T-1R5NFIXED IND 1.5UH 4.9A 14.3MOHM SM |
1,534 |
|
Datasheet |
CLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 4.9 A | 7.3A | Shielded | 14.3mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.189" (4.80mm) |
|
|
CLF7045T-220MFIXED IND 22UH 1.8A 82.8MOHM SMD |
2,767 |
|
Datasheet |
CLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.8 A | 1.9A | Shielded | 82.8mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.189" (4.80mm) |
|
|
CLF7045T-2R2NFIXED IND 2.2UH 4.3A 18.98 MOHM |
4,233 |
|
Datasheet |
CLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 4.3 A | 5.5A | Shielded | 18.98mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.189" (4.80mm) |
|
|
CLF7045T-3R3NFIXED IND 3.3UH 4.1A 21.32 MOHM |
3,866 |
|
Datasheet |
CLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 4.1 A | 5A | Shielded | 21.32mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.189" (4.80mm) |
|
|
CLF7045T-4R7NFIXED IND 4.7UH 3.6A 26 MOHM SMD |
1,629 |
|
Datasheet |
CLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 3.6 A | 4.1A | Shielded | 26mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.189" (4.80mm) |
|
|
CLF7045T-6R8NFIXED IND 6.8UH 3A 35.1 MOHM SMD |
3,548 |
|
Datasheet |
CLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 3 A | 3.3A | Shielded | 35.1mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.189" (4.80mm) |
|
|
CLF7045T-470MFIXED IND 47UH 1.2A 180 MOHM SMD |
3,856 |
|
Datasheet |
CLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.2 A | 1.3A | Shielded | 180mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.189" (4.80mm) |
|
|
CLF7045T-680MFIXED IND 68UH 950MA 252MOHM SMD |
3,636 |
|
Datasheet |
CLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 950 mA | 1.1A | Shielded | 252mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.189" (4.80mm) |
|
|
CLF7045T-101MFIXED IND 100UH 750MA 396MOHM SM |
1,612 |
|
Datasheet |
CLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 750 mA | 900mA | Shielded | 396mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.189" (4.80mm) |
|
|
CLF7045T-151MFIXED IND 150UH 610MA 576MOHM SM |
4,152 |
|
Datasheet |
CLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 610 mA | 670mA | Shielded | 576mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.189" (4.80mm) |
|
|
CLF7045T-221MFIXED IND 220UH 520MA 792MOHM SM |
2,927 |
|
Datasheet |
CLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 520 mA | 620mA | Shielded | 792mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.189" (4.80mm) |
|
CDRH4D15/SNP-2R2NCFIXED IND 2.2UH 2.6A 60 MOHM SMD |
1,176 |
|
Datasheet |
CDRH4D15/S | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 2.2 µH | ±30% | 2.6 A | 2A | Shielded | 60mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.173" W (4.40mm x 4.40mm) | 0.067" (1.70mm) |
|

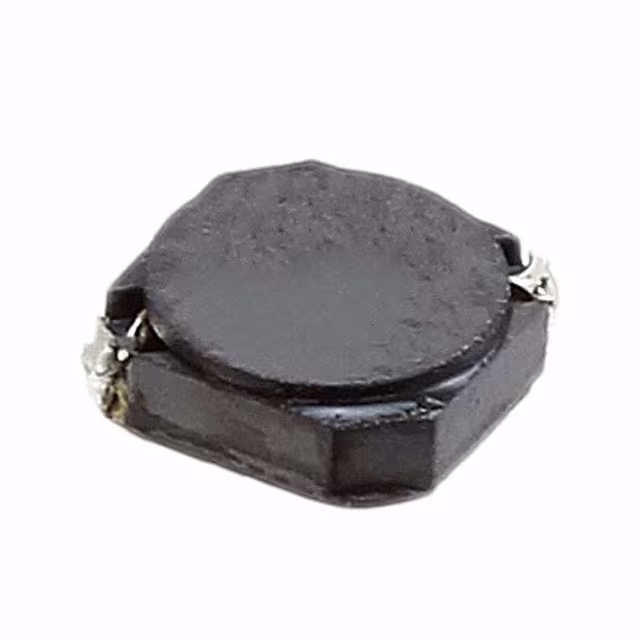

CDRH4D15/SNP-4R7NCFIXED IND 4.7UH 1.5A 129MOHM SMD |
4,101 |
|
Datasheet |
CDRH4D15/S | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 4.7 µH | ±30% | 1.5 A | 1.4A | Shielded | 129mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.173" W (4.40mm x 4.40mm) | 0.067" (1.70mm) |
