Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCIHP0718-100MFIXED IND 10UH 2A 195 MOHM SMD |
3,676 |
|
Datasheet |
SCIHP0718 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 2 A | 4A | Shielded | 195mOhm | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.071" (1.80mm) |
|
SRP1265CC-R68MIND SMD 0.68UH 41A |
1,038 |
|
Datasheet |
SRP1265CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 680 nH | ±20% | 41 A | 58A | Shielded | 1.5mOhm Max | - | 50MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.256" (6.50mm) |
|
ATCA-01-200M-HFIXED IND 20UH 3A 21 MOHM TH |
1,163 |
|
Datasheet |
ATCA | Radial, Horizontal (Open) | Tray | Active | Toroidal | Iron Powder | 20 µH | ±20% | 3 A | - | Unshielded | 21mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.709" Dia (18.00mm) | 0.453" (11.50mm) |
|
ATCA-01-200M-VFIXED IND 20UH 3A 21 MOHM TH |
1,703 |
|
Datasheet |
ATCA | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 20 µH | ±20% | 3 A | - | Unshielded | 21mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.709" L x 0.453" W (18.00mm x 11.50mm) | - |
|
CDRH5D18-4R1NCFIXED IND 4.1UH 1.95A 57MOHM SMD |
4,025 |
|
Datasheet |
CDRH5D18 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 4.1 µH | ±30% | 1.95 A | - | Shielded | 57mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.079" (2.00mm) |
|
|
CDRH5D18-100NCFIXED IND 10UH 1.2A 124 MOHM SMD |
2,018 |
|
Datasheet |
CDRH5D18 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 10 µH | ±30% | 1.2 A | - | Shielded | 124mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.079" (2.00mm) |
.jpg)
|
B82422H1332K100FIXED IND 3.3UH 500MA 420MOHM SM |
1,017 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 500 mA | - | Unshielded | 420mOhm Max | 10 @ 2.52MHz | 60MHz | AEC-Q200 | -55°C ~ 150°C | 7.96 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
|
B82422H1333K100FIXED IND 33UH 180MA 3.3 OHM SMD |
2,028 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 180 mA | - | Unshielded | 3.3Ohm Max | 15 @ 2.52MHz | 17MHz | AEC-Q200 | -55°C ~ 150°C | 2.52 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
|
CDRH5D18-220NCFIXED IND 22UH 800MA 290MOHM SMD |
2,092 |
|
Datasheet |
CDRH5D18 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 22 µH | ±30% | 800 mA | - | Shielded | 290mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.079" (2.00mm) |
|

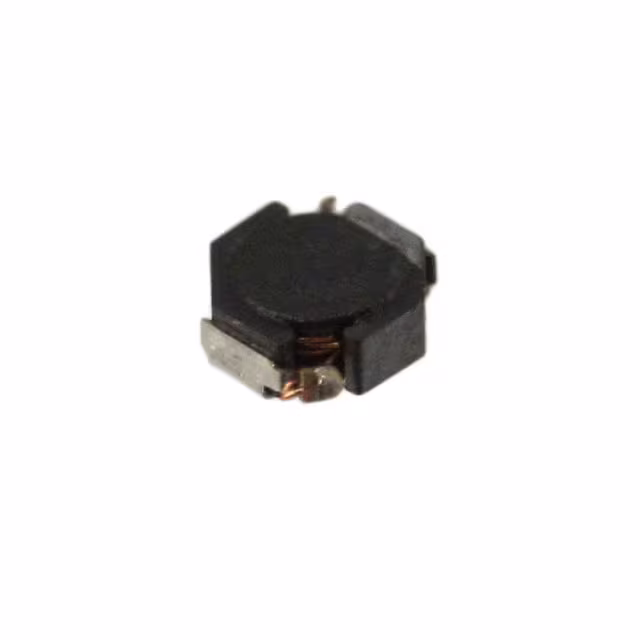

VLF3014AT-100MR59FIXED IND 10UH 590MA 460MOHM SMD |
3,376 |
|
Datasheet |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 590 mA | 800mA | Shielded | 460mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.110" L x 0.102" W (2.80mm x 2.60mm) | 0.055" (1.40mm) |
|
|
VLF3014AT-220MR37FIXED IND 22UH 370MA 1.2 OHM SMD |
1,604 |
|
Datasheet |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 370 mA | 520mA | Shielded | 1.2Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.110" L x 0.102" W (2.80mm x 2.60mm) | 0.055" (1.40mm) |
|
|
VLF3014AT-2R2M1R2FIXED IND 2.2UH 1.2A 100MOHM SMD |
4,891 |
|
Datasheet |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.2 A | 1.7A | Shielded | 100mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.110" L x 0.102" W (2.80mm x 2.60mm) | 0.055" (1.40mm) |
|
|
VLF3014AT-3R3M1R0FIXED IND 3.3UH 1A 150 MOHM SMD |
2,645 |
|
Datasheet |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1 A | 1.3A | Shielded | 150mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.110" L x 0.102" W (2.80mm x 2.60mm) | 0.055" (1.40mm) |
|
|
VLF3014AT-4R7MR90FIXED IND 4.7UH 900MA 200MOHM SM |
1,551 |
|
Datasheet |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 900 mA | 1.2A | Shielded | 200mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.110" L x 0.102" W (2.80mm x 2.60mm) | 0.055" (1.40mm) |
|
|
VLF3014AT-6R8MR72FIXED IND 6.8UH 720MA 310MOHM SM |
2,820 |
|
Datasheet |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 720 mA | 1A | Shielded | 310mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.110" L x 0.102" W (2.80mm x 2.60mm) | 0.055" (1.40mm) |
|
SRR0805-681KFIXED IND 680UH 170MA 3.4OHM SMD |
4,449 |
|
Datasheet |
SRR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 170 mA | 320mA | Shielded | 3.4Ohm Max | 32 @ 796kHz | 2.8MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.185" (4.70mm) |
|
SDR1030-2R7MFIXED IND 2.7UH 3A 28 MOHM SMD |
4,787 |
|
Datasheet |
SDR1030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±20% | 3 A | 4.2A | Unshielded | 28mOhm Max | 13 @ 7.96MHz | 73.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.130" (3.30mm) |
|
IMC1210ER120KFIXED IND 12UH 173MA 2.5 OHM SMD |
1,588 |
|
Datasheet |
IMC-1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 12 µH | ±10% | 173 mA | - | Unshielded | 2.5Ohm Max | 30 @ 2.52MHz | 30MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|
|
IMC1210ER680KFIXED IND 68UH 83MA 11 OHM SMD |
4,581 |
|
Datasheet |
IMC-1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 68 µH | ±10% | 83 mA | - | Unshielded | 11Ohm Max | 30 @ 2.52MHz | 11MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|
IMC1812ES150KFIXED IND 15UH 200MA 2.5 OHM SMD |
1,139 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 15 µH | ±10% | 200 mA | - | Unshielded | 2.5Ohm Max | 50 @ 2.52MHz | 17MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
