Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

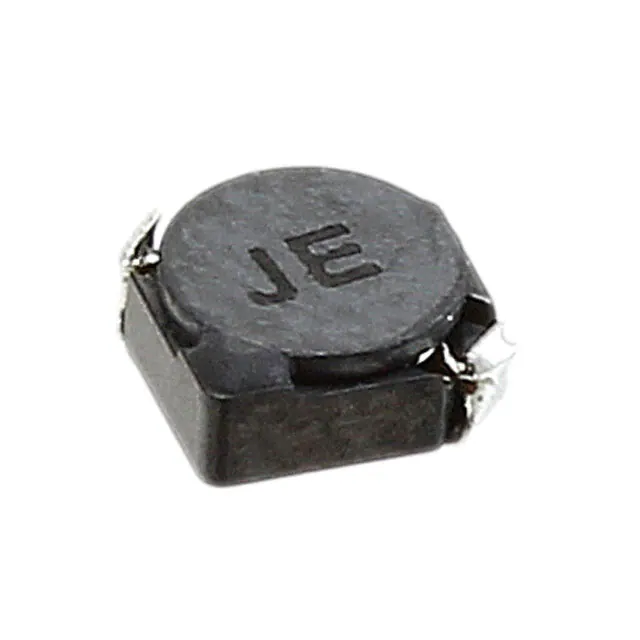

CDRH3D16/HPNP-6R8NCFIXED IND 6.8UH 1.1A 180MOHM SMD |
3,751 |
|
Datasheet |
CDRH3D16/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±30% | 1.1 A | 1A | Shielded | 180mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|
CDRH3D28/LDNP-221NCFIXED IND 220UH 360MA 1.27OHM SM |
4,245 |
|
Datasheet |
CDRH3D28/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 µH | ±30% | 360 mA | 116mA | Shielded | 1.27Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.118" (3.00mm) |
|
CDRH3D28NP-220NCFIXED IND 22UH 740MA 335MOHM SMD |
4,971 |
|
Datasheet |
CDRH3D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±30% | 740 mA | 760mA | Shielded | 335mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.118" (3.00mm) |
|
CDRH3D16/HPNP-150MCFIXED IND 15UH 750MA 410MOHM SMD |
3,120 |
|
Datasheet |
CDRH3D16/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 750 mA | 650mA | Shielded | 410mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|
|
CDRH3D16/HPNP-220MCFIXED IND 22UH 520MA 610MOHM SMD |
3,690 |
|
Datasheet |
CDRH3D16/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 520 mA | 550mA | Shielded | 610mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|
|
CDRH3D28/LDNP-120NCFIXED IND 12UH 1.48A 100MOHM SMD |
4,090 |
|
Datasheet |
CDRH3D28/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 12 µH | ±30% | 1.48 A | 450mA | Shielded | 100mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.118" (3.00mm) |
|
LTF5022T-6R8N1R6-LCFIXED IND 6.8UH 2.1A 110MOHM SMD |
4,379 |
|
Datasheet |
LTF5022T | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 2.1 A | 1.6A | Shielded | 110mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.197" W (5.20mm x 5.00mm) | 0.087" (2.20mm) |
|
|
LTF5022T-101MR45-LCFIXED IND 100UH 530MA 1.28OHM SM |
4,627 |
|
Datasheet |
LTF5022T | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 530 mA | 450mA | Shielded | 1.28Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.197" W (5.20mm x 5.00mm) | 0.087" (2.20mm) |
|
6001CFIXED INDUCTOR ZXRD SMD |
4,996 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

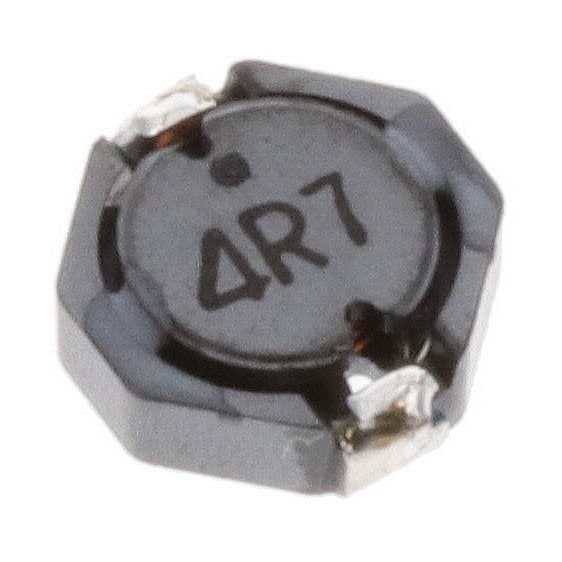

#A914BYW-4R7M=P3FIXED IND 4.7UH 1.22A 87MOHM SMD |
2,101 |
|
Datasheet |
D52LC | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | - | 4.7 µH | ±20% | 1.22 A | 1.14A | Shielded | 87mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|

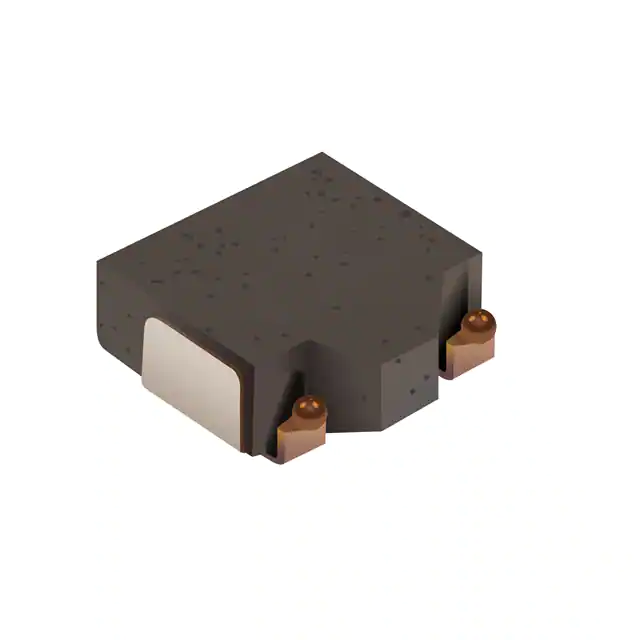

SRP0315-1R5KFIXED IND 1.5UH 4.1A 48 MOHM SMD |
2,519 |
|
Datasheet |
SRP0315 | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 1.5 µH | ±10% | 4.1 A | 4.4A | Shielded | 48mOhm Max | 14 @ 7.96MHz | 46MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.134" L x 0.122" W (3.40mm x 3.10mm) | 0.059" (1.50mm) |
|
|
VCTB16081T-R47MS2IND SMD 0.47UH AUTO GRADE CHOKE |
1,290 |
|
Datasheet |
VCTB16081T | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 470 nH | ±20% | 3 A | 3A | Unshielded | 68mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
APO453235NV-180M18 UH FIXED IND 800MA160MOHM |
1,893 |
|
- |
APO453235NV | 1812 (4532 Metric) | Active | Wirewound | - | 18 µH | ±20% | 845 mA | 800mA | Unshielded | 160mOhm Max | - | 40MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.146" (3.70mm) | |
|
|
PAS8027V-193JIND 18.52MH 240OHM 20MA |
4,596 |
|
Datasheet |
PAS8027V | Nonstandard | Active | - | - | 18.52 mH | ±5% | 20 mA | - | Unshielded | 240Ohm Max | 35 @ 125kHz | - | AEC-Q200 | -55°C ~ 125°C | 125 kHz | - | Surface Mount | - | 0.309" L x 0.106" W (7.85mm x 2.70mm) | 0.106" (2.70mm) | |
|
|
PM5175.682NLTFIXED IND 6.8UH 6.4A 28.6MOHM SM |
4,302 |
|
Datasheet |
PM5175.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 6.4 A | 6.6A | Unshielded | 28.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.197" (5.00mm) |
|
BMNI000606312R2MXHINDUCTOR POWER |
2,721 |
|
Datasheet |
BMNI | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 10 A | 13A | Shielded | 13.97mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.258" L x 0.250" W (6.56mm x 6.36mm) | 0.122" (3.10mm) |
|
|
BMNI000606311R5MXHINDUCTOR POWER |
3,702 |
|
Datasheet |
BMNI | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 14 A | 15A | Shielded | 10.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.258" L x 0.250" W (6.56mm x 6.36mm) | 0.122" (3.10mm) |
|
|
BMNI000606313R3MXHINDUCTOR POWER |
1,347 |
|
Datasheet |
BMNI | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 8 A | 10.5A | Shielded | 20.81mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.258" L x 0.250" W (6.56mm x 6.36mm) | 0.122" (3.10mm) |
|
SCIHP0718-6R8MFIXED IND 6.8UH 2.5A 136MOHM SMD |
2,631 |
|
Datasheet |
SCIHP0718 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 2.5 A | 4.5A | Shielded | 136mOhm | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.071" (1.80mm) |
|
|
SCIHP0718-8R2MFIXED IND 8.2UH 2.3A 148MOHM SMD |
4,114 |
|
Datasheet |
SCIHP0718 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 8.2 µH | ±20% | 2.3 A | 4A | Shielded | 148mOhm | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.071" (1.80mm) |
