Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQH31MN220K03LFIXED IND 22UH 85MA 4.03 OHM SMD |
4,590 |
|
Datasheet |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±10% | 85 mA | - | Unshielded | 4.03Ohm Max | 40 @ 2.5MHz | 14MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
LQH31MN2R2J03LFIXED IND 2.2UH 140MA 700MOHM SM |
1,976 |
|
Datasheet |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±5% | 140 mA | - | Unshielded | 700mOhm | 35 @ 10MHz | 50MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
LQH31MN2R2K03LFIXED IND 2.2UH 140MA 910MOHM SM |
3,110 |
|
Datasheet |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±10% | 140 mA | - | Unshielded | 910mOhm Max | 35 @ 10MHz | 50MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
LQH31MN330J03LFIXED IND 33UH 80MA 3.8 OHM SMD |
4,621 |
|
Datasheet |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±5% | 80 mA | - | Unshielded | 3.8Ohm | 40 @ 2.5MHz | 12MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
LQH31MN3R3K03LFIXED IND 3.3UH 130MA 793MOHM SM |
4,776 |
|
Datasheet |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 130 mA | - | Unshielded | 793mOhm Max | 35 @ 8MHz | 38MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
LQH31MN560K03LFIXED IND 56UH 50MA 11.57OHM SMD |
1,018 |
|
Datasheet |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 56 µH | ±10% | 50 mA | - | Unshielded | 11.57Ohm Max | 40 @ 2.5MHz | 9MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
LQH31MN680K03LFIXED IND 68UH 50MA 12.87OHM SMD |
1,761 |
|
Datasheet |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 50 mA | - | Unshielded | 12.87Ohm Max | 40 @ 2.5MHz | 8.5MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
LQH31MNR68K03LFIXED IND 680NH 190MA 938MOHM SM |
4,752 |
|
Datasheet |
LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 680 nH | ±10% | 190 mA | - | Unshielded | 938mOhm Max | 30 @ 25MHz | 160MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
TYS8040150M-10FIXED IND 15UH 2.6A 47 MOHM SMD |
1,478 |
|
Datasheet |
TYS8040 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 2.6 A | 2.95A | Shielded | 47mOhm Max | - | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
TYS80401R0N-10FIXED IND 1UH 6.3A 8 MOHM SMD |
4,135 |
|
Datasheet |
TYS8040 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±30% | 6.3 A | 9.85A | Shielded | 8mOhm Max | - | 89MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
AMDLA3020S-R68MTFIXED IND 680NH 7A 26 MOHM SMD |
3,242 |
|
Datasheet |
AMDLA3020S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 680 nH | ±20% | 7 A | 10A | Shielded | 26mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.134" L x 0.118" W (3.40mm x 3.00mm) | 0.079" (2.00mm) |
|
|
AMDLA3020S-R47MTFIXED IND 470NH 8A 18 MOHM SMD |
2,806 |
|
Datasheet |
AMDLA3020S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 470 nH | ±20% | 8 A | 12A | Shielded | 18mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.134" L x 0.118" W (3.40mm x 3.00mm) | 0.079" (2.00mm) |
|
B82133A5151M000FIXED IND 350UH 150MA 21 OHM TH |
3,302 |
|
Datasheet |
B82133 | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron | 350 µH | ±20% | 150 mA | - | Unshielded | 21Ohm | - | 11MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.295" Dia x 0.984" L (7.50mm x 25.00mm) | - |
|
|
B82133A5301M000FIXED IND 160UH 300MA 6.5 OHM TH |
3,093 |
|
Datasheet |
B82133 | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron | 160 µH | ±20% | 300 mA | - | Unshielded | 6.5Ohm | - | 16MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.295" Dia x 0.984" L (7.50mm x 25.00mm) | - |
|
B82134A5152M000FIXED IND 30UH 1.5A 300 MOHM TH |
4,558 |
|
Datasheet |
B82134 | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron | 30 µH | ±20% | 1.5 A | - | Unshielded | 300mOhm | - | 44MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.295" Dia x 1.181" L (7.50mm x 30.00mm) | - |
|
|
B82134A5202M000FIXED IND 20UH 2A 150 MOHM TH |
4,513 |
|
Datasheet |
B82134 | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron | 20 µH | ±20% | 2 A | - | Unshielded | 150mOhm | - | 59MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.295" Dia x 1.181" L (7.50mm x 30.00mm) | - |
|
LMRNJ10165GL6R8NNFIXED IND 6.8UH 5.22A 16.8 MOHM |
3,891 |
|
- |
LMRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±30% | 5.22 A | 6A | Shielded | 14mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
|
LMRNJ10165GL2R2NNFIXED IND 2.2UH 7.32A 8.9MOHM SM |
4,917 |
|
- |
LMRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±30% | 7.32 A | 10.8A | Shielded | 7.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
|
LMRNJ10165GL3R3NNFIXED IND 3.3UH 6.76A 10.4 MOHM |
3,914 |
|
- |
LMRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±30% | 6.76 A | 9.3A | Shielded | 8.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
|

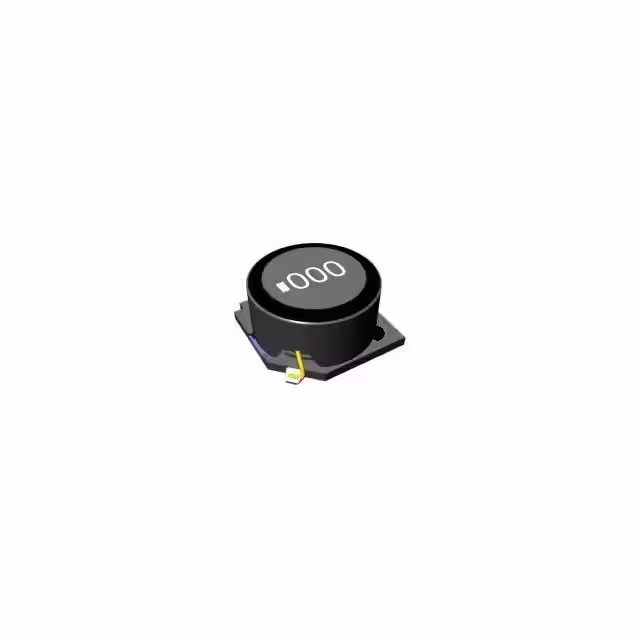

LMRNJ10165GL1R5NNFIXED IND 1.5UH 8.04A 7.5MOHM SM |
3,819 |
|
- |
LMRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±30% | 8.04 A | 13.6A | Shielded | 6.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
