Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LBRNJ10165GL3R3NNFIXED IND 3.3UH 6.76A 10.4 MOHM |
2,352 |
|
- |
LBRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±30% | 6.76 A | 9.3A | Shielded | 8.6mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
|
LBRNJ10165GL1R5NNFIXED IND 1.5UH 8.04A 7.5MOHM SM |
3,304 |
|
- |
LBRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±30% | 8.04 A | 13.6A | Shielded | 6.2mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
|
LBRNJ10165GL220MNFIXED IND 22UH 3.1A 42 MOHM SMD |
4,463 |
|
- |
LBRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 3.41 A | 3.1A | Shielded | 35mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
|

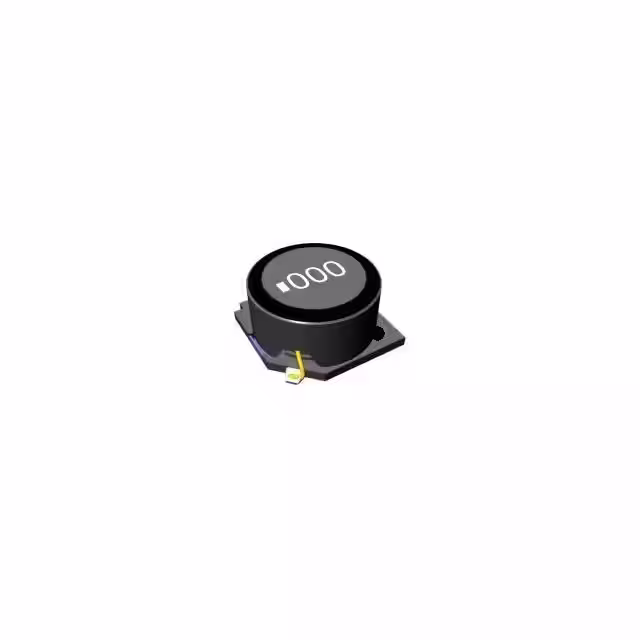

LBRNJ10165GL100MNFIXED IND 10UH 4.66A 20.9MOHM SM |
3,407 |
|
- |
LBRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 4.66 A | 5.2A | Shielded | 17.4mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
|
LMRNJ10165GL4R7NNFIXED IND 4.7UH 5.88A 13.5 MOHM |
2,643 |
|
- |
LMRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±30% | 5.88 A | 7.7A | Shielded | 11.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
|
LMRNJ10165GL150MNFIXED IND 15UH 3.6A 33.6MOHM SMD |
1,997 |
|
- |
LMRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 3.84 A | 3.6A | Shielded | 28mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
|
LBRNJ10165GL150MNFIXED IND 15UH 3.6A 33.6MOHM SMD |
1,054 |
|
- |
LBRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 3.84 A | 3.6A | Shielded | 28mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
|
LMRNJ10165GL100MNFIXED IND 10UH 4.66A 20.9MOHM SM |
2,282 |
|
- |
LMRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 4.66 A | 5.2A | Shielded | 17.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
|
LBRNJ10165GL4R7NNFIXED IND 4.7UH 5.88A 13.5 MOHM |
3,248 |
|
- |
LBRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±30% | 5.88 A | 7.7A | Shielded | 11.2mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
|
LMRNJ10165GL220MNFIXED IND 22UH 3.1A 42 MOHM SMD |
4,395 |
|
- |
LMRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 3.41 A | 3.1A | Shielded | 35mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
|
LBRNJ10165GL6R8NNFIXED IND 6.8UH 5.22A 16.8 MOHM |
3,232 |
|
- |
LBRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±30% | 5.22 A | 6A | Shielded | 14mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
|
SRR0735HA-820MIND 82UH 0.63A SHLD |
1,977 |
|
Datasheet |
SRR0735HA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 630 mA | 650mA | Shielded | 480mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.146" (3.70mm) |
|
|
SRR0735HA-101MIND 100UH 0.54A SHLD |
3,187 |
|
Datasheet |
SRR0735HA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 540 mA | 600mA | Shielded | 630mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.146" (3.70mm) |
|
|
SRR0735HA-180MIND 18UH 1.4A SHLD |
1,006 |
|
Datasheet |
SRR0735HA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 1.4 A | 1.4A | Shielded | 125mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.146" (3.70mm) |
|
|
SRR0735HA-120MIND 12UH 1.9A SHLD |
2,470 |
|
Datasheet |
SRR0735HA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 1.9 A | 1.6A | Shielded | 85mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.146" (3.70mm) |
|
|
SRR0735HA-151MIND 150UH 0.47A SHLD |
4,332 |
|
Datasheet |
SRR0735HA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 470 mA | 480mA | Shielded | 930mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.146" (3.70mm) |
|
|
SRR0735HA-560MIND 56UH 0.78A SHLD |
1,252 |
|
Datasheet |
SRR0735HA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 780 mA | 800mA | Shielded | 350mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.146" (3.70mm) |
|
|
SRR0735HA-270MIND 27UH 1.1A SHLD |
4,264 |
|
Datasheet |
SRR0735HA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 1.1 A | 1.15A | Shielded | 185mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.146" (3.70mm) |
|
|
SRR0735HA-330MIND 33UH 1A SHLD |
4,564 |
|
Datasheet |
SRR0735HA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1 A | 1.04A | Shielded | 220mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.146" (3.70mm) |
|
|
SRR0735HA-391MIND 390UH 0.3A SHLD |
1,028 |
|
Datasheet |
SRR0735HA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±20% | 300 mA | 300mA | Shielded | 2.3Ohm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.146" (3.70mm) |
