Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM42S-3R9-RCFIXED IND 3.9UH 1.82A 75MOHM SMD |
1,152 |
|
Datasheet |
PM42S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±30% | 1.82 A | 1.65A | Shielded | 75mOhm Max | 8 @ 7.96MHz | 60MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
PM42S-4R7-RCFIXED IND 4.7UH 1.72A 82MOHM SMD |
2,176 |
|
Datasheet |
PM42S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 1.72 A | 1.5A | Shielded | 82mOhm Max | 8 @ 7.96MHz | 55MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
PM42S-560-RCFIXED IND 56UH 520MA 820MOHM SMD |
2,424 |
|
Datasheet |
PM42S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±30% | 520 mA | 400mA | Shielded | 820mOhm Max | 8 @ 2.52MHz | 15MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
PM42S-5R6-RCFIXED IND 5.6UH 1.64A 90MOHM SMD |
4,594 |
|
Datasheet |
PM42S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±30% | 1.64 A | 1.25A | Shielded | 90mOhm Max | 7 @ 7.96MHz | 57MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
PM42S-680-RCFIXED IND 68UH 500MA 860MOHM SMD |
2,696 |
|
Datasheet |
PM42S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±30% | 500 mA | 380mA | Shielded | 860mOhm Max | 7 @ 2.52MHz | 13MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
PM42S-6R8-RCFIXED IND 6.8UH 1.5A 100MOHM SMD |
2,701 |
|
Datasheet |
PM42S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 1.5 A | 1.15A | Shielded | 100mOhm Max | 8 @ 7.96MHz | 49MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
PM42S-820-RCFIXED IND 82UH 430MA 1.2 OHM SMD |
4,414 |
|
Datasheet |
PM42S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±30% | 430 mA | 320mA | Shielded | 1.2Ohm Max | 8 @ 2.52MHz | 13MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
1XC0118-3T0-10FIXED IND 1UH 7A 3 MOHM TH |
4,971 |
|
Datasheet |
- | Radial, Horizontal Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±25% | 7 A | - | Unshielded | 3mOhm | - | - | - | -40°C ~ 150°C | 10 kHz | - | Through Hole | - | 0.207" Dia x 0.472" L (5.25mm x 12.00mm) | - |
|
PCMC063T-R68MNFIXED IND 680NH 15.5A 5.5MOHM SM |
2,613 |
|
Datasheet |
PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 680 nH | ±20% | 15.5 A | 25A | Unshielded | 5.5mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
PCMC063T-R82MNFIXED IND 820NH 13A 8 MOHM SMD |
1,151 |
|
Datasheet |
PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 820 nH | ±20% | 13 A | 24A | Unshielded | 8mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
SDS130-224MFIXED IND 220UH 400MA 2.7OHM SMD |
4,917 |
|
Datasheet |
SDS130 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 400 mA | - | Shielded | 2.7Ohm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | - | 0.500" L x 0.398" W (12.70mm x 10.10mm) | 0.118" (3.00mm) |
|
|
CDRH3D17/SNP-2R2NCFIXED IND 2.2UH 2.3A 60 MOHM SMD |
4,133 |
|
- |
CDRH3D17/S | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 2.2 µH | ±30% | 2.3 A | 1.8A | Shielded | 60mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.075" (1.90mm) |
|
|
CLQ61NP-100NCFIXED IND 10UH 620MA 300 MOHM |
4,915 |
|
- |
CLQ61 | - | Tape & Reel (TR) | Obsolete | - | - | 10 µH | ±30% | 620 mA | - | Unshielded | 300mOhm Max | - | - | - | - | - | - | - | - | - | - |
|
CMLE061E-R56MSFIXED IND 560NH 10A 11 MOHM SMD |
3,176 |
|
Datasheet |
CMLE061E | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 560 nH | ±20% | 10 A | 14A | Shielded | 11mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.059" (1.50mm) |
|
|
CMLE061E-1R2MSFIXED IND 1.2UH 7.5A 25MOHM SMD |
4,135 |
|
Datasheet |
CMLE061E | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 1.2 µH | ±20% | 7.5 A | 8.5A | Shielded | 25mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.059" (1.50mm) |
|
|
CMLE061E-3R3MSFIXED IND 3.3UH 3.8A 63MOHM SMD |
2,147 |
|
Datasheet |
CMLE061E | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 3.3 µH | ±20% | 3.8 A | 5.2A | Shielded | 63mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.059" (1.50mm) |
|
|
CMLE061E-6R8MSFIXED IND 6.8UH 3A 130 MOHM SMD |
1,332 |
|
Datasheet |
CMLE061E | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 6.8 µH | ±20% | 3 A | 4A | Shielded | 130mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.059" (1.50mm) |
|

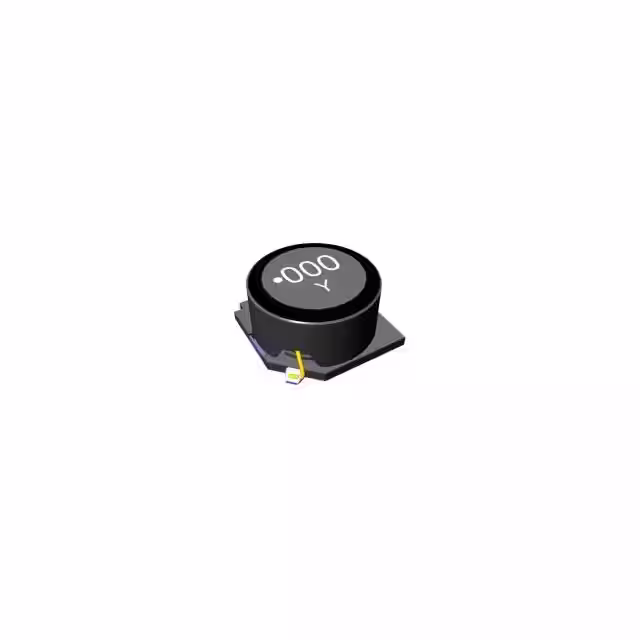

LLRNJ12575GL330MMYFIXED IND 33UH 3.48A 46.8MOHM SM |
3,221 |
|
- |
LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | ±20% | 3.48 A | 4.45A | Shielded | 39mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
LLRNJ12575GL5R6NMYFIXED IND 5.6UH 6.36A 13.92 MOHM |
3,108 |
|
- |
LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 5.6 µH | ±30% | 6.36 A | 10.85A | Shielded | 11.6mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
LLRNJ12575GL3R9NMYFIXED IND 3.9UH 7.38A 11.88 MOHM |
4,878 |
|
- |
LLRN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.9 µH | ±30% | 7.38 A | 12.52A | Shielded | 9.9mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
