Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TMPC 1206HP-1R0MG-D1.0 UH SHIELDED MOLDED INDUCTOR |
4,934 |
|
Datasheet |
TMPC1206HP-D | Nonstandard | Active | - | Carbonyl Powder | 1 µH | ±20% | 29 A | 53A | Unshielded | 8.58mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.236" (6.00mm) | |
|
|
TMPC 1206HP-220MG-D22 UH SHIELDED MOLDED INDUCTOR S |
1,934 |
|
Datasheet |
TMPC1206HP-D | Nonstandard | Active | - | Carbonyl Powder | 22 µH | ±20% | 8 A | 14A | Unshielded | 6.8Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.236" (6.00mm) | |
|
|
TMPA1004HTV-3R3MN-DIND 3.3UH 11.8MOHM 12A |
1,868 |
|
Datasheet |
TMPA1004HTV | Nonstandard | Active | Molded | Metal | 3.3 µH | ±20% | 12 A | 16A | Shielded | 11.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.406" (10.30mm) | |
|
|
TMPA1004HTV-1R5MN-DIND 1.5UH 4.5MOHM 19A |
2,539 |
|
Datasheet |
TMPA1004HTV | Nonstandard | Active | Molded | Metal | 1.5 µH | ±20% | 19 A | 24A | Shielded | 4.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.406" (10.30mm) | |
|
|
TMPA1004HTV-5R6MN-DIND 5.6UH 17.5MOHM 9.6A |
2,093 |
|
Datasheet |
TMPA1004HTV | Nonstandard | Active | Molded | Metal | 5.6 µH | ±20% | 9.6 A | 11A | Shielded | 17.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.406" (10.30mm) | |
|
ECS-MPI4040R2-1R5-RFIXED IND 1.5UH 3.8A 44.4MOHM SM |
1,849 |
|
Datasheet |
ECS-MPI4040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±20% | 3.8 A | 7.6A | Shielded | 44.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.059" (1.50mm) |
|
|
ECS-MPI4040R2-6R8-RFIXED IND 6.8UH 1.8A 189.6 MOHM |
1,967 |
|
Datasheet |
ECS-MPI4040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 1.8 A | 3.4A | Shielded | 189.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.059" (1.50mm) |
|

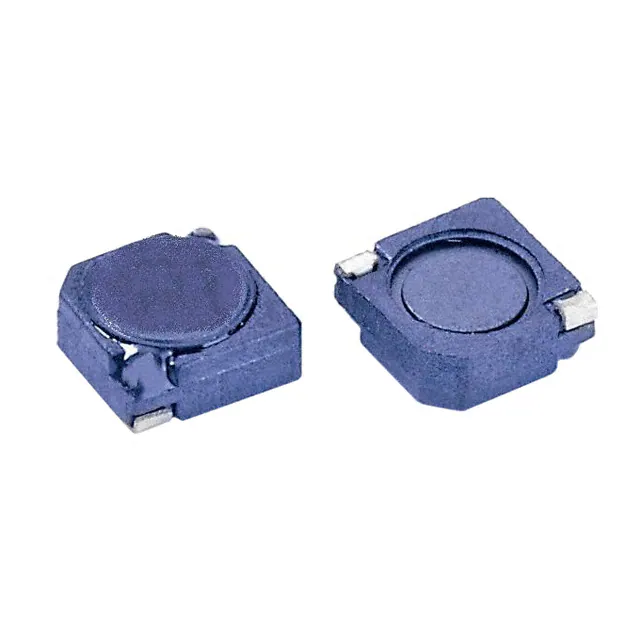

SCC5D23-150FIXED IND 15UH 1.3A 166 MOHM SMD |
3,286 |
|
Datasheet |
SCC5D23 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 15 µH | ±20% | 1.3 A | 820mA | Shielded | 166mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.098" (2.50mm) |
|
|
SCC5D23-181FIXED IND 180UH 370MA 1.9OHM SMD |
1,528 |
|
Datasheet |
SCC5D23 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 180 µH | ±20% | 370 mA | 230mA | Shielded | 1.9Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.098" (2.50mm) |
|
|
SCC5D23-271FIXED IND 270UH 320MA 2.73OHM SM |
4,786 |
|
Datasheet |
SCC5D23 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 270 µH | ±20% | 320 mA | 190mA | Shielded | 2.73Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.098" (2.50mm) |
|
|
SCC5D23-2R7FIXED IND 2.7UH 2.8A 44 MOHM SMD |
2,346 |
|
Datasheet |
SCC5D23 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 2.7 µH | ±20% | 2.8 A | 2.08A | Shielded | 44mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.098" (2.50mm) |
|
|
SCC5D23-330FIXED IND 33UH 900MA 378MOHM SMD |
4,370 |
|
Datasheet |
SCC5D23 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 33 µH | ±20% | 900 mA | 580mA | Shielded | 378mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.098" (2.50mm) |
|
|
SCC5D23-391FIXED IND 390UH 240MA 4.06OHM SM |
1,814 |
|
Datasheet |
SCC5D23 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 390 µH | ±20% | 240 mA | 170mA | Shielded | 4.06Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.098" (2.50mm) |
|
|
SCC5D23-471FIXED IND 470UH 210MA 4.78OHM SM |
2,959 |
|
Datasheet |
SCC5D23 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 470 µH | ±20% | 210 mA | 165mA | Shielded | 4.78Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.098" (2.50mm) |
|
|
SCC5D23-4R7FIXED IND 4.7UH 2.2A 62 MOHM SMD |
4,356 |
|
Datasheet |
SCC5D23 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 4.7 µH | ±20% | 2.2 A | 1.6A | Shielded | 62mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.098" (2.50mm) |
|
|
SCC5D23-820FIXED IND 82UH 580MA 1 OHM SMD |
3,901 |
|
Datasheet |
SCC5D23 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 82 µH | ±20% | 580 mA | 350mA | Shielded | 1Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.098" (2.50mm) |
|
|
SCC5D23-8R2FIXED IND 8.2UH 1.75A 103MOHM SM |
1,437 |
|
Datasheet |
SCC5D23 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 8.2 µH | ±20% | 1.75 A | 1.12A | Shielded | 103mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.098" (2.50mm) |
|
|
F1A1-464615-390MFIXED IND 39UH 450MA 1200 MOHM |
2,485 |
|
Datasheet |
F1A1-464615 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 39 µH | ±20% | 450 mA | 400mA | Shielded | 1.2kOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.181" L x 0.181" W (4.60mm x 4.60mm) | 0.059" (1.50mm) |
|
|
F1A1-464615-3R3NFIXED IND 3.3UH 1.55A 150 MOHM |
3,114 |
|
Datasheet |
F1A1-464615 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 3.3 µH | ±30% | 1.55 A | 1.6A | Shielded | 150Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.181" L x 0.181" W (4.60mm x 4.60mm) | 0.059" (1.50mm) |
|
|
F1A1-464615-120MFIXED IND 12UH 850MA 356 MOHM |
3,116 |
|
Datasheet |
F1A1-464615 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 12 µH | ±20% | 850 mA | 800mA | Shielded | 356Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.181" L x 0.181" W (4.60mm x 4.60mm) | 0.059" (1.50mm) |
