Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RCH106NP-471KFIXED IND 470UH 520MA 1.5 OHM TH |
4,023 |
|
Datasheet |
RCH-106 | Radial, Vertical Cylinder, 4 Leads (Open) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 520 mA | - | Unshielded | 1.5Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.256" (6.50mm) |
|
|
RCH106NP-560KFIXED IND 56UH 1.5A 190 MOHM TH |
4,417 |
|
Datasheet |
RCH-106 | Radial, Vertical Cylinder, 4 Leads (Open) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 1.5 A | - | Unshielded | 190mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.256" (6.50mm) |
|
|
RCH106NP-561KFIXED IND 560UH 480MA 1.9 OHM TH |
1,015 |
|
Datasheet |
RCH-106 | Radial, Vertical Cylinder, 4 Leads (Open) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 480 mA | - | Unshielded | 1.9Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.256" (6.50mm) |
|
|
RCH106NP-5R1MFIXED IND 5.1UH 4.6A 19.6MOHM TH |
2,824 |
|
Datasheet |
RCH-106 | Radial, Vertical Cylinder, 4 Leads (Open) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.1 µH | ±20% | 4.6 A | - | Unshielded | 19.6mOhm Max | - | - | - | -40°C ~ 100°C | 7.96 MHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.256" (6.50mm) |
|
|
RCH106NP-680KFIXED IND 68UH 1.4A 220 MOHM TH |
2,076 |
|
Datasheet |
RCH-106 | Radial, Vertical Cylinder, 4 Leads (Open) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 1.4 A | - | Unshielded | 220mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.256" (6.50mm) |
|
|
RCH106NP-681KFIXED IND 680UH 430MA 2.2 OHM TH |
4,909 |
|
Datasheet |
RCH-106 | Radial, Vertical Cylinder, 4 Leads (Open) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 430 mA | - | Unshielded | 2.2Ohm Max | - | - | - | -40°C ~ 100°C | 7.96 MHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.256" (6.50mm) |
|
|
RCH106NP-6R3MFIXED IND 6.3UH 4.2A 23.1MOHM TH |
1,315 |
|
Datasheet |
RCH-106 | Radial, Vertical Cylinder, 4 Leads (Open) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.3 µH | ±20% | 4.2 A | - | Unshielded | 23.1mOhm Max | - | - | - | -40°C ~ 100°C | 7.96 MHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.256" (6.50mm) |
|
|
RCH106NP-7R8MFIXED IND 7.8UH 3.9A 24.8MOHM TH |
2,852 |
|
Datasheet |
RCH-106 | Radial, Vertical Cylinder, 4 Leads (Open) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 7.8 µH | ±20% | 3.9 A | - | Unshielded | 24.8mOhm Max | - | - | - | -40°C ~ 100°C | 7.96 MHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.256" (6.50mm) |
|
|
RCH106NP-820KFIXED IND 82UH 1.3A 290 MOHM TH |
1,313 |
|
Datasheet |
RCH-106 | Radial, Vertical Cylinder, 4 Leads (Open) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 1.3 A | - | Unshielded | 290mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.256" (6.50mm) |
|
|
RCH106NP-821KFIXED IND 820UH 400MA 2.6 OHM TH |
1,010 |
|
Datasheet |
RCH-106 | Radial, Vertical Cylinder, 4 Leads (Open) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 400 mA | - | Unshielded | 2.6Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.256" (6.50mm) |
|
|
PM5448.562NLTFIXED IND 5.6UH 7.5A 35.7MOHM SM |
4,111 |
|
Datasheet |
PM5448.xxxNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 5.6 µH | ±20% | 7.5 A | 7.5A | Shielded | 35.7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.323" W (8.80mm x 8.20mm) | 0.118" (3.00mm) |
|
|
FDV0618-H-3R3M=P3FIXED IND |
4,524 |
|
- |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FDV0618-H-1R0M=P3FIXED IND |
1,291 |
|
- |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
LAYPH06045DL680MGAFIXED IND 68UH 1.1A 210 MOHM SMD |
3,881 |
|
Datasheet |
LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 68 µH | ±20% | 730 mA | 800mA | Shielded | 210mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
|
LAYPH06045DL331MGAFIXED IND 330UH 470MA 950MOHM SM |
2,532 |
|
Datasheet |
LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 330 µH | ±20% | 300 mA | 360mA | Shielded | 950mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
|
LAYPH06045DL2R2NGAFIXED IND 2.2UH 4.3A 13 MOHM SMD |
4,019 |
|
Datasheet |
LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±30% | 2.8 A | 4.2A | Shielded | 13mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
|
LAYPH06045DL101MGAFIXED IND 100UH 850MA 320MOHM SM |
3,499 |
|
Datasheet |
LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | 560 mA | 550mA | Shielded | 320mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
|
LAYPH06045DL220MGAFIXED IND 22UH 1.8A 79 MOHM SMD |
4,436 |
|
Datasheet |
LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 1.1 A | 1.3A | Shielded | 79mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
|

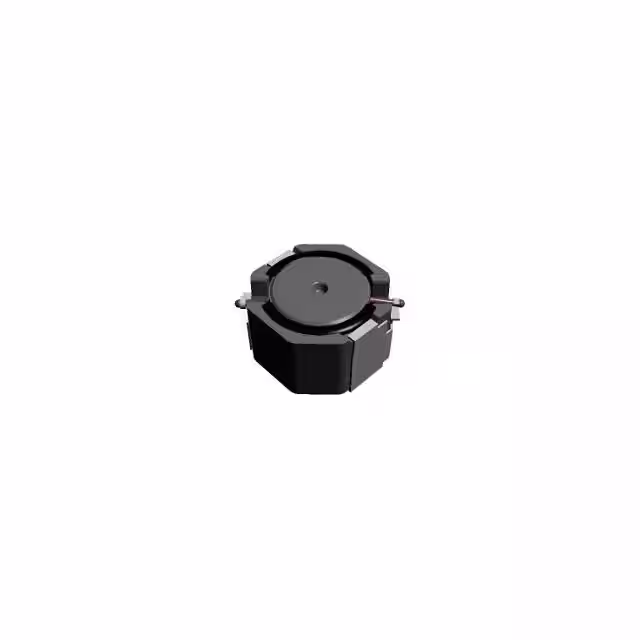

LAYPH06045DL330MGAFIXED IND 33UH 1.6A 100 MOHM SMD |
2,687 |
|
Datasheet |
LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | ±20% | 950 mA | 1.1A | Shielded | 100mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
|
LAYPH06045DL6R8NGAFIXED IND 6.8UH 3A 29 MOHM SMD |
3,127 |
|
Datasheet |
LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±30% | 2 A | 2.5A | Shielded | 29mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
