Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM1608A-4R7MHFMOLDED INDUCTOR 4.7UH 103.4M 3A |
4,997 |
|
Datasheet |
SM1608A | Nonstandard | Bulk | Active | Molded | Metal | 4.7 µH | ±20% | 2.8 A | 3A | Shielded | 114mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.236" (6.00mm) |
|
45281CFIXED IND 280NH 8A 9 MOHM SMD |
4,044 |
|
Datasheet |
4500 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 280 nH | ±30% | 8 A | - | Shielded | 9mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.140" (3.55mm) |
|
|
45541CFIXED IND 540NH 7A 11 MOHM SMD |
1,080 |
|
Datasheet |
4500 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 540 nH | ±30% | 7 A | - | Shielded | 11mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.140" (3.55mm) |
|
LQH88PN1R0N38LFIXED IND 1UH 8A 6 MOHM SMD |
4,267 |
|
Datasheet |
LQH88 | 3131 (8080 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 1 µH | ±30% | 8 A | 11.2A | Shielded | 6mOhm | - | 100MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 3131 (8080 Metric) | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.150" (3.80mm) |
|
|
LQH88PN2R2N38LFIXED IND 2.2UH 6.4A 9 MOHM SMD |
1,097 |
|
Datasheet |
LQH88 | 3131 (8080 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±30% | 6.4 A | 8A | Shielded | 9mOhm | - | 50MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 3131 (8080 Metric) | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.150" (3.80mm) |
|
|
LQH88PN3R3N38LFIXED IND 3.3UH 5A 13 MOHM SMD |
3,685 |
|
Datasheet |
LQH88 | 3131 (8080 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | ±30% | 5 A | 7A | Shielded | 13mOhm | - | 35MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 3131 (8080 Metric) | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.150" (3.80mm) |
|
|
LQH88PN4R7N38LFIXED IND 4.7UH 4.2A 17 MOHM SMD |
2,132 |
|
Datasheet |
LQH88 | 3131 (8080 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±30% | 4.2 A | 6A | Shielded | 17mOhm | - | 30MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 3131 (8080 Metric) | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.150" (3.80mm) |
|
|
LQH88PN6R8N38LFIXED IND 6.8UH 3.8A 22 MOHM SMD |
2,606 |
|
Datasheet |
LQH88 | 3131 (8080 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | ±30% | 3.8 A | 4.5A | Shielded | 22mOhm | - | 20MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 3131 (8080 Metric) | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.150" (3.80mm) |
|
|
LQH88PN100M38LFIXED IND 10UH 3.15A 29 MOHM SMD |
1,634 |
|
Datasheet |
LQH88 | 3131 (8080 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±20% | 3.15 A | 3.6A | Shielded | 29mOhm | - | 18MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 3131 (8080 Metric) | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.150" (3.80mm) |
|
|
LQH88PN150M38LFIXED IND 15UH 2.45A 41 MOHM SMD |
3,352 |
|
Datasheet |
LQH88 | 3131 (8080 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 15 µH | ±20% | 2.45 A | 3A | Shielded | 41mOhm | - | 13MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 3131 (8080 Metric) | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.150" (3.80mm) |
|
|
LQH88PN220M38LFIXED IND 22UH 2.25A 66 MOHM SMD |
2,858 |
|
Datasheet |
LQH88 | 3131 (8080 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±20% | 2.25 A | 2.7A | Shielded | 66mOhm | - | 10MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 3131 (8080 Metric) | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.150" (3.80mm) |
|
|
LQH88PN330M38LFIXED IND 33UH 1.75A 95 MOHM SMD |
3,236 |
|
Datasheet |
LQH88 | 3131 (8080 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 33 µH | ±20% | 1.75 A | 1.9A | Shielded | 95mOhm | - | 9MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 3131 (8080 Metric) | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.150" (3.80mm) |
|
|
LQH88PN470M38LFIXED IND 47UH 1.45A 157MOHM SMD |
2,606 |
|
Datasheet |
LQH88 | 3131 (8080 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 47 µH | ±20% | 1.45 A | 1.5A | Shielded | 157mOhm | - | 7MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 3131 (8080 Metric) | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.150" (3.80mm) |
|
|
LQH88PN680M38LFIXED IND 68UH 1.1A 190 MOHM SMD |
2,324 |
|
Datasheet |
LQH88 | 3131 (8080 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 68 µH | ±20% | 1.1 A | 1.25A | Shielded | 190mOhm | - | 7MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 3131 (8080 Metric) | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.150" (3.80mm) |
|
|
LQH88PN101M38LFIXED IND 100UH 1A 265 MOHM SMD |
2,800 |
|
Datasheet |
LQH88 | 3131 (8080 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 100 µH | ±20% | 1 A | 1A | Shielded | 265mOhm | - | 4MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 3131 (8080 Metric) | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.150" (3.80mm) |
.jpg)
|

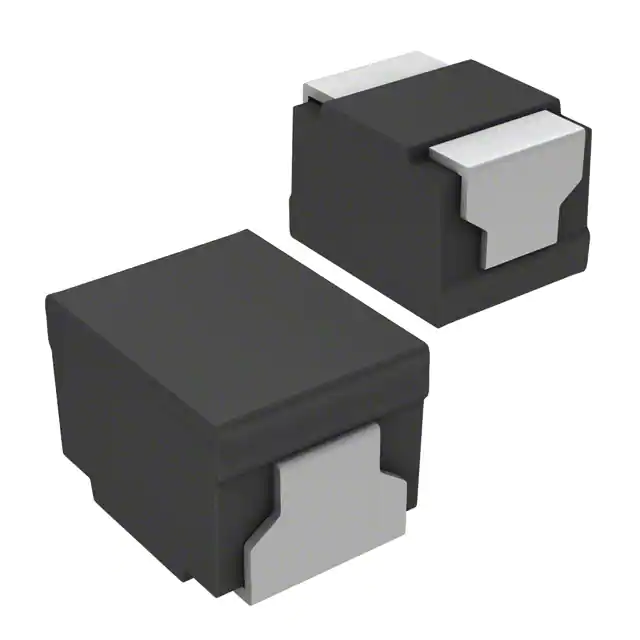

ELJ-DA390JFFIXED IND 39UH 110MA 5.2 OHM SMD |
2,028 |
|
Datasheet |
DA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 39 µH | ±5% | 110 mA | - | Unshielded | 5.2Ohm Max | 21 @ 2.52MHz | 11MHz | - | -20°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-DA820JFFIXED IND 82UH 80MA 10 OHM SMD |
4,743 |
|
Datasheet |
DA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 82 µH | ±5% | 80 mA | - | Unshielded | 10Ohm Max | 19 @ 2.52MHz | 7MHz | - | -20°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
LQH43MN121J03LFIXED IND 120UH 150MA 3 OHM SMD |
4,632 |
|
Datasheet |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±5% | 150 mA | - | Unshielded | 3Ohm Max | 40 @ 796kHz | 6.2MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
LQH43MN220J03LFIXED IND 22UH 320MA 940MOHM SMD |
3,931 |
|
Datasheet |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±5% | 320 mA | - | Unshielded | 940mOhm Max | 35 @ 1MHz | 15MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
LQH43MN471J03LFIXED IND 470UH 80MA 11.8OHM SMD |
4,760 |
|
Datasheet |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±5% | 80 mA | - | Unshielded | 11.8Ohm Max | 40 @ 796kHz | 3MHz | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
