Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74406042022FIXED IND 2.2UH 3.36A 40MOHM SMD |
4,304 |
|
Datasheet |
WE-LQFS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 3.36 A | 2.73A | Shielded | 40mOhm Max | - | 132MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4818 | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.079" (2.00mm) |
|
SLF7045T-151MR40-PFFIXED IND 150UH 550MA 408MOHM SM |
1,390 |
|
Datasheet |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 550 mA | 400mA | Shielded | 408mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
RCR875DNP-221KFIXED IND 220UH 500MA 760MOHM TH |
1,477 |
|
Datasheet |
RCR-875D | Radial, Vertical Cylinder | Bulk | Active | - | Ferrite | 220 µH | ±10% | 500 mA | - | Shielded | 760mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
744772200FIXED IND 20UH 2.6A 50 MOHM TH |
1,713 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 20 µH | ±10% | 2.6 A | 3.5A | Unshielded | 50mOhm Max | - | 12.5MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
SRR0745A-120MFIXED IND 12UH 2A 62 MOHM SMD |
3,303 |
|
Datasheet |
SRR0745A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 12 µH | ±20% | 2 A | 2.3A | Shielded | 62mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.185" (4.70mm) |
|
SRP1038CC-4R7MIND SMD 4.7UH 13A |
4,720 |
|
Datasheet |
SRP1038CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 4.7 µH | ±20% | 13 A | 20A | Shielded | 15.5mOhm Max | - | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
6000-3R3M-RCFIXED IND 3.3UH 5.5A 25 MOHM TH |
2,217 |
|
Datasheet |
6000 | Radial, Vertical Cylinder | Bulk | Not For New Designs | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 5.5 A | - | Unshielded | 25mOhm Max | 20 @ 7.96MHz | 79MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
6100-330K-RCFIXED IND 33UH 3.39A 0.059OHM TH |
1,654 |
|
Datasheet |
6100 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 3.39 A | - | Unshielded | 59mOhm Max | - | 10.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 0.433" Dia (11.00mm) | 0.413" (10.50mm) |
|

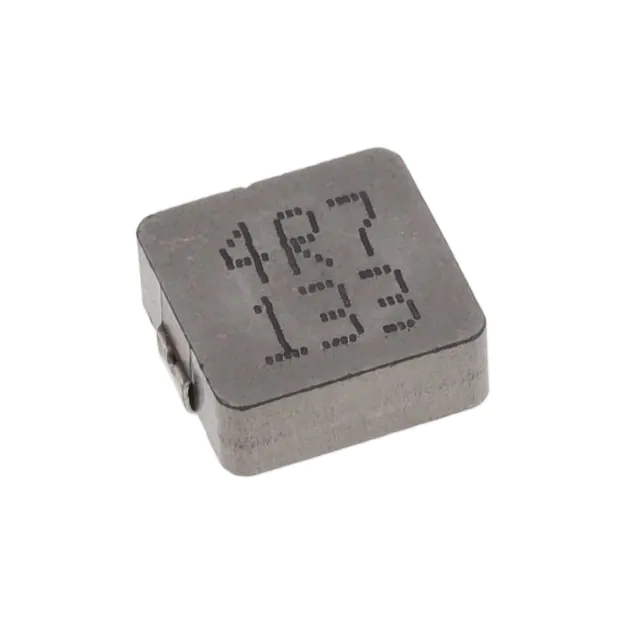

104CDMCCDS-4R7MCFIXED IND 4.7UH 11A 20 MOHM SMD |
4,620 |
|
Datasheet |
104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 4.7 µH | ±20% | 11 A | 16A | Shielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SRP1038CC-8R2MIND SMD 8.2UH 9A |
1,137 |
|
Datasheet |
SRP1038CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 8.2 µH | ±20% | 9 A | 13.5A | Shielded | 22.5mOhm Max | - | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
TFM322512ALVA3R3MTAAFIXED IND 3.3UH 2.3A 113MOHM SMD |
2,825 |
|
Datasheet |
TFM-ALVA | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 3.3 µH | ±20% | 2.3 A | 2.5A | Shielded | 113mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|

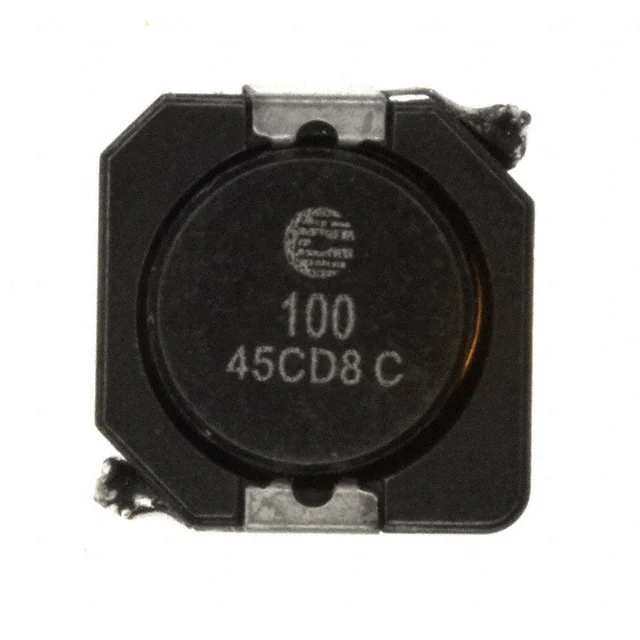

DR1050-100-RFIXED IND 10UH 4.8A 22.5MOHM SMD |
4,763 |
|
Datasheet |
DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 4.8 A | 4.58A | Shielded | 22.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.197" (5.00mm) |
|

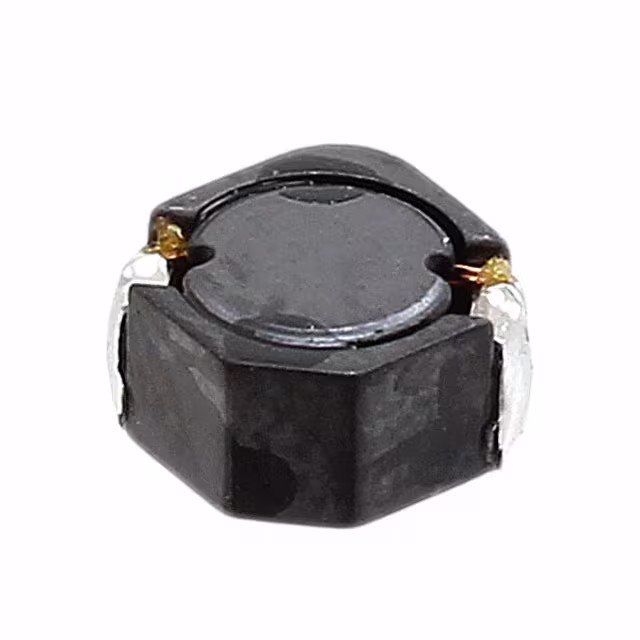

CDRH4D28CNP-4R7PCFIXED IND 4.7UH 1.8A 63 MOHM SMD |
1,716 |
|
Datasheet |
CDRH4D28C | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±25% | 1.8 A | - | Shielded | 63mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.118" (3.00mm) |
|
IHLP2020CZER100M8AFIXED IND 10UH 2.8A 138MOHM SMD |
2,435 |
|
Datasheet |
IHLP-2020CZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 2.8 A | 1.6A | Shielded | 138mOhm Max | - | 15.9MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.204" L x 0.204" W (5.18mm x 5.18mm) | 0.118" (3.00mm) |
|
DR125-680-RFIXED IND 68UH 2.22A 101MOHM SMD |
3,105 |
|
Datasheet |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 2.22 A | 2.7A | Shielded | 101mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
SRP3012TA-100MFIXED IND 10UH 1A 550 MOHM SMD |
1,378 |
|
Datasheet |
SRP3012TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 10 µH | ±20% | 1 A | 1.4A | Shielded | 550mOhm Max | - | 23MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.047" (1.20mm) |
|
AIUR-06-122KFIXED IND 1.2MH 610MA 1.5 OHM TH |
4,573 |
|
Datasheet |
AIUR-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.2 mH | ±10% | 610 mA | 800mA | Unshielded | 1.5Ohm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.500" Dia (12.70mm) | 0.710" (18.03mm) |
|
SRR1005-470YFIXED IND 47UH 1A 190 MOHM SMD |
1,735 |
|
- |
SRR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±15% | 1 A | 1.3A | Shielded | 190mOhm Max | 35 @ 2.52MHz | 12MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
B82442T1333K000FIXED IND 33UH 840MA 360MOHM SMD |
1,953 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 840 mA | 1.7A | Unshielded | 360mOhm Max | 15 @ 2.52MHz | 11MHz | AEC-Q200 | -55°C ~ 150°C | 2.52 MHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|

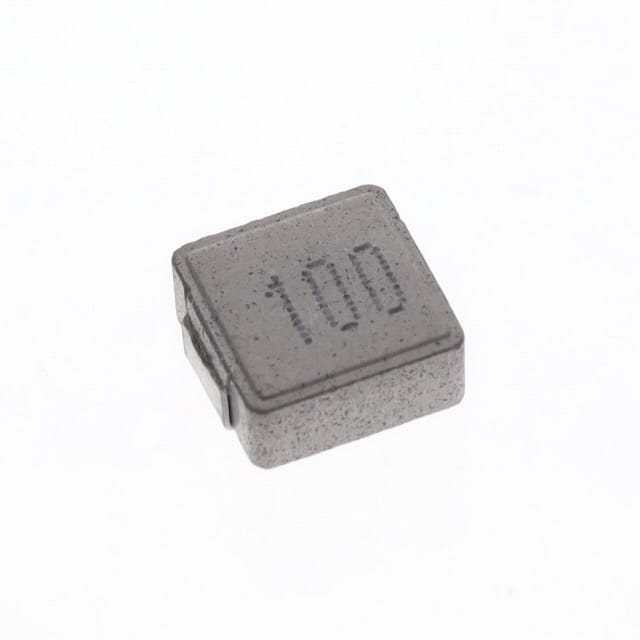

SRP6530A-100MIND,7.1X6.6X3MM,10UH20%,4A,SHD |
1,908 |
|
Datasheet |
SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 10 µH | ±20% | 4 A | 7A | Shielded | 105mOhm Max | 26 @ 2.52MHz | 10MHz | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
