Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CT0603CSF-39NGSMD CER CORE WIRE-WOUND INDUCTOR |
310 |
|
Datasheet |
ct0603csf | - | Tape & Reel (TR) | Active | Wirewound | - | 39 nH | ±2% | - | - | - | 250mOhm | - | 2.2GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0603CSF-6N2GSMD CER CORE WIRE-WOUND INDUCTOR |
310 |
|
Datasheet |
ct0603csf | - | Tape & Reel (TR) | Active | Wirewound | - | 6.2 nH | ±2% | - | - | - | 110mOhm | - | 5.8GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0603CSF-16NGSMD CER CORE WIRE-WOUND INDUCTOR |
306 |
|
Datasheet |
ct0603csf | - | Tape & Reel (TR) | Active | Wirewound | - | 16 nH | ±2% | - | - | - | 104mOhm | - | 3.3GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0603CSF-3N6GSMD CER CORE WIRE-WOUND INDUCTOR |
300 |
|
Datasheet |
ct0603csf | - | Tape & Reel (TR) | Active | Wirewound | - | 3.6 nH | ±2% | - | - | - | 63mOhm | - | 5.9GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0603CSF-11NGSMD CER CORE WIRE-WOUND INDUCTOR |
299 |
|
Datasheet |
ct0603csf | - | Tape & Reel (TR) | Active | Wirewound | - | 11 nH | ±2% | - | - | - | 86mOhm | - | 4GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0603CSF-8N7GSMD CER CORE WIRE-WOUND INDUCTOR |
299 |
|
Datasheet |
ct0603csf | - | Tape & Reel (TR) | Active | Wirewound | - | 8.7 nH | ±2% | - | - | - | 109mOhm | - | 4.6GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0603CSF-23NGSMD CER CORE WIRE-WOUND INDUCTOR |
298 |
|
Datasheet |
ct0603csf | - | Tape & Reel (TR) | Active | Wirewound | - | 23 nH | ±2% | - | - | - | 135mOhm | - | 2.85GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0603CSF-1N8JSMD CER CORE WIRE-WOUND INDUCTOR |
295 |
|
Datasheet |
ct0603csf | - | Tape & Reel (TR) | Active | Wirewound | - | 1.8 nH | ±5% | - | - | - | 45mOhm | - | 12.5GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0603CSF-15NGSMD CER CORE WIRE-WOUND INDUCTOR |
295 |
|
Datasheet |
ct0603csf | - | Tape & Reel (TR) | Active | Wirewound | - | 15 nH | ±2% | - | - | - | 170mOhm | - | 4GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0603CSF-27NGSMD CER CORE WIRE-WOUND INDUCTOR |
295 |
|
Datasheet |
ct0603csf | - | Tape & Reel (TR) | Active | Wirewound | - | 27 nH | ±2% | - | - | - | 220mOhm | - | 2.8GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0603CSF-3N3GSMD CER CORE WIRE-WOUND INDUCTOR |
290 |
|
Datasheet |
ct0603csf | - | Tape & Reel (TR) | Active | Wirewound | - | 3.3 nH | ±2% | - | - | - | 45mOhm | - | 5.9GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0603CSF-24NGSMD CER CORE WIRE-WOUND INDUCTOR |
290 |
|
Datasheet |
ct0603csf | - | Tape & Reel (TR) | Active | Wirewound | - | 24 nH | ±2% | - | - | - | 135mOhm | - | 2.65GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0603CSF-6N3GSMD CER CORE WIRE-WOUND INDUCTOR |
290 |
|
Datasheet |
ct0603csf | - | Tape & Reel (TR) | Active | Wirewound | - | 6.3 nH | ±2% | - | - | - | 140mOhm | - | 5.7GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0603CSF-51NGSMD CER CORE WIRE-WOUND INDUCTOR |
290 |
|
Datasheet |
ct0603csf | - | Tape & Reel (TR) | Active | Wirewound | - | 51 nH | ±2% | - | - | - | 340mOhm | - | 1.9GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0603CSF-5N1GSMD CER CORE WIRE-WOUND INDUCTOR |
290 |
|
Datasheet |
ct0603csf | - | Tape & Reel (TR) | Active | Wirewound | - | 5.1 nH | ±2% | - | - | - | 140mOhm | - | 5.7GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0603CSF-R18GSMD CER CORE WIRE-WOUND INDUCTOR |
290 |
|
Datasheet |
ct0603csf | - | Tape & Reel (TR) | Active | Wirewound | - | 180 nH | ±2% | - | - | - | 1.25Ohm | - | 990MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0603CSF-R11GSMD CER CORE WIRE-WOUND INDUCTOR |
290 |
|
Datasheet |
ct0603csf | - | Tape & Reel (TR) | Active | Wirewound | - | 110 nH | ±2% | - | - | - | 610mOhm | - | 1.35GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|

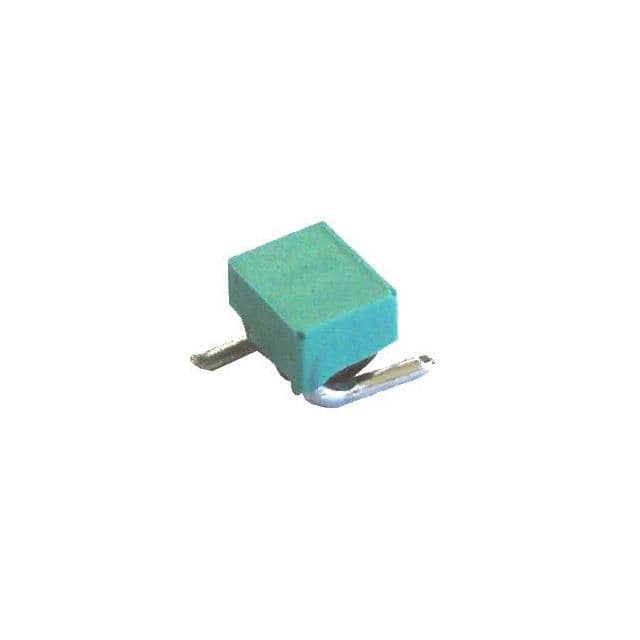

CTBF09TGSMD AIR CORE INDUCTOR |
200 |
|
Datasheet |
ctbf | - | Tape & Reel (TR) | Active | Wirewound | - | 35.5 nH | ±2% | - | - | - | 6.8mOhm | - | 1.5GHz | - | -40°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
PIM150M0603MA3MOLDED IND 15 UH M 3A 0603 AECQ |
1,000 |
|
Datasheet |
PIM-0603MA3 | - | Strip | Active | Molded | Metal Composite | - | ±20% | - | 3.2A | Shielded | 114mOhm Max | - | 100kHz | AEC-Q200 | -55°C ~ 125°C | - | High Current, Low Loss | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.110" (2.80mm) |
|
|
PIM4R7M0603MA3MOLDED IND 4.7 UH M 5.5A 0603 AE |
1,000 |
|
Datasheet |
PIM-0603MA1 | - | Strip | Active | Molded | Metal Composite | - | ±20% | - | 10A | Shielded | 40mOhm Max | - | 100kHz | AEC-Q200 | -55°C ~ 125°C | - | High Current | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.110" (2.80mm) |
