Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PIM150M0603A3MOLDED IND 15 UH M 3A 0603 |
1,000 |
|
Datasheet |
PIM-0603A3 | - | Strip | Active | Molded | Metal Composite | - | ±20% | - | 4.5A | Shielded | 140mOhm Max | - | 100kHz | - | -40°C ~ 125°C | - | High Current, Low Loss | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.110" (2.80mm) |
|
|
PIM8R2M0603A3MOLDED IND 8.2 UH M 4.5A 0603 |
1,000 |
|
Datasheet |
PIM-0603A1 | - | Strip | Active | Molded | Metal Composite | - | ±20% | - | 7.5A | Shielded | 68mOhm Max | - | 100kHz | - | -40°C ~ 125°C | - | High Current | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.110" (2.80mm) |
|
|
PIM3R3M0603A1MOLDED IND 3.3 UH M 6A 0603 |
1,000 |
|
Datasheet |
PIM-0603A1 | - | Strip | Active | Molded | Metal Composite | - | ±20% | - | 13.5A | Shielded | 30mOhm Max | - | 100kHz | - | -40°C ~ 125°C | - | High Current | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.110" (2.80mm) |
|
CTGS32F-180M18UH SMD UNSHLD POWER INDUCTOR |
130 |
|
Datasheet |
CTGS32F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 18 µH | ±20% | 580 mA | 750mA | Unshielded | 460mOhm Max | 18 @ 2.52MHz | 28MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.110" (2.80mm) |
|
|
NPIM104PA4R7MTRQYFIND SMT 11X10X3.84.7UH10A15.5 |
500 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | Metal Composite | 4.7 µH | - | - | 17A | Shielded | 15.5mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | - | High Current | - | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.149" (3.80mm) |
|

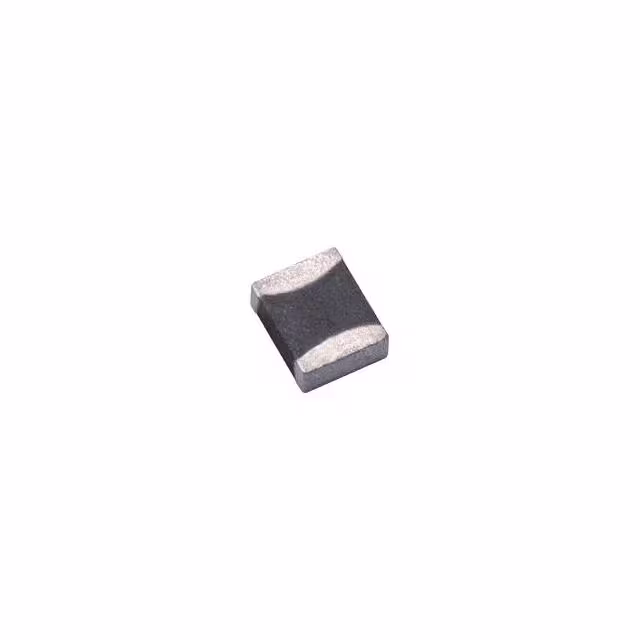

CTMPH100805F-1R0M1UH SMD MOLDED SHLD INDUCTOR |
4,084 |
|
Datasheet |
CTMPH100805F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 3.6 A | 4.4A | Shielded | 42mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
PIM3R3M1004A3MOLDED IND 3.3 UH M 11A 1004 |
1,000 |
|
Datasheet |
PIM-1004A3 | - | Strip | Active | Molded | Metal Composite | - | ±20% | - | 17.5A | Shielded | 11.8mOhm Max | - | 100kHz | AEC-Q200 | -40°C ~ 125°C | - | High Current, Low Loss | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.110" (2.80mm) |
|
|
PIM2R2M0603A3MOLDED IND 2.2 UH M 8A 0603 |
1,000 |
|
Datasheet |
PIM-0603A3 | - | Strip | Active | Molded | Metal Composite | - | ±20% | - | 10A | Shielded | 15mOhm Max | - | 100kHz | - | -40°C ~ 125°C | - | High Current, Low Loss | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.110" (2.80mm) |
|
|
PIM100M0603A3MOLDED IND 10 UH M 4A 0603 |
1,000 |
|
Datasheet |
PIM-0603A3 | - | Strip | Active | Molded | Metal Composite | - | ±20% | - | 5.5A | Shielded | 68mOhm Max | - | 100kHz | - | -40°C ~ 125°C | - | High Current, Low Loss | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.110" (2.80mm) |
|
|
SMF252012A-R33MHFMolded Inductor.33uH7.8mOhm9.5A |
1,000 |
|
Datasheet |
SMF252010A | 1008 (2520 Metric) | Strip | Active | Molded | Metal | 330 nH | ±20% | 8 A | 9.5A | Unshielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
SMF252010A-R47MHFMolded Inductor.47uH 15.5mOhm 6A |
1,000 |
|
Datasheet |
SMF252010A | 1008 (2520 Metric) | Strip | Active | Molded | Metal | 470 nH | ±20% | 5.5 A | 6A | Unshielded | 18mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
SMF252010A-1R0MHFMolded Inductor 1uH 22.5mOhm 5A |
1,000 |
|
Datasheet |
SMF252010A | 1008 (2520 Metric) | Strip | Active | Molded | Metal | 1 µH | ±20% | 4.5 A | 5A | Unshielded | 26mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
SMF252010A-2R2MHFMolded Inductor2.2uH 60mOhm 3.2A |
1,000 |
|
Datasheet |
SMF252010A | 1008 (2520 Metric) | Strip | Active | Molded | Metal | 2.2 µH | ±20% | 2.5 A | 3.2A | Unshielded | 70mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
CTMPC080605F-1R0M1.0UH SMD SHLDED POWER INDUCTOR |
4,082 |
|
Datasheet |
CTMPC080605F | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 2.3 A | 3.1A | Shielded | 82mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
|
CTMPC080605F-R47M0.47UH SMD SHLDED POWER INDUCTOR |
4,259 |
|
Datasheet |
CTMPC080605F | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 3.2 A | 3.8A | Shielded | 52mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
|
CTMPC080605F-1R5M1.5UH SMD SHLDED POWER INDUCTOR |
4,049 |
|
Datasheet |
CTMPC080605F | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 2.2 A | 2.6A | Shielded | 120mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
|
CTMPC080605F-R24M0.24UH SMD SHLDED POWER INDUCTOR |
4,700 |
|
Datasheet |
CTMPC080605F | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | - | 240 nH | ±20% | 4.2 A | 5.5A | Shielded | 35mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
CT1008LDLSF-3R3JSMD FER CORE WIRE-WOUND INDUCTOR |
2,468 |
|
Datasheet |
ct1008ldlsf | - | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±5% | - | - | - | 210mOhm | - | 54MHz | - | -25°C ~ 105°C | - | - | Surface Mount | - | - | - |
|
|
CT1008LDLSF-2R2JSMD FER CORE WIRE-WOUND INDUCTOR |
3,193 |
|
Datasheet |
ct1008ldlsf | - | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±5% | - | - | - | 155mOhm | - | 75MHz | - | -25°C ~ 105°C | - | - | Surface Mount | - | - | - |
|
|
CT1008LDLSF-100JSMD FER CORE WIRE-WOUND INDUCTOR |
3,562 |
|
Datasheet |
ct1008ldlsf | - | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±5% | - | - | - | 480mOhm | - | 20MHz | - | -25°C ~ 105°C | - | - | Surface Mount | - | - | - |
