Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTTF0402F-7N2BFIXED IND 7.2NH0.2NH SMD |
115 |
|
Datasheet |
CTTF0402F | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 7.2 nH | ±0.1nH | 260 mA | - | Unshielded | 900mOhm Max | 13 @ 500MHz | 6GHz | - | -40°C ~ 85°C | 500 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.40mm) |
|
|
CTTF0402F-5N9BFIXED IND 5.9NH0.1NH SMD |
115 |
|
Datasheet |
CTTF0402F | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 5.9 nH | ±0.1nH | 280 mA | - | Unshielded | 700mOhm Max | 13 @ 500MHz | 6GHz | - | -40°C ~ 85°C | 500 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.40mm) |
|
|
CTTF0402F-20N8GFIXED IND 20.8NH2% SMD |
108 |
|
Datasheet |
CTTF0402F | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 20.8 nH | ±2% | 90 mA | - | Unshielded | 2.6Ohm Max | 13 @ 500MHz | 2.8GHz | - | -40°C ~ 85°C | 500 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.40mm) |
|
SCDA2D15MTL3R3FIXED IND 3.3UH 1.24A 91MOHM SMD |
1,000 |
|
Datasheet |
SCDA | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 1.24 A | - | Shielded | 91mOhm | - | - | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.063" (1.60mm) |
|
|
SCDA2D15MTH3R3FIXED IND 3.3UH 1.1A 149MOHM SMD |
1,000 |
|
Datasheet |
SCDA | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 1.1 A | - | Shielded | 149mOhm | - | - | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.063" (1.60mm) |
|

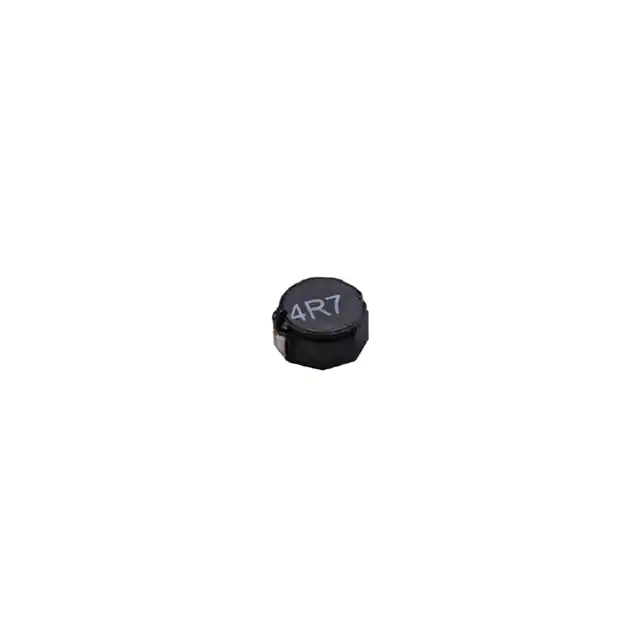

SDRH0830NT100FIXED IND 10UH 2.5A 47 MOHM SMD |
1,000 |
|
Datasheet |
SDRH | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±30% | 2.5 A | - | Shielded | 47mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
CTML0603F-R22K220N FER MULTIL SHLD INDUCTOR |
348 |
|
Datasheet |
CTML0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 220 nH | ±10% | 50 mA | - | Shielded | 800mOhm Max | 15 @ 25MHz | 150MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
WRFI0402-S-18NJT-CTWirewound RF Inductor,0402,18nH, |
875 |
|
Datasheet |
WRFI | 0402 (1005 Metric) | Strip | Active | Wirewound | Ceramic | 18 nH | ±5% | 420 mA | - | - | 230mOhm | 25 @ 250MHz | 3.1GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
|
WRFI0402-S-39NGT-CTWirewound RF Inductor,0402,39nH, |
1,000 |
|
Datasheet |
WRFI | 0402 (1005 Metric) | Strip | Active | Wirewound | Ceramic | 39 nH | ±2% | 200 mA | - | - | 550mOhm | 25 @ 250MHz | 2.1GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
|
XFTPRH4018-102MFIXED IND 1000UH 0.13A 18.24 OHM |
1,000 |
|
- |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±20% | 130 mA | - | Shielded | 15.2Ohm Max | - | - | - | -40°C ~ 105°C | - | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.071" (1.80mm) |
|
CTLL1005F-FH1N0S1NH SMD CER CORE MULT INDUCTOR |
876 |
|
- |
CTLL1005F | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 1 nH | ±0.3nH | 300 mA | - | Unshielded | 70mOhm Max | 8 @ 100MHz | 10GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
|
CTLL1005F-FH33NJ33NH SMD CER CORE MULT INDUCTOR |
400 |
|
- |
CTLL1005F | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 33 nH | ±5% | 200 mA | - | Unshielded | 900mOhm Max | 8 @ 100MHz | 1.8GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
|
NPMG1212E12MR68TRFFIXED IND SMT 680 nH 7 A 16mOhm |
1,000 |
|
Datasheet |
NPMG | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 7 A | 7A | Shielded | 16mOhm Max | - | 49MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.079" (2.00mm) |
|
CTML0805F-R12K120NH FER MULTIL SHLD INDUCTOR |
805 |
|
Datasheet |
CTML0805F | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 120 nH | ±10% | 250 mA | - | Shielded | 300mOhm Max | 20 @ 25MHz | 220MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.10mm) |
|
|
CTML0805F-4R7K4.7UH FER MULTIL SHLD INDUCTOR |
612 |
|
Datasheet |
CTML0805F | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 4.7 µH | ±10% | 15 mA | - | Shielded | 1Ohm Max | 45 @ 10MHz | 35MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
NPIM74PA6R8MTRQYFIND SMT 7.3X6.6X2.86.8UH4.5A6 |
985 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | Metal Composite | 6.8 µH | - | - | 8A | Shielded | 60mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | - | High Current | - | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.110" (2.80mm) |
|
CT0402CSF-4N7JSMD CER CORE WIRE-WOUND INDUCTOR |
770 |
|
Datasheet |
ct0402csf | - | Tape & Reel (TR) | Active | Multilayer | - | 4.7 nH | ±5% | - | - | - | 110mOhm | - | 5.8GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0402CSF-27NGSMD CER CORE WIRE-WOUND INDUCTOR |
645 |
|
Datasheet |
ct0402csf | - | Tape & Reel (TR) | Active | Multilayer | - | 27 nH | ±2% | - | - | - | 360mOhm | - | 2.5GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0402CSF-2N4KSMD CER CORE WIRE-WOUND INDUCTOR |
500 |
|
Datasheet |
ct0402csf | - | Tape & Reel (TR) | Active | Multilayer | - | 2.4 nH | ±10% | - | - | - | 70mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0402CSF-3N3KSMD CER CORE WIRE-WOUND INDUCTOR |
500 |
|
Datasheet |
ct0402csf | - | Tape & Reel (TR) | Active | Multilayer | - | 3.3 nH | ±10% | - | - | - | 60mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
