Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PFC212236A-101K105uH to 1000uH, 10% , 14.5mOhm |
4,592 |
|
Datasheet |
PFC212236A | Radical, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | Alloy | 105 µH | ±10% | 28.3 A | 55.5A | Shielded | 14.5mOhm | - | - | - | -55°C ~ 130°C | - | - | Through Hole | - | - | 2.370" (60.20mm) |
|
|
PFC212236A-102K1000uH, 10%, 106.5mOhm, 18.0Amp |
3,162 |
|
Datasheet |
PFC212236A | Radical, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | Alloy | 1000 µH | ±10% | 9.2 A | 18A | Shielded | 106.5mOhm | - | - | - | -55°C ~ 130°C | - | - | Through Hole | - | - | 2.370" (60.20mm) |
|
|
PFC282820B-331MHFPFC CHOKE 330.0UH, 14.6A, 51.6M |
2,103 |
|
Datasheet |
- | Radial, Horizontal, 4 Leads | Bulk | Active | Wirewound | Alloy Powder | 330 µH | ±20% | 7.7 A | 7.5A | Unshielded | 51.6mOhm | - | - | - | -55°C ~ 150°C | 100 kHz | - | Through Hole | Radial | 1.083" L x 0.787" W (27.50mm x 20.00mm) | 1.102" (28.00mm) |
|
|
PFC282820B-500MHFPFC CHOKE 50.0UH, 37.9A, 6.8 M |
2,797 |
|
Datasheet |
- | Radial, Horizontal, 4 Leads | Bulk | Active | Wirewound | Alloy Powder | 50 µH | ±20% | 21 A | 19.5A | Unshielded | 6.8mOhm | - | - | - | -55°C ~ 150°C | 100 kHz | - | Through Hole | Radial | 1.083" L x 0.787" W (27.50mm x 20.00mm) | 1.102" (28.00mm) |
|

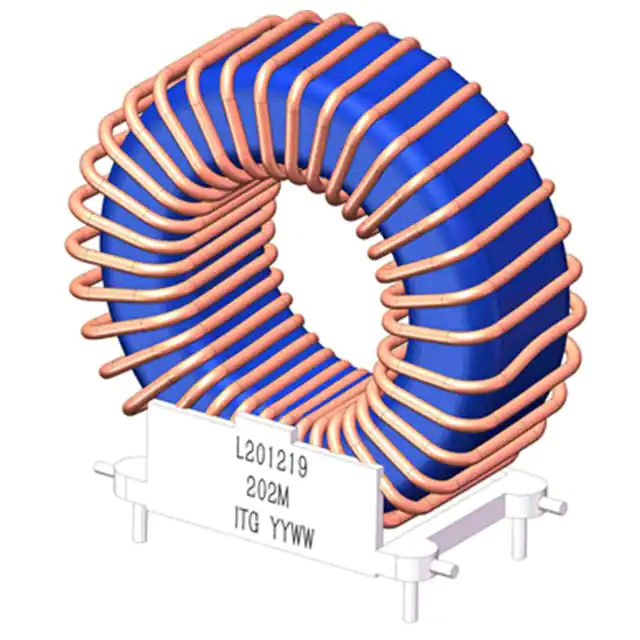

L201219-630MHF62.8uH, 20%, 9.1 mOhm DCR, 17A D |
3,946 |
|
Datasheet |
L201219 | Radial, Vertical Cylinder, 4 Leads (Open) | Bulk | Active | Toroidal | Alloy Powder | 62.8 µH | ±20% | 17 A | 12A | Unshielded | 9.1mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Through Hole | - | 1.319" L x 0.787" W (33.50mm x 20.00mm) | 1.457" (37.00mm) |
|
|
L201219-400MHF40.2uH, 20%, 4.8 mOhm DCR, 24A D |
2,707 |
|
Datasheet |
L201219 | Radial, Vertical Cylinder, 4 Leads (Open) | Bulk | Active | Toroidal | Alloy Powder | 40.2 µH | ±20% | 24 A | 15A | Unshielded | 4.8mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Through Hole | - | 1.358" L x 0.669" W (34.50mm x 17.00mm) | 1.260" (32.00mm) |
|
|
L201219-251MHF251.2uH, 20%, 28 mOhm DCR, 9A DI |
2,472 |
|
Datasheet |
L201219 | Radial, Vertical Cylinder, 4 Leads (Open) | Bulk | Active | Toroidal | Alloy Powder | 251.2 µH | ±20% | 9 A | 6A | Unshielded | 28mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Through Hole | - | 1.319" L x 0.787" W (33.50mm x 20.00mm) | 1.457" (37.00mm) |
|
|
L201219-113MHF11360uH, 20%, 1250 mOhm DCR, 1.2 |
4,943 |
|
Datasheet |
L201219 | Radial, Vertical Cylinder, 4 Leads (Open) | Bulk | Active | Toroidal | Alloy Powder | 11.36 mH | ±20% | 1.2 A | 880mA | Unshielded | 1.25Ohm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Through Hole | - | 1.319" L x 0.787" W (33.50mm x 20.00mm) | 1.457" (37.00mm) |
|
|
L201219-202MHF1970uH, 20%, 195 mOhm DCR, 3.3A |
2,657 |
|
Datasheet |
L201219 | Radial, Vertical Cylinder, 4 Leads (Open) | Bulk | Active | Toroidal | Alloy Powder | 1.97 mH | ±20% | 3.3 A | 2.1A | Unshielded | 195mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Through Hole | - | 1.319" L x 0.787" W (33.50mm x 20.00mm) | 1.457" (37.00mm) |
|
|
CPEX3635L-150MCTHT HIGH CURRENT POWER INDUCTOR |
4,141 |
|
Datasheet |
CPEX3635L | Nonstandard | Tray | Active | Wirewound | Metal Composite | 15 µH | ±20% | 62 A | 71A | Shielded | 1.15mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | - | 1.417" L x 1.406" W (36.00mm x 35.70mm) | 1.346" (34.20mm) |
|
RI425FIXED IND 250UH 25A 4 MOHM TH |
2,052 |
|
Datasheet |
RI | Radial, Vertical | Tray | Obsolete | - | - | 250 µH | - | 25 A | - | Unshielded | 4mOhm | - | - | - | -25°C ~ 110°C | 1 kHz | - | Through Hole | - | 1.890" L x 1.890" W (48.00mm x 48.00mm) | 1.693" (43.00mm) |
|
|
CPEA3635L-950MCTHT HIGH CURRENT POWER INDUCTOR |
1,716 |
|
Datasheet |
CPEA3635L | Radial, Horizontal (Open) | Tray | Active | Wirewound | Metal Composite | 95 µH | ±20% | 32 A | 14.5A | Shielded | 7.41mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | Flat Wire, High Current | Through Hole | Radial, Horizontal (Open) | 1.437" L x 1.405" W (36.50mm x 35.69mm) | 1.346" (34.20mm) |
|
|
CPEA3635L-560MCTHT HIGH CURRENT POWER INDUCTOR |
3,269 |
|
Datasheet |
CPEA3635L | Radial, Horizontal (Open) | Tray | Active | Wirewound | Metal Composite | 56 µH | ±20% | 41 A | 19A | Shielded | 3.83mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | Flat Wire, High Current | Through Hole | Radial, Horizontal (Open) | 1.437" L x 1.405" W (36.50mm x 35.69mm) | 1.346" (34.20mm) |
|
|
CPEA3635L-8R6MCTHT HIGH CURRENT POWER INDUCTOR |
2,196 |
|
Datasheet |
CPEA3635L | Radial, Horizontal (Open) | Tray | Active | Wirewound | Metal Composite | 8.6 µH | ±20% | 73 A | 48A | Shielded | 0.61mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | Flat Wire, High Current | Through Hole | Radial, Horizontal (Open) | 1.437" L x 1.405" W (36.50mm x 35.69mm) | 1.346" (34.20mm) |
|
|
CPEA3635L-270MCTHT HIGH CURRENT POWER INDUCTOR |
4,174 |
|
Datasheet |
CPEA3635L | Radial, Horizontal (Open) | Tray | Active | Wirewound | Metal Composite | 27 µH | ±20% | 54 A | 27A | Shielded | 1.78mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | Flat Wire, High Current | Through Hole | Radial, Horizontal (Open) | 1.437" L x 1.405" W (36.50mm x 35.69mm) | 1.346" (34.20mm) |
|
|
CPEA3635L-110MCTHT HIGH CURRENT POWER INDUCTOR |
1,283 |
|
Datasheet |
CPEA3635L | Radial, Horizontal (Open) | Tray | Active | Wirewound | Metal Composite | 11 µH | ±20% | 71 A | 42.5A | Shielded | 0.74mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | Flat Wire, High Current | Through Hole | Radial, Horizontal (Open) | 1.437" L x 1.405" W (36.50mm x 35.69mm) | 1.346" (34.20mm) |
|
|
CPEA3635L-6R8MCTHT HIGH CURRENT POWER INDUCTOR |
1,338 |
|
Datasheet |
CPEA3635L | Radial, Horizontal (Open) | Tray | Active | Wirewound | Metal Composite | 6.8 µH | ±20% | 107 A | 54A | Shielded | 0.46mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | Flat Wire, High Current | Through Hole | Radial, Horizontal (Open) | 1.437" L x 1.405" W (36.50mm x 35.69mm) | 1.346" (34.20mm) |
|
|
CPEA3635L-4R7MCTHT HIGH CURRENT POWER INDUCTOR |
1,647 |
|
Datasheet |
CPEA3635L | Radial, Horizontal (Open) | Tray | Active | Wirewound | Metal Composite | 4.7 µH | ±20% | 120 A | 65A | Shielded | 0.36mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | Flat Wire, High Current | Through Hole | Radial, Horizontal (Open) | 1.437" L x 1.405" W (36.50mm x 35.69mm) | 1.346" (34.20mm) |
|
|
CPEA3635L-160MCTHT HIGH CURRENT POWER INDUCTOR |
3,070 |
|
Datasheet |
CPEA3635L | Radial, Horizontal (Open) | Tray | Active | Wirewound | Metal Composite | 16 µH | ±20% | 62 A | 35A | Shielded | 1.15mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | Flat Wire, High Current | Through Hole | Radial, Horizontal (Open) | 1.437" L x 1.405" W (36.50mm x 35.69mm) | 1.346" (34.20mm) |
|
|
CPEA3635L-111MCTHT HIGH CURRENT POWER INDUCTOR |
1,530 |
|
Datasheet |
CPEA3635L | Radial, Horizontal (Open) | Tray | Active | Wirewound | Metal Composite | 110 µH | ±20% | 30 A | 13A | Shielded | 7.41mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | Flat Wire, High Current | Through Hole | Radial, Horizontal (Open) | 1.437" L x 1.405" W (36.50mm x 35.69mm) | 1.346" (34.20mm) |
