Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CPEX3231S-3R2MCTHT HIGH CURRENT POWER INDUCTOR |
3,049 |
|
Datasheet |
CPEX3231S | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 3.2 µH | ±20% | 84 A | 148A | Shielded | 0.47mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 1.268" L x 1.240" W (32.20mm x 31.50mm) | 1.201" (30.50mm) |
|
|
CPEA3231L-100MCTHT HIGH CURRENT POWER INDUCTOR |
2,960 |
|
Datasheet |
CPEA3231L | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 10 µH | ±20% | 55 A | 39A | Shielded | 1.06mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 1.268" L x 1.240" W (32.20mm x 31.50mm) | 1.201" (30.50mm) |
|
|
CPEX3231S-300MCTHT HIGH CURRENT POWER INDUCTOR |
4,653 |
|
Datasheet |
CPEX3231S | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 30 µH | ±20% | 30 A | 49A | Shielded | 3.73mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 1.268" L x 1.240" W (32.20mm x 31.50mm) | 1.201" (30.50mm) |
|
|
CPEX3231S-7R5MCTHT HIGH CURRENT POWER INDUCTOR |
1,384 |
|
Datasheet |
CPEX3231S | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 7.5 µH | ±20% | 55 A | 98A | Shielded | 1.06mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 1.268" L x 1.240" W (32.20mm x 31.50mm) | 1.201" (30.50mm) |
|
|
CPEX3231H-2R0MCTHT HIGH CURRENT POWER INDUCTOR |
1,741 |
|
Datasheet |
CPEX3231H | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 2 µH | ±20% | 84 A | 290A | Shielded | 0.47mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 1.268" L x 1.240" W (32.20mm x 31.50mm) | 1.201" (30.50mm) |
|
|
CPEX3231H-4R7MCTHT HIGH CURRENT POWER INDUCTOR |
1,334 |
|
Datasheet |
CPEX3231H | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 4.7 µH | ±20% | 55 A | 195A | Shielded | 1.06mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 1.268" L x 1.240" W (32.20mm x 31.50mm) | 1.201" (30.50mm) |
|
CPQ4228-330MTHT HIGH CURRENT POWER INDUCTOR |
4,769 |
|
Datasheet |
CPQ4228 | Nonstandard | Tray | Active | Wirewound | Ferrite | 33 µH | ±20% | 34 A | 24.7A | Shielded | 2.95mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Flat Wire, High Current | Through Hole | Vertical, 4 PC Pin | 1.654" L x 1.409" W (42.00mm x 35.80mm) | 1.142" (29.00mm) |
|
|
CPQ4228-471MTHT HIGH CURRENT POWER INDUCTOR |
1,169 |
|
Datasheet |
CPQ4228 | Nonstandard | Tray | Active | Wirewound | Ferrite | 470 µH | ±20% | 17.5 A | 3.6A | Shielded | 11.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Flat Wire, High Current | Through Hole | Vertical, 4 PC Pin | 1.654" L x 1.409" W (42.00mm x 35.80mm) | 1.142" (29.00mm) |
|
|
L301308-351K350uH, 10%, 40.0mOhm, 13.7A. Max |
4,684 |
|
Datasheet |
L301308 | Horizontal, 4 PC Pin | Tray | Active | Toroidal | Sendust | 350 µH | ±10% | 13.7 A | 13.7A | Unshielded | 40mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Through Hole | Horizontal, 4 PC Pin | 2.106" L x 2.106" W (53.50mm x 53.50mm) | 1.260" (32.00mm) |
|
|
CPQ4228-470MTHT HIGH CURRENT POWER INDUCTOR |
2,854 |
|
Datasheet |
CPQ4228 | Nonstandard | Tray | Active | Wirewound | Ferrite | 47 µH | ±20% | 34 A | 17.6A | Shielded | 2.95mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Flat Wire, High Current | Through Hole | Vertical, 4 PC Pin | 1.654" L x 1.409" W (42.00mm x 35.80mm) | 1.142" (29.00mm) |
|
|
CPQ4228-221MTHT HIGH CURRENT POWER INDUCTOR |
2,683 |
|
Datasheet |
CPQ4228 | Nonstandard | Tray | Active | Wirewound | Ferrite | 220 µH | ±20% | 17.5 A | 7.2A | Shielded | 11.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Flat Wire, High Current | Through Hole | Vertical, 4 PC Pin | 1.654" L x 1.409" W (42.00mm x 35.80mm) | 1.142" (29.00mm) |
|

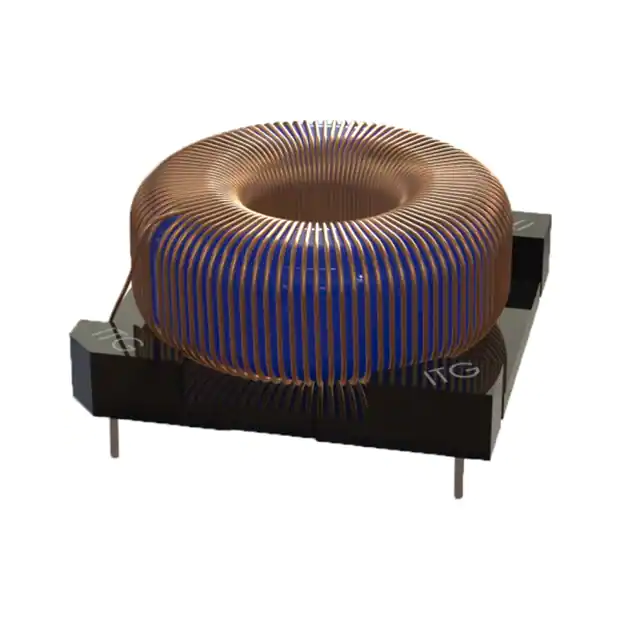

L301307-452KFIXED IND 4.5MH 2.4A 350MOHM TH |
3,051 |
|
Datasheet |
L301307 | Radial, Horizontal, 4 Leads (Open) | Tray | Active | Toroidal | Sendust | 4.5 mH | ±10% | 2.4 A | 920mA | Unshielded | 350mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Through Hole | - | 1.713" L x 1.713" W (43.50mm x 43.50mm) | 0.984" (25.00mm) |
|
|
L301307-542KFIXED IND 5.4MH 2.1A 480MOHM TH |
4,132 |
|
Datasheet |
L301307 | Radial, Horizontal, 4 Leads (Open) | Tray | Active | Toroidal | Sendust | 5.4 mH | ±10% | 2.1 A | 900mA | Unshielded | 480mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Through Hole | - | 1.713" L x 1.713" W (43.50mm x 43.50mm) | 0.984" (25.00mm) |
|
|
L301307-182KFIXED IND 1.8MH 4A 125 MOHM TH |
2,507 |
|
Datasheet |
L301307 | Radial, Horizontal, 4 Leads (Open) | Tray | Active | Toroidal | Sendust | 1.8 mH | ±10% | 4 A | 1.5A | Unshielded | 125mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Through Hole | - | 1.713" L x 1.713" W (43.50mm x 43.50mm) | 1.102" (28.00mm) |
|
|
L301307-702KFIXED IND 7MH 1.8A 650 MOHM TH |
3,142 |
|
Datasheet |
L301307 | Radial, Horizontal, 4 Leads (Open) | Tray | Active | Toroidal | Sendust | 7 mH | ±10% | 1.8 A | 700mA | Unshielded | 650mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Through Hole | - | 1.713" L x 1.713" W (43.50mm x 43.50mm) | 0.984" (25.00mm) |
|
|
L301308-821K820uH, 10%, 81.0mOhm, 8.9A. Max. |
2,866 |
|
Datasheet |
L301308 | Horizontal, 4 PC Pin | Tray | Active | Toroidal | Alloy | 820 µH | ±10% | 9.5 A | 8.9A | Unshielded | 81mOhm | - | - | - | -55°C ~ 130°C | 10 kHz | - | Through Hole | SMD | 2.106" L x 2.106" W (53.50mm x 53.50mm) | 1.260" (32.00mm) |
|
|
L301308-102K1.0mH, 10%, 106.5mOhm, 8.1A. Max |
3,279 |
|
Datasheet |
L301308 | Horizontal, 4 PC Pin | Tray | Active | Toroidal | Sendust | 1 mH | ±10% | 8.3 A | 8.1A | Unshielded | 106.5mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Through Hole | Horizontal, 4 PC Pin | 2.106" L x 2.106" W (53.50mm x 53.50mm) | 1.260" (32.00mm) |
|
|
L301308-201K205uH, 10%, 20.5mOhm, 17.9A. Max |
2,799 |
|
Datasheet |
L301308 | Horizontal, 4 PC Pin | Tray | Active | Toroidal | Alloy | 205 µH | ±10% | 21 A | 17.9A | Unshielded | 20.5mOhm | - | - | - | -55°C ~ 130°C | 10 kHz | - | Through Hole | SMD | 2.106" L x 2.106" W (53.50mm x 53.50mm) | 1.378" (35.00mm) |
|

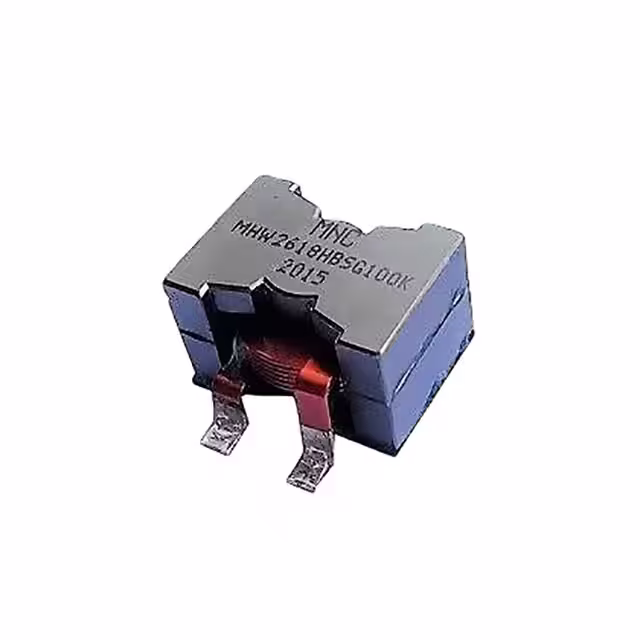

MHW2618HBSG100KFIXED IND 10UH 28A 2.86 MOHM SMD |
4,976 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 10 µH | ±10% | 28 A | 31.2A | - | 2.86mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 1.098" L x 1.098" W (27.94mm x 27.94mm) | 0.700" (17.78mm) |
|

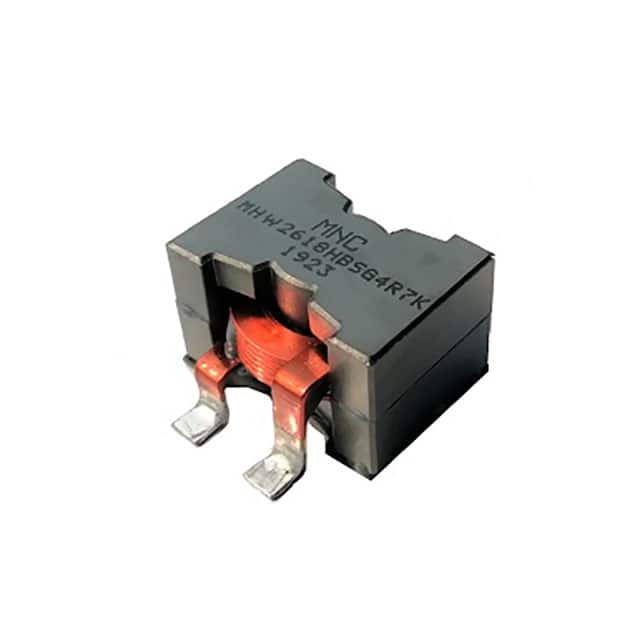

MHW2618HBSG4R7KFIXED IND 4.7UH 28A 2.86MOHM SMD |
2,965 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 4.7 µH | ±10% | 28 A | 61.2A | - | 2.86mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 1.098" L x 1.098" W (27.94mm x 27.94mm) | 0.700" (17.78mm) |
