Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DMP282829A-111MHFFLAT WIRE DIP 115UH 11.9M 16.8A |
2,780 |
|
Datasheet |
DMP282829A | Radial, Horizontal, 4 Leads | Bulk | Active | Wirewound | Alloy Powder | 115 µH | ±20% | 16.5 A | 7.6A | Unshielded | 11.9mOhm | - | - | - | -55°C ~ 150°C | 100 kHz | - | Through Hole | Radial | 1.083" L x 1.122" W (27.50mm x 28.50mm) | 1.102" (28.00mm) |
|

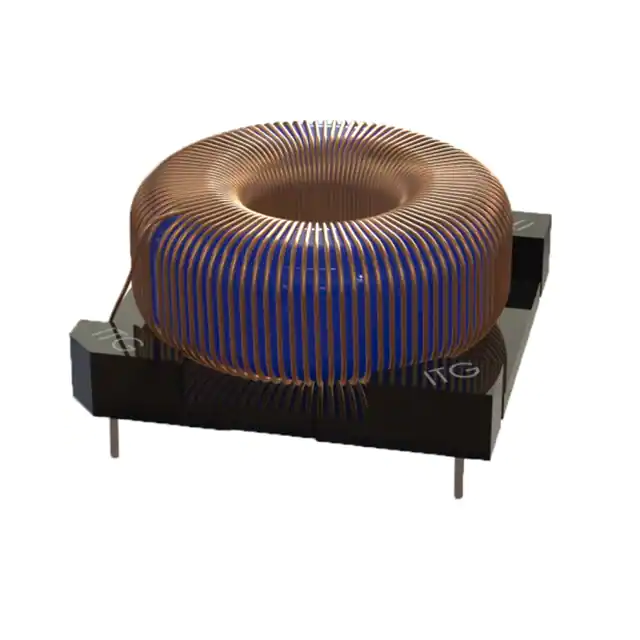

L301308-542KFIXED IND 5.4MH 2.2A 820MOHM TH |
3,156 |
|
Datasheet |
L301308 | Radial, Horizontal, 4 Leads (Open) | Tray | Active | Toroidal | Alloy | 5.4 mH | ±10% | 2.2 A | 3.5A | Unshielded | 820mOhm | - | - | - | -55°C ~ 130°C | 10 kHz | - | Through Hole | SMD | 2.106" L x 2.106" W (53.50mm x 53.50mm) | 1.201" (30.50mm) |
|
|
L301308-702KFIXED IND 7MH 1.9A 1.1 OHM TH |
2,385 |
|
Datasheet |
L301308 | Radial, Horizontal, 4 Leads (Open) | Tray | Active | Toroidal | Alloy | 7 mH | ±10% | 1.9 A | 3A | Unshielded | 1.1Ohm | - | - | - | -55°C ~ 130°C | 10 kHz | - | Through Hole | SMD | 2.106" L x 2.106" W (53.50mm x 53.50mm) | 1.201" (30.50mm) |
|
|
L301308-332KFIXED IND 3.3MH 3.2A 410MOHM TH |
1,458 |
|
Datasheet |
L301308 | Radial, Horizontal, 4 Leads (Open) | Tray | Active | Toroidal | Alloy | 3.3 mH | ±10% | 3.2 A | 4.4A | Unshielded | 410mOhm | - | - | - | -55°C ~ 130°C | 10 kHz | - | Through Hole | SMD | 2.106" L x 2.106" W (53.50mm x 53.50mm) | 1.220" (31.00mm) |
|
|
L301308-452KFIXED IND 4.5MH 2.5A 636MOHM TH |
3,136 |
|
Datasheet |
L301308 | Radial, Horizontal, 4 Leads (Open) | Tray | Active | Toroidal | Alloy | 4.5 mH | ±10% | 2.5 A | 3.8A | Unshielded | 636mOhm | - | - | - | -55°C ~ 130°C | 10 kHz | - | Through Hole | SMD | 2.106" L x 2.106" W (53.50mm x 53.50mm) | 1.220" (31.00mm) |
|
|
158TADC REACTOR, FILTER CHOKE, OPEN C |
2,304 |
|
Datasheet |
158 | Nonstandard | Bulk | Active | Wirewound | - | 1.5 H | ±15% | 300 mA | - | Unshielded | 40Ohm | - | - | - | - | - | - | Chassis Mount | - | 3.250" L x 2.000" W (82.55mm x 50.80mm) | - |
|
L201204-102MHFFIXED IND 1MH 8.2A 88 MOHM TH |
3,962 |
|
Datasheet |
L201204 | Radial, Vertical Cylinder, 4 Leads (Open) | Tray | Active | Toroidal | Alloy Powder | 1 mH | ±20% | 8.2 A | 5.4A | Unshielded | 88mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Through Hole | - | 2.126" L x 0.992" W (54.00mm x 25.20mm) | 2.193" (55.70mm) |
|
|
L201204-162MHFFIXED IND 1.634MH 5.6A 186 MOHM |
1,116 |
|
Datasheet |
L201204 | Radial, Vertical Cylinder, 4 Leads (Open) | Tray | Active | Toroidal | Alloy Powder | 1.634 mH | ±20% | 5.6 A | 4.2A | Unshielded | 186mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Through Hole | - | 2.106" L x 1.043" W (53.50mm x 26.50mm) | 2.165" (55.00mm) |
|
|
L201204-161MHFFIXED IND 165UH 17A 23.5MOHM TH |
1,665 |
|
Datasheet |
L201204 | Radial, Vertical Cylinder, 4 Leads (Open) | Tray | Active | Toroidal | Alloy Powder | 165 µH | ±20% | 17 A | 13A | Unshielded | 23.5mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Through Hole | - | 2.106" L x 1.043" W (53.50mm x 26.50mm) | 2.165" (55.00mm) |
|
|
L201204-101MHFFIXED IND 106UH 24A 12.5MOHM TH |
3,980 |
|
Datasheet |
L201204 | Radial, Vertical Cylinder, 4 Leads (Open) | Tray | Active | Toroidal | Alloy Powder | 106 µH | ±20% | 24 A | 16A | Unshielded | 12.5mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Through Hole | - | 2.146" L x 1.004" W (54.50mm x 25.50mm) | 2.067" (52.50mm) |
|
|
PFC199224B-351KPFC CHOKE 350.0UH 25.3A 38.0 M |
1,907 |
|
Datasheet |
PFC199224B | Vertical, 4 PC Pin | Bulk | Active | Toroidal | Alloy Powder | 350 µH | ±10% | 12.5 A | 13.2A | Unshielded | 38mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Through Hole | - | 1.969" L x 1.063" W (50.00mm x 27.00mm) | 2.224" (56.50mm) |
|
|
CPEX3635S-620MCTHT HIGH CURRENT POWER INDUCTOR |
2,523 |
|
Datasheet |
CPEX3635S | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 62 µH | ±20% | 32 A | 41A | Shielded | 6.15mOhm Max | - | - | - | -55°C ~ 155°C | - | Low DCR, Soft Saturation | Through Hole | - | 1.417" L x 1.406" W (36.00mm x 35.70mm) | 1.346" (34.20mm) |
|
|
CPEX3635S-4R3MCTHT HIGH CURRENT POWER INDUCTOR |
2,024 |
|
Datasheet |
CPEX3635S | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 4.3 µH | ±20% | 107 A | 150A | Shielded | 0.46mOhm Max | - | - | - | -55°C ~ 155°C | - | Low DCR, Soft Saturation | Through Hole | - | 1.417" L x 1.406" W (36.00mm x 35.70mm) | 1.346" (34.20mm) |
|
|
CPEX3635S-750MCTHT HIGH CURRENT POWER INDUCTOR |
1,553 |
|
Datasheet |
CPEX3635S | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 75 µH | ±20% | 30 A | 38A | Shielded | 7.41mOhm Max | - | - | - | -55°C ~ 155°C | - | Low DCR, Soft Saturation | Through Hole | - | 1.417" L x 1.406" W (36.00mm x 35.70mm) | 1.346" (34.20mm) |
|
|
CPEX3635S-5R6MCTHT HIGH CURRENT POWER INDUCTOR |
4,691 |
|
Datasheet |
CPEX3635S | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 5.6 µH | ±20% | 73 A | 130A | Shielded | 0.61mOhm Max | - | - | - | -55°C ~ 155°C | - | Low DCR, Soft Saturation | Through Hole | - | 1.417" L x 1.406" W (36.00mm x 35.70mm) | 1.346" (34.20mm) |
|
|
CPEX3635S-3R3MCTHT HIGH CURRENT POWER INDUCTOR |
1,796 |
|
Datasheet |
CPEX3635S | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 3.3 µH | ±20% | 120 A | 175A | Shielded | 0.36mOhm Max | - | - | - | -55°C ~ 155°C | - | Low DCR, Soft Saturation | Through Hole | - | 1.417" L x 1.406" W (36.00mm x 35.70mm) | 1.346" (34.20mm) |
|
|
CPEX3635S-180MCTHT HIGH CURRENT POWER INDUCTOR |
1,908 |
|
Datasheet |
CPEX3635S | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 18 µH | ±20% | 54 A | 75A | Shielded | 1.78mOhm Max | - | - | - | -55°C ~ 155°C | - | Low DCR, Soft Saturation | Through Hole | - | 1.417" L x 1.406" W (36.00mm x 35.70mm) | 1.346" (34.20mm) |
|
|
CPEX3635S-110MCTHT HIGH CURRENT POWER INDUCTOR |
3,154 |
|
Datasheet |
CPEX3635S | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 11 µH | ±20% | 62 A | 95A | Shielded | 1.15mOhm Max | - | - | - | -55°C ~ 155°C | - | Low DCR, Soft Saturation | Through Hole | - | 1.417" L x 1.406" W (36.00mm x 35.70mm) | 1.346" (34.20mm) |
|
|
CPEX3635S-370MCTHT HIGH CURRENT POWER INDUCTOR |
1,047 |
|
Datasheet |
CPEX3635S | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 37 µH | ±20% | 41 A | 53A | Shielded | 3.83mOhm Max | - | - | - | -55°C ~ 155°C | - | Low DCR, Soft Saturation | Through Hole | - | 1.417" L x 1.406" W (36.00mm x 35.70mm) | 1.346" (34.20mm) |
|
|
CPEX3635S-7R5MCTHT HIGH CURRENT POWER INDUCTOR |
2,771 |
|
Datasheet |
CPEX3635S | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 7.5 µH | ±20% | 71 A | 118A | Shielded | 0.74mOhm Max | - | - | - | -55°C ~ 155°C | - | Low DCR, Soft Saturation | Through Hole | - | 1.417" L x 1.406" W (36.00mm x 35.70mm) | 1.346" (34.20mm) |
