Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CPD1495-6R8MPOWER INDUCTOR FOR DIGITAL AMP |
2,038 |
|
Datasheet |
CPD1495 | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CPD1495-120MTHT CLASS D IND FOR DIGITAL AMP |
2,891 |
|
Datasheet |
CPD1495 | Nonstandard | Tray | Active | Wirewound | Ferrite | 12 µH | ±20% | 10 A | 12.5A | Shielded | 8mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | Low Loss, Soft Saturation | Through Hole | Radial | 0.551" L x 0.374" W (14.00mm x 9.50mm) | 0.630" (16.00mm) |
|
|
CPD1495-150MTHT CLASS D IND FOR DIGITAL AMP |
2,739 |
|
Datasheet |
CPD1495 | Nonstandard | Tray | Active | Wirewound | Ferrite | 15 µH | ±20% | 7.3 A | 9.5A | Shielded | 15.7mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | Low Loss, Soft Saturation | Through Hole | Radial | 0.551" L x 0.374" W (14.00mm x 9.50mm) | 0.630" (16.00mm) |
|
DLF-28-0006CMC 3A 2LN TH |
3,192 |
|
Datasheet |
DLF | Radial, Horizontal, 4 Leads | Bulk | Last Time Buy | - | - | 100 µH | ±15% | 3 A | - | Unshielded | 70mOhm | - | 7.5MHz | - | -40°C ~ 125°C | - | - | Through Hole | - | 1.114" L x 1.079" W (28.30mm x 27.40mm) | 0.657" (16.70mm) |
|
DLF-28-0004CMC 1.5A 2LN TH |
3,695 |
|
Datasheet |
DLF | Radial, Horizontal, 4 Leads | Bulk | Last Time Buy | - | - | 500 µH | ±15% | 1.5 A | - | Unshielded | 270mOhm | - | 1.2MHz | - | -40°C ~ 125°C | - | - | Through Hole | - | 1.114" L x 1.079" W (28.30mm x 27.40mm) | 0.657" (16.70mm) |
|
MPX1D1740LR68FIXED IND 680NH 32A 2 MOHM SMD |
4,183 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 680 nH | ±20% | 32 A | 55A | Shielded | 2mOhm Max | - | 38MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.157" (4.00mm) |
|
|
MPX1D1740L220FIXED IND 22UH 6.5A 46.4MOHM SMD |
3,745 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 22 µH | ±20% | 6.5 A | 10A | Shielded | 46.4mOhm Max | - | 5MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.157" (4.00mm) |
|
|
MPX1D1740L2R2FIXED IND 2.2UH 20.5A 5 MOHM SMD |
1,176 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.2 µH | ±20% | 20.5 A | 28A | Shielded | 5mOhm Max | - | 17MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.157" (4.00mm) |
|
CPD1415B-150MTHT CLASS D IND FOR DIGITAL AMP |
4,922 |
|
Datasheet |
CPD1415B | Nonstandard | Tray | Active | Wirewound | Ferrite | 15 µH | ±20% | 7 A | 9.3A | Shielded | 15.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | Low Loss, Soft Saturation | Through Hole | Vertical, 4 PC Pin | 0.610" L x 0.551" W (15.50mm x 14.00mm) | 0.630" (16.00mm) |
|

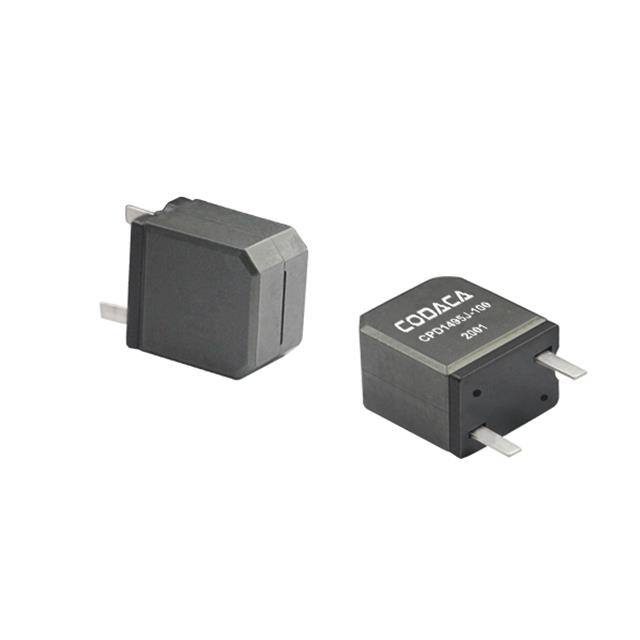

CPD1495J-100MTHT CLASS D IND FOR DIGITAL AMP |
2,560 |
|
Datasheet |
CPD1495J | Nonstandard | Tray | Active | Wirewound | Ferrite | 10 µH | ±20% | 7 A | 18A | Shielded | 16.2mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | Low Loss, Soft Saturation | Through Hole | Radial | 0.551" L x 0.374" W (14.00mm x 9.50mm) | 0.630" (16.00mm) |
|
CPD1715-330MTHT CLASS D IND FOR DIGITAL AMP |
2,747 |
|
Datasheet |
CPD1715 | Nonstandard | Tray | Active | Wirewound | Ferrite | 33 µH | ±20% | 8.2 A | 8A | Shielded | 14mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | Low Loss, Soft Saturation | Through Hole | Vertical, 4 PC Pin | 0.689" L x 0.591" W (17.50mm x 15.00mm) | 0.760" (19.30mm) |
|
PCM120T-R50N-DFIXED IND 500NH 50A 720MOHM SMD |
3,819 |
|
Datasheet |
PCM120T | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Metal | 500 nH | ±30% | 50 A | 58.7A | Shielded | 0.72mOhm | - | - | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.500" W (12.00mm x 12.70mm) | 0.453" (11.50mm) |
|
|
SER2915H-222KLFIXED IND 2.2UH 30A 2.05MOHM SM |
2,712 |
|
Datasheet |
SER2900 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±10% | 30 A | 100A | Shielded | 2.05mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 85°C | 500 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.605" (15.36mm) |
|
|
CPD1715-150MTHT CLASS D IND FOR DIGITAL AMP |
1,993 |
|
Datasheet |
CPD1715 | Nonstandard | Tray | Active | Wirewound | Ferrite | 15 µH | ±20% | 8.2 A | 18A | Shielded | 14mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | Low Loss, Soft Saturation | Through Hole | Vertical, 4 PC Pin | 0.689" L x 0.591" W (17.50mm x 15.00mm) | 0.760" (19.30mm) |
|
|
CSBX1809-1R3MSMD HIGH CURRENT POWER INDUCTOR |
3,294 |
|
Datasheet |
CSBX1809 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 1.3 µH | ±20% | 36 A | 67A | Shielded | 1mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.760" L x 0.717" W (19.30mm x 18.20mm) | 0.362" (9.20mm) |
|
CSBL1809-100MSMD HIGH CURRENT POWER INDUCTOR |
1,768 |
|
Datasheet |
CSBL1809 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 10 µH | ±20% | 16 A | 24A | Shielded | 6.9mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | Flat Wire, High Q Value | Surface Mount | - | 0.760" L x 0.717" W (19.30mm x 18.20mm) | 0.362" (9.20mm) |
|
AFA41405B-120L120.0NH, 15%, 0.23MOHM, 82.0A MA |
100 |
|
Datasheet |
AFA41405B | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 120 nH | ±15% | 85 A | 82A | Unshielded | 0.23mOhm Max | - | - | - | -55°C ~ 130°C | 500 kHz | - | Surface Mount | - | 0.402" L x 0.189" W (10.20mm x 4.80mm) | 0.394" (10.00mm) |
|
AFA41405Q-70L70.0NH, 15%, 0.23MOHM, 145.0A MA |
100 |
|
Datasheet |
AFA41405Q | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 70 nH | ±15% | 85 A | 145A | - | 230mOhm Max | - | - | AEC-Q200 | -55°C ~ 130°C | 500 kHz | - | Surface Mount | 2-SMD | 0.402" L x 0.189" W (10.20mm x 4.80mm) | 0.394" (10.00mm) |
|
|
CSCF2014-3R1MCSMD HIGH CURRENT POWER INDUCTOR |
100 |
|
Datasheet |
CSCF2014 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.1 µH | ±20% | 26 A | 45A | Shielded | 2.3mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Mn-Zn Ferrite Low Loss | Surface Mount | 3-SMD | 0.886" L x 0.858" W (22.50mm x 21.80mm) | 0.571" (14.50mm) |
|
|
CSCF2014-1R4MCSMD HIGH CURRENT POWER INDUCTOR |
100 |
|
Datasheet |
CSCF2014 | 3-SMD | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.4 µH | ±20% | 31 A | 60A | Shielded | 1.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Flat Wire, High Current | Surface Mount | 3-SMD | 0.886" L x 0.858" W (22.50mm x 21.80mm) | 0.570" (14.48mm) |
