Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTMMP6826AF-4R7MSMD Shielded Power Inductor |
2,479 |
|
Datasheet |
- | - | Bulk | Active | - | - | 4.7 µH | ±20% | 41 A | - | Shielded | 4.8mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.681" L x 0.665" W (17.30mm x 16.90mm) | 0.264" (6.70mm) |
|

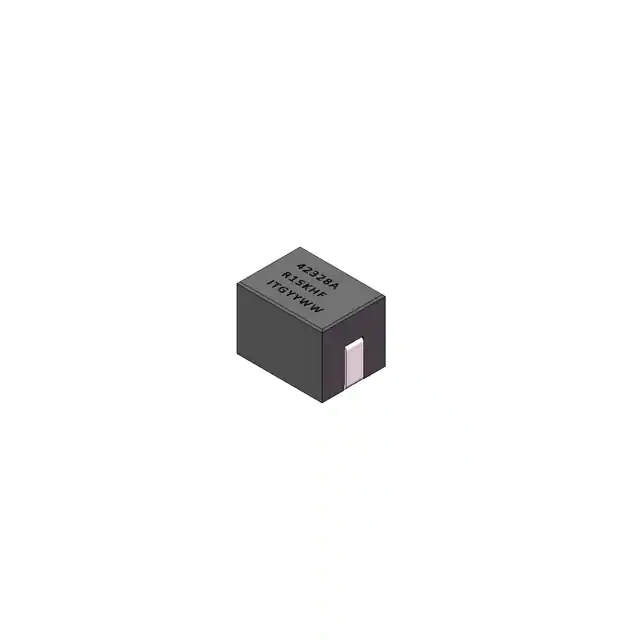

AH42328A-R22KHFFIXED IND 220NH 73A 0.18MOHM SMD |
2,212 |
|
Datasheet |
AH42328A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 nH | ±10% | 73 A | - | Shielded | 0.18mOhm | - | - | - | -55°C ~ 130°C | 500 kHz | - | Surface Mount | - | 0.421" L x 0.307" W (10.70mm x 7.80mm) | 0.315" (8.00mm) |
|
|
AH42328A-R15KHFFIXED IND 150NH 73A 0.18MOHM SMD |
1,767 |
|
Datasheet |
AH42328A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 nH | ±10% | 73 A | - | Shielded | 0.18mOhm | - | - | - | -55°C ~ 130°C | 500 kHz | - | Surface Mount | - | 0.421" L x 0.307" W (10.70mm x 7.80mm) | 0.315" (8.00mm) |
|
|
AH42328A-R12KHFFIXED IND 120NH 73A 0.18MOHM SMD |
1,202 |
|
Datasheet |
AH42328A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 120 nH | ±10% | 73 A | - | Shielded | 0.18mOhm | - | - | - | -55°C ~ 130°C | 500 kHz | - | Surface Mount | - | 0.421" L x 0.307" W (10.70mm x 7.80mm) | 0.319" (8.10mm) |
|
CTH9F-102M1000UH AXIAL PWR LINE INDUCTOR |
1,678 |
|
Datasheet |
CTH9F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | - | 1A | Unshielded | 550mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.500" Dia x 1.250" L (12.70mm x 31.75mm) | - |
|
|
CSBX1275-R60MFLAT WIRE HIGH CURRENT INDUCTOR |
100 |
|
Datasheet |
CSBX1275 | 2-SMD | Cut Tape (CT) | Active | Wirewound | Metal Composite | 0.6 µH | ±20% | 36 A | 80A | Shielded | 0.55mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.287" (7.30mm) |
|
|
CSBX1275-560MFLAT WIRE HIGH CURRENT INDUCTOR |
100 |
|
Datasheet |
CSBX1275 | 2-SMD | Cut Tape (CT) | Active | Wirewound | Metal Composite | 56 µH | ±20% | 4 A | 7.5A | Shielded | 69mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.287" (7.30mm) |
|
|
CSBX1275-390MFLAT WIRE HIGH CURRENT INDUCTOR |
100 |
|
Datasheet |
CSBX1275 | 2-SMD | Cut Tape (CT) | Active | Wirewound | Metal Composite | 39 µH | ±20% | 5.5 A | 9A | Shielded | 36mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.287" (7.30mm) |
|
|
CSBX1275-8R2MFLAT WIRE HIGH CURRENT INDUCTOR |
100 |
|
Datasheet |
CSBX1275 | 2-SMD | Cut Tape (CT) | Active | Wirewound | Metal Composite | 8.2 µH | ±20% | 12 A | 23A | Shielded | 8.1mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.287" (7.30mm) |
|
|
CSBX1275-180MFLAT WIRE HIGH CURRENT INDUCTOR |
100 |
|
Datasheet |
CSBX1275 | 2-SMD | Cut Tape (CT) | Active | Wirewound | Metal Composite | 18 µH | ±20% | 8.5 A | 14.5A | Shielded | 16.7mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.287" (7.30mm) |
|
|
CSBX1275-120MFLAT WIRE HIGH CURRENT INDUCTOR |
3,016 |
|
Datasheet |
CSBX1275 | 2-SMD | Cut Tape (CT) | Active | Wirewound | Metal Composite | 12 µH | ±20% | 10 A | 19.5A | Shielded | 11.7mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.287" (7.30mm) |
|
SLA36385A-150LPOWER BEAD 150NH 0.125MOHM 58A |
100 |
|
Datasheet |
SLA36385A | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Ferrite | 150 nH | ±15% | 63 A | 58A | - | 0.125mOhm | - | - | - | -55°C ~ 130°C | 500 kHz | - | Surface Mount | 2-SMD | 0.354" L x 0.197" W (9.00mm x 5.00mm) | 0.374" (9.50mm) |
|
|
SLA36385A-75LPOWER BEAD 75NH 0.125MOHM 110A |
100 |
|
Datasheet |
SLA36385A | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Ferrite | 75 nH | ±15% | 63 A | 110A | - | 0.125mOhm | - | - | - | -55°C ~ 130°C | 500 kHz | - | Surface Mount | 2-SMD | 0.354" L x 0.197" W (9.00mm x 5.00mm) | 0.374" (9.50mm) |
|
|
SLA36385A-100LPOWER BEAD 100NH 0.125MOHM 80A |
100 |
|
Datasheet |
SLA36385A | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Ferrite | 100 nH | ±15% | 63 A | 80A | - | 0.125mOhm | - | - | - | -55°C ~ 130°C | 500 kHz | - | Surface Mount | 2-SMD | 0.354" L x 0.197" W (9.00mm x 5.00mm) | 0.374" (9.50mm) |
|
B82559A5332A019FIXED IND 3.3UH 2.7 MOHM SMD |
1,882 |
|
Datasheet |
ERU19 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | - | 27A | Shielded | 2.7mOhm Max | - | 2MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.807" L x 0.807" W (20.50mm x 20.50mm) | 0.441" (11.20mm) |
|
CTH8F-390K39UH AXIAL PWR LINE INDUCTOR |
4,732 |
|
Datasheet |
CTH8F | Axial | Bulk | Active | - | - | 39 µH | ±10% | 4 A | 4.36A | Unshielded | 33mOhm Max | - | 8MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.469" Dia x 0.921" L (11.90mm x 23.40mm) | - |
|
|
CTH8F-473K47000UH AXIAL PWR LINE INDUCTOR |
1,594 |
|
Datasheet |
CTH8F | Axial | Bulk | Active | - | - | 47 mH | ±10% | 100 mA | 131mA | Unshielded | 31.8Ohm Max | - | 100kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.469" Dia x 0.921" L (11.90mm x 23.40mm) | - |
|
|
CTH8F-560K56UH AXIAL PWR LINE INDUCTOR |
4,949 |
|
Datasheet |
CTH8F | Axial | Bulk | Active | - | - | 56 µH | ±10% | 3.2 A | 3.66A | Unshielded | 37mOhm Max | - | 6MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.469" Dia x 0.921" L (11.90mm x 23.40mm) | - |
|
|
CTH8F-4R7K4.7UH AXIAL PWR LINE INDUCTOR |
2,685 |
|
Datasheet |
CTH8F | Axial | Bulk | Active | - | - | 4.7 µH | ±10% | 4 A | 13.9A | Unshielded | 8mOhm Max | - | 31MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.469" Dia x 0.921" L (11.90mm x 23.40mm) | - |
|
|
CTH8F-183K18000UH AXIAL PWR LINE INDUCTOR |
1,038 |
|
Datasheet |
CTH8F | Axial | Bulk | Active | - | - | 18 mH | ±10% | 130 mA | 210mA | Unshielded | 15.2Ohm Max | - | 200kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.469" Dia x 0.921" L (11.90mm x 23.40mm) | - |
