Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HA65A-251522RLFFIXED IND 22UH 2.6 MOHM SMD |
2,635 |
|
Datasheet |
HA65A | Nonstandard | Tray | Discontinued at Digi-Key | Wirewound | - | 22 µH | ±10% | - | 22A | Unshielded | 2.6mOhm Max | - | 9MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.043" L x 1.043" W (26.50mm x 26.50mm) | 0.610" (15.50mm) |
|

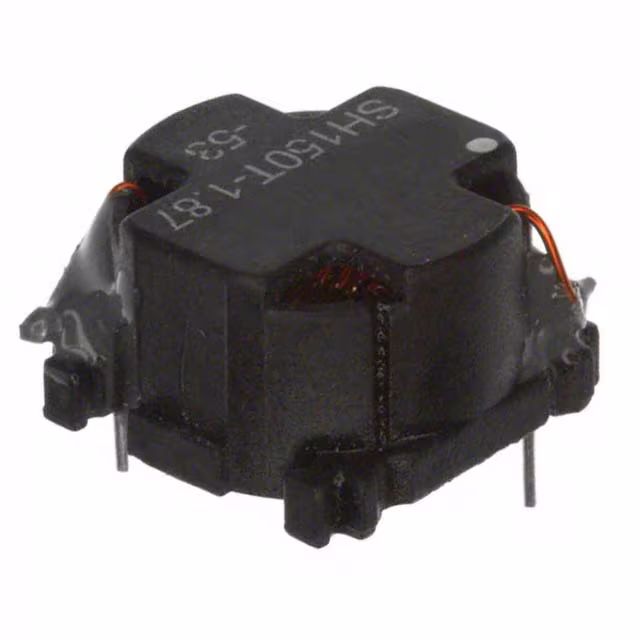

SH150T-1.87-53FIXED IND 53UH 1.87A 130 MOHM TH |
3,714 |
|
Datasheet |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 53 µH | ±20% | 1.87 A | - | Unshielded | 130mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | 0.358" (9.10mm) |
|
DHP106095S-680MHFFIXED IND 68UH 12A 14.7 MOHM TH |
1,982 |
|
Datasheet |
DHP106095S | Radial, Vertical | Tray | Active | - | Ferrite | 68 µH | ±20% | 12 A | 12.9A | Shielded | 14.7mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Through Hole | - | 1.063" L x 0.724" W (27.00mm x 18.40mm) | 0.949" (24.10mm) |
|
|
DHP106095S-3R3MHFFIXED IND 3.3UH 31A 2.2 MOHM TH |
4,125 |
|
Datasheet |
DHP106095S | Radial, Vertical | Tray | Active | - | Ferrite | 3.3 µH | ±20% | 31 A | 89A | Shielded | 2.2mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Through Hole | - | 1.063" L x 0.724" W (27.00mm x 18.40mm) | 0.949" (24.10mm) |
|
|
DHP106095S-390MHFFIXED IND 39UH 15.6A 8.6MOHM TH |
4,979 |
|
Datasheet |
DHP106095S | Radial, Vertical | Tray | Active | - | Ferrite | 39 µH | ±20% | 15.6 A | 18.1A | Shielded | 8.6mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Through Hole | - | 1.063" L x 0.724" W (27.00mm x 18.40mm) | 0.949" (24.10mm) |
|
|
DHP106095S-120MHFFIXED IND 12UH 26.8A 2.9MOHM TH |
2,725 |
|
Datasheet |
DHP106095S | Radial, Vertical | Tray | Active | - | Ferrite | 12 µH | ±20% | 26.8 A | 32A | Shielded | 2.9mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Through Hole | - | 1.063" L x 0.724" W (27.00mm x 18.40mm) | 0.949" (24.10mm) |
|
|
DHP106095S-470MHFFIXED IND 44UH 13.7A 11.2MOHM TH |
1,689 |
|
Datasheet |
DHP106095S | Radial, Vertical | Tray | Active | - | Ferrite | 44 µH | ±20% | 13.7 A | 17.4A | Shielded | 11.2mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Through Hole | - | 1.063" L x 0.724" W (27.00mm x 18.40mm) | 0.949" (24.10mm) |
|
|
DHP106095S-150MHFFIXED IND 15UH 25.5A 3.2MOHM TH |
3,269 |
|
Datasheet |
DHP106095S | Radial, Vertical | Tray | Active | - | Ferrite | 15 µH | ±20% | 25.5 A | 28.1A | Shielded | 3.2mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Through Hole | - | 1.063" L x 0.724" W (27.00mm x 18.40mm) | 0.949" (24.10mm) |
|
|
DHP106095S-500MHFFIXED IND 50UH 13.7A 11.2MOHM TH |
2,280 |
|
Datasheet |
DHP106095S | Radial, Vertical | Tray | Active | - | Ferrite | 50 µH | ±20% | 13.7 A | 16.2A | Shielded | 11.2mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Through Hole | - | 1.063" L x 0.724" W (27.00mm x 18.40mm) | 0.949" (24.10mm) |
|
|
DHP106095S-100MHFFIXED IND 10UH 26.8A 2.9MOHM TH |
4,591 |
|
Datasheet |
DHP106095S | Radial, Vertical | Tray | Active | - | Ferrite | 10 µH | ±20% | 26.8 A | 34.1A | Shielded | 2.9mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Through Hole | - | 1.063" L x 0.724" W (27.00mm x 18.40mm) | 0.949" (24.10mm) |
|
|
DHP106095S-860MHFFIXED IND 86UH 12A 14.7 MOHM TH |
3,117 |
|
Datasheet |
DHP106095S | Radial, Vertical | Tray | Active | - | Ferrite | 86 µH | ±20% | 12 A | 10.5A | Shielded | 14.7mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Through Hole | - | 1.063" L x 0.724" W (27.00mm x 18.40mm) | 0.949" (24.10mm) |
|
|
DHP106095S-4R7MHFFIXED IND 4.7UH 31A 2.2 MOHM TH |
4,813 |
|
Datasheet |
DHP106095S | Radial, Vertical | Tray | Active | - | Ferrite | 4.7 µH | ±20% | 31 A | 65A | Shielded | 2.2mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Through Hole | - | 1.063" L x 0.724" W (27.00mm x 18.40mm) | 0.949" (24.10mm) |
|
|
DHP106095S-330MHFFIXED IND 33UH 15.6A 8.6MOHM TH |
1,715 |
|
Datasheet |
DHP106095S | Radial, Vertical | Tray | Active | - | Ferrite | 33 µH | ±20% | 15.6 A | 19.8A | Shielded | 8.6mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Through Hole | - | 1.063" L x 0.724" W (27.00mm x 18.40mm) | 0.949" (24.10mm) |
|
|
DHP106095S-8R2MHFFIXED IND 8.2UH 31A 2.2 MOHM TH |
1,136 |
|
Datasheet |
DHP106095S | Radial, Vertical | Tray | Active | - | Ferrite | 8.2 µH | ±20% | 31 A | 39.4A | Shielded | 2.2mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Through Hole | - | 1.063" L x 0.724" W (27.00mm x 18.40mm) | 0.949" (24.10mm) |
|
|
DHP106095S-560MHFFIXED IND 56UH 12A 14.7 MOHM TH |
3,534 |
|
Datasheet |
DHP106095S | Radial, Vertical | Tray | Active | - | Ferrite | 56 µH | ±20% | 12 A | 15.2A | Shielded | 14.7mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Through Hole | - | 1.063" L x 0.724" W (27.00mm x 18.40mm) | 0.949" (24.10mm) |
|
|
DHP106095S-220MHFFIXED IND 24UH 19A 5.9 MOHM TH |
1,264 |
|
Datasheet |
DHP106095S | Radial, Vertical | Tray | Active | - | Ferrite | 24 µH | ±20% | 19 A | 23A | Shielded | 5.9mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Through Hole | - | 1.063" L x 0.724" W (27.00mm x 18.40mm) | 0.949" (24.10mm) |
|
|
DHP106095S-6R8MHFFIXED IND 6.8UH 31A 2.2 MOHM TH |
2,717 |
|
Datasheet |
DHP106095S | Radial, Vertical | Tray | Active | - | Ferrite | 6.8 µH | ±20% | 31 A | 46A | Shielded | 2.2mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Through Hole | - | 1.063" L x 0.724" W (27.00mm x 18.40mm) | 0.949" (24.10mm) |
|
|
DHP106095S-180MHFFIXED IND 19UH 22A 4.2 MOHM TH |
4,795 |
|
Datasheet |
DHP106095S | Radial, Vertical | Tray | Active | - | Ferrite | 19 µH | ±20% | 22 A | 25.6A | Shielded | 4.2mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Through Hole | - | 1.063" L x 0.724" W (27.00mm x 18.40mm) | 0.949" (24.10mm) |
|
CPD2320-100MTHT CLASS D IND FOR DIGITAL AMP |
1,647 |
|
Datasheet |
CPD2320 | Nonstandard | Tray | Active | Wirewound | Ferrite | 10 µH | ±20% | 14 A | 43A | Shielded | 9.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low Loss, Soft Saturation | Through Hole | Radial - 4 Leads | 0.906" L x 0.787" W (23.00mm x 20.00mm) | 0.906" (23.00mm) |
|
CPD2320S-220MTHT CLASS D IND FOR DIGITAL AMP |
1,315 |
|
Datasheet |
CPD2320S | Vertical, 4 PC Pin | Tray | Active | Wirewound | Ferrite | 22 µH | ±20% | 7 A | 32A | Shielded | 28.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Vertical, 4 PC Pin | 0.906" L x 0.787" W (23.00mm x 20.00mm) | 0.906" (23.00mm) |
