Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM2204.222NLTFIXED IND 2.2UH 10A 12.2MOHM SMD |
826 |
|
Datasheet |
PM2204.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 10 A | 11A | Unshielded | 12.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.268" L x 0.252" W (6.80mm x 6.40mm) | 0.122" (3.10mm) |
|
DRA127-6R8-RFIXED IND 6.8UH 7.32A 12MOHM SMD |
350 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 7.32 A | 13.3A | Shielded | 12mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
CDRH70D45BT150NP-4R7NCFIXED IND 4.7UH 6.2A 14MOHM SMD |
4,882 |
|
Datasheet |
CDRH70D45B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 6.2 A | 4.2A | Shielded | 14mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.303" L x 0.287" W (7.70mm x 7.30mm) | 0.189" (4.80mm) |
|
HCM1A1707V2-R47-RFIXED INDUCTOR 470NH SMD |
1,923 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 470 nH | ±20% | - | - | Shielded | - | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
RLF10160T-220M2R0-DFIXED IND 22UH 2A 66 MOHM SMD |
2,873 |
|
Datasheet |
RLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2 A | 3.6A | Shielded | 66mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.252" (6.40mm) |
|
DRAP124-330-RFIXED IND 33UH 1.98A 130MOHM SMD |
750 |
|
Datasheet |
DRAP124 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±20% | 1.98 A | 3.42A | Shielded | 130mOhm Max | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.181" (4.60mm) |
|
CSEB0430H-R56MFIX IND 0.56UH 14A 5.6MOHM SMD |
100 |
|
Datasheet |
CSEB0430H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 560 nH | ±20% | 14 A | 11.9A | Shielded | 5.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.126" (3.20mm) |
|
|
CSEB0430H-R47MFIX IND 0.47UH 15.5A 4.5MOHM SMD |
100 |
|
Datasheet |
CSEB0430H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 470 nH | ±20% | 15.6 A | 13A | Shielded | 4.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.126" (3.20mm) |
|
|
CSEB0430H-R33MFIX IND 0.33UH 19.1A 4.0MOHM SMD |
100 |
|
Datasheet |
CSEB0430H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 330 nH | ±20% | 17.5 A | 16.3A | Shielded | 4mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.126" (3.20mm) |
|
|
CSEB0430H-1R0MFIX IND 1UH 9.5A 9.8MOHM SMD |
100 |
|
Datasheet |
CSEB0430H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 1 µH | ±20% | 9.1 A | 8.1A | Shielded | 9.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.126" (3.20mm) |
|
|
RLF10160T-150M2R5-DFIXED IND 15UH 2.5A 46.8MOHM SMD |
4,560 |
|
Datasheet |
RLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.5 A | 4.4A | Shielded | 46.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.252" (6.40mm) |
|
B82559A4222A016FIXED IND 2.2UH 30A 2.1MOHM SMD |
4,795 |
|
Datasheet |
ERU16 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 30 A | 34A | Shielded | 2.1mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.736" L x 0.681" W (18.70mm x 17.30mm) | 0.378" (9.60mm) |
|
|
PM2206.102NLTFIXED IND 1UH 11A 10.8 MOHM SMD |
819 |
|
Datasheet |
PM2206.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 11 A | 23A | Unshielded | 10.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.081" (2.05mm) |
|
7847709471FIXED IND 470UH 900MA 490MOHM SM |
4,387 |
|
Datasheet |
WE-PDA | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 470 µH | ±20% | 900 mA | 1.1A | Shielded | 490mOhm Max | - | 1.9MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.406" (10.30mm) |
|
XGL4030-122MECFIXED IND 1.2UH 12.2A 9.4MOHM SM |
4,063 |
|
Datasheet |
XGL4030 | 1616 (4040 Metric) | Strip | Active | Molded | Metal Composite | 1.2 µH | ±20% | 12.2 A | 9.2A | Shielded | 9.4mOhm Max | - | 55MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.122" (3.10mm) |
|
|
PM2207.222NLTFIXED IND 2.2UH 13A 12.4MOHM SMD |
969 |
|
Datasheet |
PM2207.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 13 A | 19A | Unshielded | 12.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.122" (3.10mm) |
|

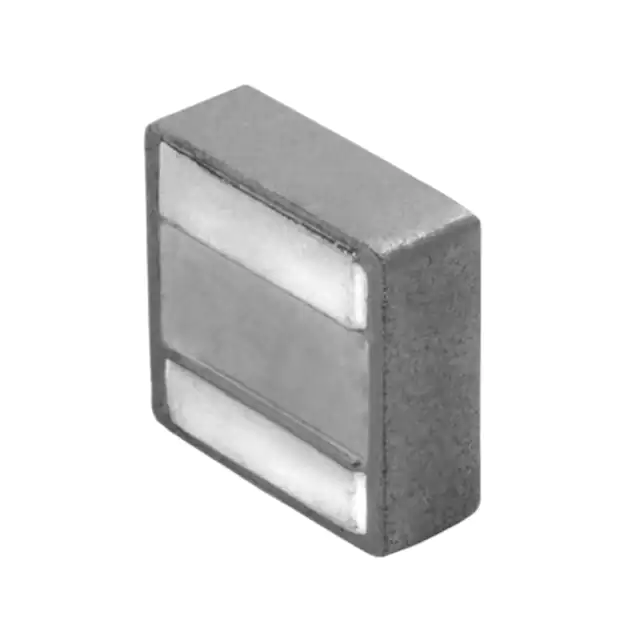

PM2207.332NLTFIXED IND 3.3UH 10A 16.3MOHM SMD |
4,704 |
|
Datasheet |
PM2207.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 10 A | 15A | Unshielded | 16.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.122" (3.10mm) |
|
|
B82559A0153A016FIXED IND 15UH 11A 11.1MOHM SMD |
4,152 |
|
Datasheet |
ERU16 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 11 A | 12.6A | Shielded | 11.1mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.736" L x 0.681" W (18.70mm x 17.30mm) | 0.378" (9.60mm) |
|
SBC8-4R7-922FIXED IND 4.7UH 9.2A 10 MOHM TH |
1,299 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 9.2 A | 16.8A | Unshielded | 10mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.748" (19.00mm) |
|
|
SBC8-6R8-862FIXED IND 6.8UH 8.6A 20 MOHM TH |
3,117 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 8.6 A | 13.9A | Unshielded | 20mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.748" (19.00mm) |
