Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

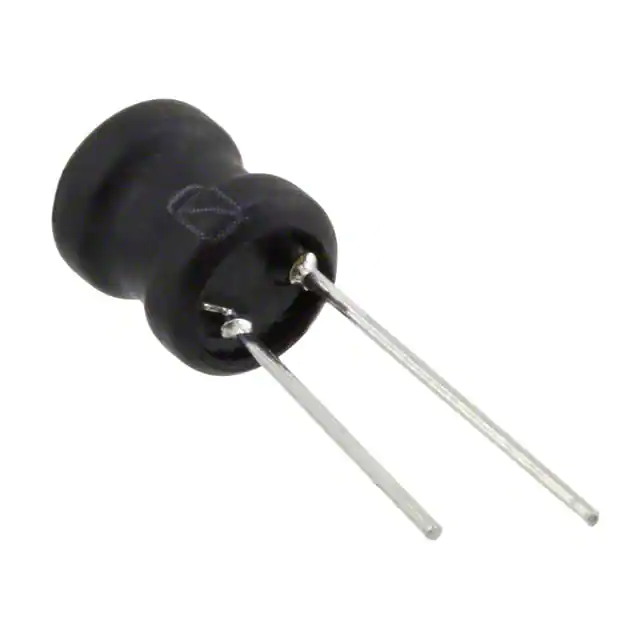

AIUR-12-222KFIXED IND 2.2MH 110MA 11 OHM TH |
4,819 |
|
Datasheet |
AIUR-12 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 110 mA | - | Unshielded | 11Ohm Max | 30 @ 100kHz | 1MHz | - | -40°C ~ 85°C | 100 kHz | - | Through Hole | - | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
|
AIUR-12-472KFIXED IND 4.7MH 70MA 18 OHM TH |
3,229 |
|
Datasheet |
AIUR-12 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 70 mA | - | Unshielded | 18Ohm Max | 30 @ 100kHz | 300kHz | - | -40°C ~ 85°C | 100 kHz | - | Through Hole | - | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
|
AIUR-12-470KFIXED IND 47UH 780MA 280 MOHM TH |
483 |
|
Datasheet |
AIUR-12 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 780 mA | - | Unshielded | 280mOhm Max | 30 @ 100kHz | 5MHz | - | -40°C ~ 85°C | 100 kHz | - | Through Hole | - | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
.jpg)
|
LQW31HNR10J03LFIXED IND 100NH 230MA 300MOHM SM |
3,518 |
|
Datasheet |
LQW31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | 100 nH | ±5% | 230 mA | - | Unshielded | 300mOhm Max | 60 @ 436MHz | 900MHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
TMPC 0603HV-1R0MG-D1.0 UH SHIELDED MOLDED INDUCTOR |
1,995 |
|
Datasheet |
TMPC0603HV | Nonstandard | Tape & Reel (TR) | Active | - | Carbonyl Powder | 1 µH | ±20% | 11 A | 22A | Unshielded | 10mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
TMPC 0603HV-3R3MG-D3.3 UH SHIELDED MOLDED INDUCTOR |
1,990 |
|
Datasheet |
TMPC0603HV | Nonstandard | Tape & Reel (TR) | Active | - | Carbonyl Powder | 3.3 µH | ±20% | 6 A | 13.5A | Unshielded | 30mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
TMPC 0603HV-220MG-D22 UH SHIELDED MOLDED INDUCTOR S |
1,965 |
|
Datasheet |
TMPC0603HV | Nonstandard | Tape & Reel (TR) | Active | - | Carbonyl Powder | 22 µH | ±20% | 2 A | 3.5A | Unshielded | 190mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
TMPC 0603HV-4R7MG-D4.7 UH SHIELDED MOLDED INDUCTOR |
1,955 |
|
Datasheet |
TMPC0603HV | Nonstandard | Tape & Reel (TR) | Active | - | Carbonyl Powder | 4.7 µH | ±20% | 5.5 A | 10A | Unshielded | 40mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
TMPC 0603HV-100MG-D10 UH SHIELDED MOLDED INDUCTOR S |
1,794 |
|
Datasheet |
TMPC0603HV | Nonstandard | Tape & Reel (TR) | Active | - | Carbonyl Powder | 10 µH | ±20% | 3.5 A | 6A | Unshielded | 85mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
MPL-SE6040-1R5FIXED IND 1.5UH 6.8A 11.5MOHM SM |
1,000 |
|
- |
MPL-SE | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | - | 1.5 µH | - | 6.8 A | 8.9A | Shielded | 11.5mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.157" (4.00mm) |
|
|
TMPC 1004H-1R0MG-D1.0 UH SHIELDED MOLDED INDUCTOR |
947 |
|
Datasheet |
TMPC1004H | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 1 µH | ±20% | 18 A | 36A | Shielded | 3.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
TMPC 1004H-1R5MG-D1.5 UH SHIELDED MOLDED INDUCTOR |
921 |
|
Datasheet |
TMPC1004H | Nonstandard | Cut Tape (CT) | Active | Molded | Carbonyl Powder | 1.5 µH | ±20% | 16 A | 33A | Shielded | 4.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
TMPC 1004H-3R3MG-D3.3 UH SHIELDED MOLDED INDUCTOR |
861 |
|
Datasheet |
TMPC1004H | Nonstandard | Cut Tape (CT) | Active | Molded | Carbonyl Powder | 3.3 µH | ±20% | 11 A | 20A | Shielded | 11.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
TMPC 1004H-6R8MG-D6.8 UH SHIELDED MOLDED INDUCTOR |
759 |
|
Datasheet |
TMPC1004H | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 6.8 µH | ±20% | 8.5 A | 13.5A | Shielded | 23.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
TMPC 0603HV-2R2MG-D2.2 UH SHIELDED MOLDED INDUCTOR |
638 |
|
Datasheet |
TMPC0603HV | Nonstandard | Cut Tape (CT) | Active | - | Carbonyl Powder | 2.2 µH | ±20% | 8 A | 14A | Unshielded | 20mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
TMPC 1004H-220MG-D22 UH SHIELDED MOLDED INDUCTOR S |
625 |
|
Datasheet |
TMPC1004H | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 22 µH | ±20% | 5 A | 7A | Shielded | 74mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
TMPC 1004H-470MG-D47 UH SHIELDED MOLDED INDUCTOR S |
590 |
|
Datasheet |
TMPC1004H | Nonstandard | Cut Tape (CT) | Active | Molded | Carbonyl Powder | 47 µH | ±20% | 3 A | 4.5A | Shielded | 167mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
LQH43NH1R2K03LFIXED IND 1.2UH 1.1A 51.6MOHM SM |
498 |
|
Datasheet |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±10% | 1.1 A | - | Unshielded | 51.6mOhm Max | 20 @ 1MHz | 100MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
LQH43NH821J03LFIXED IND 820UH 50MA 17.4OHM SMD |
343 |
|
Datasheet |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±5% | 50 mA | - | Unshielded | 17.4Ohm Max | 40 @ 796kHz | 2.2MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
TMPC 1004H-330MG-D33 UH SHIELDED MOLDED INDUCTOR S |
304 |
|
Datasheet |
TMPC1004H | Nonstandard | Cut Tape (CT) | Active | Molded | Carbonyl Powder | 33 µH | ±20% | 3.5 A | 5A | Shielded | 112mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
