Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQH43NN101J03LFIXED IND 100UH 160MA 2.5OHM SMD |
3,771 |
|
Datasheet |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±5% | 160 mA | - | Unshielded | 2.5Ohm Max | 40 @ 796kHz | 6.8MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
LCXNH8080YBL4R7NJGFIXED IND 4.7UH 4.1A 23.4MOHM SM |
1,695 |
|
Datasheet |
LCXN | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±30% | 4.1 A | 5.4A | Unshielded | 18mOhm | - | 30MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
LCXNH8080YBL2R0NJGFIXED IND 2UH 6.3A 11.7 MOHM SMD |
1,000 |
|
Datasheet |
LCXN | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2 µH | ±30% | 6.3 A | 8.1A | Unshielded | 9mOhm | - | 50MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|

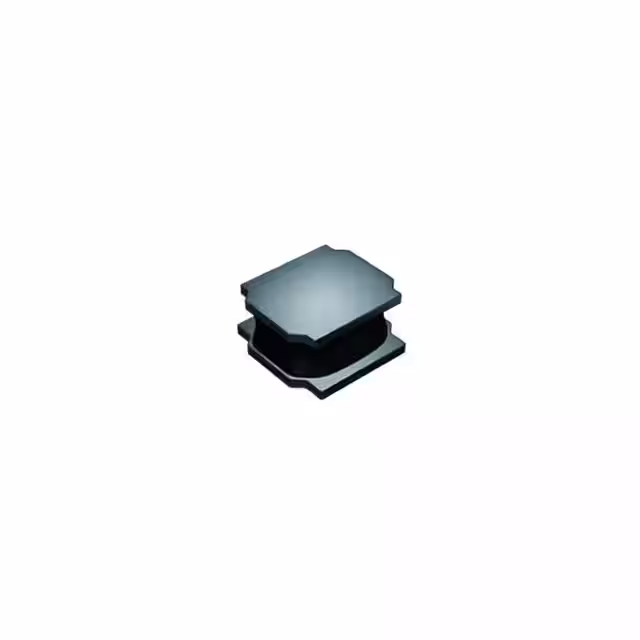

LCXNH8080YBL3R6NJGFIXED IND 3.6UH 4.9A 19.5MOHM SM |
1,000 |
|
Datasheet |
LCXN | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.6 µH | ±30% | 4.9 A | 6.4A | Unshielded | 15mOhm | - | 34MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
LCXNH8080XKL1R0NJGFIXED IND 1UH 6.2A 11.7 MOHM SMD |
985 |
|
Datasheet |
LCXN | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±30% | 6.2 A | 7.8A | Unshielded | 9mOhm | - | 120MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
LCXNH8080XKL220MJGFIXED IND 22UH 1.9A 91 MOHM SMD |
975 |
|
Datasheet |
LCXN | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 1.9 A | 1.75A | Unshielded | 70mOhm | - | 16MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|

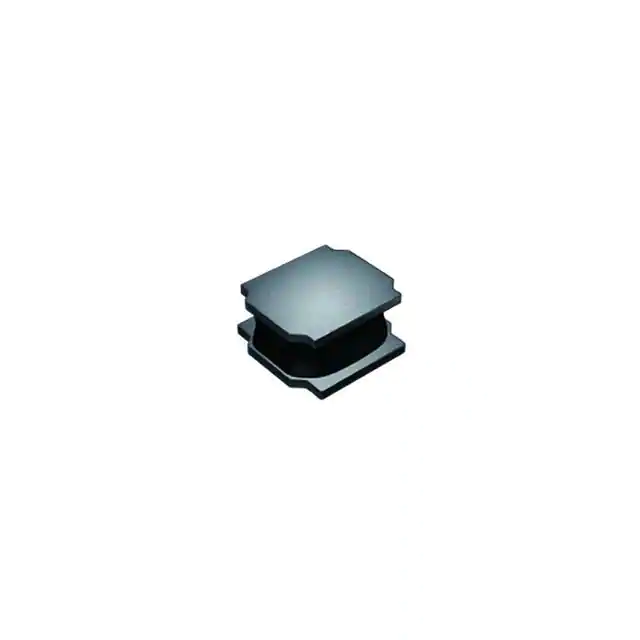

LCXNH8080YKL330MJGFIXED IND 33UH 1.7A 130 MOHM SMD |
945 |
|
Datasheet |
LCXN | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | ±20% | 1.7 A | 2A | Unshielded | 100mOhm | - | 12MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
LCXNH8080YKL220MJGFIXED IND 22UH 2.2A 85.8MOHM SMD |
765 |
|
Datasheet |
LCXN | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 2.2 A | 2.4A | Unshielded | 66mOhm | - | 13MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
AISM-1812-331K-TFIXED IND 330UH 85MA 15 OHM SMD |
500 |
|
Datasheet |
AISM-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 85 mA | - | Unshielded | 15Ohm Max | 40 @ 796kHz | 3.5MHz | - | -40°C ~ 85°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
AISM-1812-R82M-TFIXED IND 820NH 475MA 500MOHM SM |
492 |
|
Datasheet |
AISM-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 nH | ±20% | 475 mA | - | Unshielded | 500mOhm Max | 40 @ 25.2MHz | 130MHz | - | -40°C ~ 85°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
AIUR-11-101KFIXED IND 100UH 1A 180 MOHM TH |
1,730 |
|
Datasheet |
AIUR-11 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 1 A | 1.2A | Unshielded | 180mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.375" Dia (9.53mm) | 0.450" (11.43mm) |
|
SDR0503-680KLFIXED IND 68UH 450MA 760MOHM SMD |
1,500 |
|
Datasheet |
SDR0503 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 450 mA | 600mA | Unshielded | 760mOhm Max | 20 @ 2.52MHz | 12MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.197" L x 0.189" W (5.00mm x 4.80mm) | 0.130" (3.30mm) |
|
|
SDR0503-121KLFIXED IND 120UH 370MA 1.7OHM SMD |
1,496 |
|
Datasheet |
SDR0503 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 370 mA | 450mA | Unshielded | 1.7Ohm Max | 40 @ 796kHz | 8MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.197" L x 0.189" W (5.00mm x 4.80mm) | 0.130" (3.30mm) |
|
|
SDR0503-561KLFIXED IND 560UH 160MA 5.7OHM SMD |
1,452 |
|
Datasheet |
SDR0503 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 160 mA | 190mA | Unshielded | 5.7Ohm Max | 30 @ 796kHz | 4MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.197" L x 0.189" W (5.00mm x 4.80mm) | 0.130" (3.30mm) |
|
|
SDR0503-272JLFIXED IND 2.7MH 50MA 26 OHM SMD |
1,442 |
|
Datasheet |
SDR0503 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 mH | ±5% | 50 mA | 70mA | Unshielded | 26Ohm Max | 40 @ 252kHz | 2MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.197" L x 0.189" W (5.00mm x 4.80mm) | 0.130" (3.30mm) |
|
24221CFIXED IND 220UH 350MA 1.57OHM SM |
895 |
|
Datasheet |
2400 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | - | 350 mA | - | Unshielded | 1.57Ohm Max | - | 4.24MHz | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.177" (4.50mm) |
|
ASPI-8040S-220M-TFIXED IND 22UH 2.1A 69 MOHM SMD |
1,374 |
|
Datasheet |
ASPI-8040S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.1 A | 2.4A | Shielded | 69mOhm | - | 9.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
ASPI-0840-101M-TFIXED IND 100UH 1A 403 MOHM SMD |
875 |
|
Datasheet |
ASPI-0840 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1 A | 1A | Shielded | 403mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.169" (4.30mm) |
|
|
LAXHG5050XKT151MMRNDUCTOR WIRE WOUND 150UH SMD |
500 |
|
- |
LAXH | 2020 (5050 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 150 µH | ±20% | 370 mA | 470mA | Unshielded | 1.165Ohm Max | - | 5MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.118" (3.00mm) |
|
PA0390.153NLFIXED IND 16UH 1.2A 174.7MOHM SM |
150 |
|
Datasheet |
PA0390NL | Nonstandard | Tray | Active | Wirewound | - | 16 µH | ±20% | 1.2 A | 1.5A | Unshielded | 174.7mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | 0.200" (5.08mm) |
