Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQH43NH391J03LFIXED IND 390UH 80MA 8.28OHM SMD |
4,884 |
|
Datasheet |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±5% | 80 mA | - | Unshielded | 8.28Ohm Max | 40 @ 796kHz | 3.3MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
IFDC2525DZER101MFIXED IND 100UH 0.65A 358 MOHM S |
995 |
|
Datasheet |
IFDC-2525DZ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 650 mA | - | Shielded | 358mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.157" (4.00mm) |
|
|
IFDC2525DZER2R2NFIXED IND 2.2UH 4.5A 18 MOHM SMD |
990 |
|
Datasheet |
IFDC-2525DZ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 4.5 A | - | Shielded | 18mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.157" (4.00mm) |
|

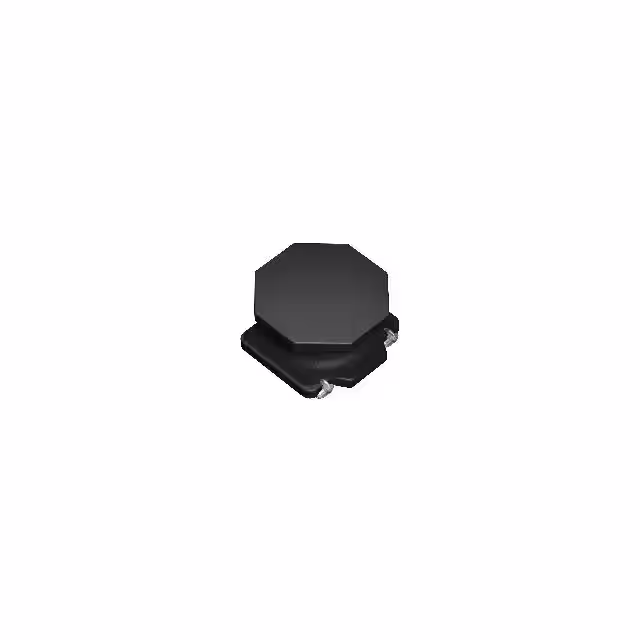

LSDND4040MKT2R2MFFIXED IND 2.2UH 2.5A 92 MOHM SMD |
989 |
|
- |
LSDN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 2.2 µH | ±20% | 2.5 A | 3.2A | Shielded | 92mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
IFDC2525DZER102MFIXED IND 1000UH 0.2A 5.700 OHM |
989 |
|
Datasheet |
IFDC-2525DZ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 200 mA | - | Shielded | 5.7Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.157" (4.00mm) |
|
LSDND4040MKTR47MFFIXED IND 470NH 4.6A 29 MOHM SMD |
760 |
|
- |
LSDN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 470 nH | ±20% | 4.6 A | 7.5A | Shielded | 29mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
LSDND4040MKT2R2MMFIXED IND 2.2UH 2.8A 79 MOHM SMD |
750 |
|
- |
LSDN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 2.2 µH | ±20% | 2.8 A | 3.8A | Shielded | 79mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
LSDND4040MKT100MMFIXED IND 10UH 1.4A 330 MOHM SMD |
599 |
|
- |
LSDN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 10 µH | ±20% | 1.4 A | 1.7A | Shielded | 330mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
DRC-0707-100K-ULRADIAL INDUCTOR WITH LEADS, 10.0 |
596 |
|
Datasheet |
DRC-0707 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 1.9 A | 2.1A | Unshielded | 43mOhm Max | 20 @ 2.52MHz | 19MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.335" Dia (8.50mm) | 0.374" (9.50mm) |
|
|
DRC-0807-3R3M-ULRADIAL INDUCTOR WITH LEADS, 3.3H |
500 |
|
Datasheet |
DRC-0807 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 3.4 A | 3.8A | Unshielded | 13mOhm Max | 10 @ 7.96MHz | 38MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.394" Dia (10.00mm) | 0.374" (9.50mm) |
|
|
SPM4020T-R68M-LRFIXED IND 680NH 9.8A 16MOHM SMD |
1,000 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 680 nH | ±20% | 7 A | 9.8A | Shielded | 16mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4020 | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.079" (2.00mm) |
|
|
DRC-0406-3R3M-ULRADIAL INDUCTOR WITH LEADS, 3.3H |
988 |
|
Datasheet |
DRC-0406 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.5 A | - | Unshielded | 130mOhm Max | 100 @ 7.96MHz | 75MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial | 0.217" Dia (5.50mm) | - |
|
22R473MCFIXED IND 47UH 990MA 220MOHM SMD |
674 |
|
Datasheet |
2200RM | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±10% | 990 mA | - | Unshielded | 220mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.311" (7.90mm) |
|
|
DRC-0406-151J-ULRADIAL INDUCTOR WITH LEADS, 150. |
490 |
|
Datasheet |
DRC-0406 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±5% | 350 mA | - | Unshielded | 1.3Ohm Max | 65 @ 796kHz | 4.2MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial | 0.217" Dia (5.50mm) | - |
|
|
DRC-0406-331J-ULRADIAL INDUCTOR WITH LEADS, 330H |
490 |
|
Datasheet |
DRC-0406 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±5% | 250 mA | - | Unshielded | 2.2Ohm Max | 50 @ 796kHz | 2.2MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial | 0.217" Dia (5.50mm) | - |
|
|
DRC-0406-152J-ULRADIAL INDUCTOR WITH LEADS, 1500 |
490 |
|
Datasheet |
DRC-0406 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±5% | 120 mA | - | Unshielded | 13Ohm Max | 80 @ 252kHz | 800kHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial | 0.217" Dia (5.50mm) | - |
|
|
DRC-0406-470K-ULRADIAL INDUCTOR WITH LEADS, 47.0 |
475 |
|
Datasheet |
DRC-0406 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 550 mA | - | Unshielded | 760mOhm Max | 70 @ 2.52MHz | 7.8MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial | 0.217" Dia (5.50mm) | - |
|
|
DRC-0406-222J-ULRADIAL INDUCTOR WITH LEADS, 2200 |
470 |
|
Datasheet |
DRC-0406 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±5% | 100 mA | - | Unshielded | 17Ohm Max | 80 @ 252kHz | 800kHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial | 0.217" Dia (5.50mm) | - |
|

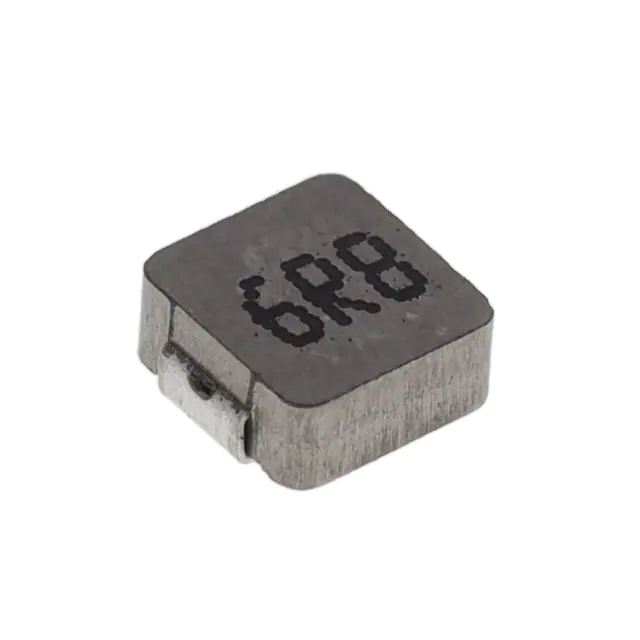

ASPI-4020HI-6R8M-TFIXED IND 6.8UH 2.4A 175MOHM SMD |
469 |
|
Datasheet |
ASPI-4020HI | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Alloy | 6.8 µH | ±20% | 2.4 A | 2.5A | Shielded | 175mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
|
DRC-0406-102J-ULRADIAL INDUCTOR WITH LEADS, 1000 |
431 |
|
Datasheet |
DRC-0406 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±5% | 150 mA | - | Unshielded | 6.7Ohm Max | 90 @ 252kHz | 1MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial | 0.217" Dia (5.50mm) | - |
