Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
IHLP7575GZER3R3M51FIXED IND 3.3UH 36A 0.00334OHM |
3,102 |
|
Datasheet |
IHLP-7575GZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 36 A | 41A | Shielded | 3.34mOhm Max | - | 12.3MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.752" L x 0.750" W (19.10mm x 19.05mm) | 0.276" (7.00mm) |
|

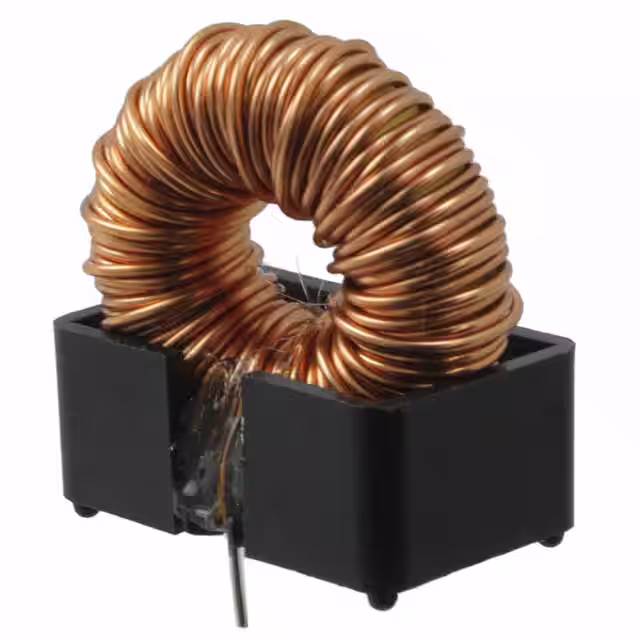

PE-54042NLFIXED IND 167UH 2.5A 140 MOHM TH |
2,719 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 167 µH | ±20% | 2.5 A | - | Shielded | 140mOhm | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.970" L x 0.610" W (24.64mm x 15.50mm) | 1.100" (27.94mm) |
|
IHD3EB223LFIXED IND 22MH 130MA 18 OHM TH |
2,737 |
|
Datasheet |
IHD | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 22 mH | ±15% | 130 mA | 120mA | Unshielded | 18Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.460" Dia x 0.900" L (11.68mm x 22.86mm) | - |
.jpg)
|
AIRD-03-3R3MFIXED IND 3.3UH 21A 3 MOHM TH |
4,858 |
|
Datasheet |
AIRD-03 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 21 A | 74A | Unshielded | 3mOhm Max | - | - | - | -25°C ~ 85°C | 1 Hz | - | Through Hole | - | 1.102" Dia (28.00mm) | 0.827" (21.00mm) |
|
DLH-31-0008FIXED IND 50UH 6.3A 23 MOHM TH |
100 |
|
Datasheet |
DLH | Radial, Horizontal, 4 Leads | Bulk | Active | - | - | 50 µH | ±15% | 6.3 A | - | Shielded | 23mOhm | - | - | - | -40°C ~ 125°C | - | - | Through Hole | - | 1.240" L x 0.728" W (31.50mm x 18.50mm) | 1.299" (33.00mm) |
|
5728-RCFIXED IND 50UH 2.5A 60 MOHM TH |
2,641 |
|
Datasheet |
5700 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 50 µH | ±15% | 2.5 A | - | Unshielded | 60mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.750" Dia x 0.320" W (19.05mm x 8.13mm) | - |
|
IHLP8787MZER330M51FIXED IND 33UH 15.5A 15.4MOHM SM |
197 |
|
Datasheet |
IHLP-8787MZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 33 µH | ±20% | 15.5 A | 10.5A | Shielded | 15.4mOhm Max | - | 3.01MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
ASPIAIG-Q1510-100M-TFIXED IND 10UH 24A 8.6 MOHM SMD |
1,517 |
|
Datasheet |
ASPIAIG-Q1510 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 10 µH | ±20% | 24 A | 26A | Shielded | 8.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.650" W (17.50mm x 16.50mm) | 0.394" (10.00mm) |
|
MPX1D1740L470FIXED IND 47UH 4A 125.7MOHM SMD |
4,531 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 47 µH | ±20% | 4 A | 6.5A | Shielded | 125.7mOhm Max | - | 2.5MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.157" (4.00mm) |
|
|
MPX1D1740L100FIXED IND 10UH 9.5A 21.7MOHM SMD |
1,065 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 10 µH | ±20% | 9.5 A | 14.5A | Shielded | 21.7mOhm Max | - | 6.8MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.157" (4.00mm) |
|
|
MPX1D1770LR68FIXED IND 680NH 50A 1.0465 MOHM |
2,737 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 680 nH | ±20% | 50 A | 68A | Shielded | 1.0465mOhm Max | - | 37MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.276" (7.00mm) |
|
|
MPX1D1770L150FIXED IND 15UH 12A 17.8 MOHM SMD |
3,750 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 15 µH | ±20% | 12 A | 14A | Shielded | 17.8mOhm Max | - | 5.5MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.276" (7.00mm) |
|
|
MPX1D1770L1R5FIXED IND 1.5UH 38A 1.8 MOHM SMD |
1,901 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1.5 µH | ±20% | 38 A | 45A | Shielded | 1.8mOhm Max | - | 18MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.276" (7.00mm) |
|
|
MPX1D1770L100FIXED IND 10UH 14.5A 12.2MOHM SM |
3,078 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 10 µH | ±20% | 14.5 A | 16.5A | Shielded | 12.2mOhm Max | - | 7MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.276" (7.00mm) |
|
|
MPX1D1770L330FIXED IND 33UH 7.5A 47.3MOHM SMD |
4,214 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 33 µH | ±20% | 7.5 A | 12A | Shielded | 47.3mOhm Max | - | 3.5MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.276" (7.00mm) |
|
|
MPX1D1770L1R0FIXED IND 1UH 38A 1.8 MOHM SMD |
4,575 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1 µH | ±20% | 38 A | 62A | Shielded | 1.8mOhm Max | - | 27MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.276" (7.00mm) |
|
|
MPX1D1770L470FIXED IND 47UH 6.5A 62.8MOHM SMD |
2,686 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 47 µH | ±20% | 6.5 A | 10.5A | Shielded | 62.8mOhm Max | - | 2.8MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.276" (7.00mm) |
|
|
MPX1D1740L6R8FIXED IND 6.8UH 11.5A 15.9 MOHM |
2,350 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 6.8 µH | ±20% | 11.5 A | 17A | Shielded | 15.9mOhm Max | - | 9MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.157" (4.00mm) |
|
|
MPX1D1770L4R7FIXED IND 4.7UH 23.5A 4.8MOHM SM |
2,824 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 23.5 A | 33.5A | Shielded | 4.8mOhm Max | - | 10MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.276" (7.00mm) |
|
|
MPX1D1770L2R2FIXED IND 2.2UH 31A 2.6 MOHM SMD |
3,633 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.2 µH | ±20% | 31 A | 34A | Shielded | 2.6mOhm Max | - | 15MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.276" (7.00mm) |
