Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DR1050-1R5-RFIXED IND 1.5UH 8.6A 5 MOHM SMD |
500 |
|
Datasheet |
DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 8.6 A | 10.5A | Shielded | 5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.197" (5.00mm) |
|

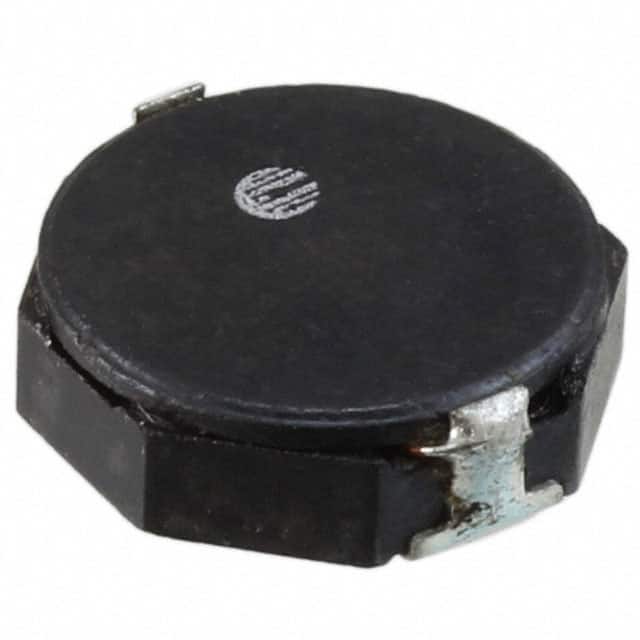

SD8328-330-RFIXED IND 33UH 1.45A 156MOHM SMD |
4,121 |
|
Datasheet |
SD8328 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±30% | 1.45 A | 1.4A | Shielded | 156mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | 0.118" (3.00mm) |
|
P1174.332NLFIXED IND 3.3UH 1.3A 21 MOHM SMD |
4,213 |
|
Datasheet |
P1174NL | Nonstandard | Tray | Active | Wirewound | - | 3.3 µH | ±20% | 1.3 A | 1.3A | Shielded | 21mOhm Max | - | 40MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.265" L x 0.175" W (6.73mm x 4.45mm) | 0.110" (2.79mm) |
|
SRU1028A-1R0YFIXED IND 1UH 7A 6.5 MOHM SMD |
1,051 |
|
Datasheet |
SRU1028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 7 A | 8A | Shielded | 6.5mOhm Max | 14 @ 7.96MHz | 100MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|
SRR6040A-8R2YFIXED IND 8.2UH 2.3A 36 MOHM SMD |
2,295 |
|
Datasheet |
SRR6040A | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | - | Ferrite | 8.2 µH | ±30% | 2.3 A | 2A | Shielded | 36mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.157" (4.00mm) |
|
74404064010FIXED IND 1UH 5.14A 11 MOHM SMD |
4,509 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 5.14 A | 11A | Shielded | 11mOhm | - | 159MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6045 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
BPSC001313807R6M00INDUCTOR POWER |
500 |
|
Datasheet |
BPSC | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 7.6 µH | ±20% | - | 10A | Shielded | 20mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
B82476B1223M100FIXED IND 22UH 2.95A 50 MOHM SMD |
2,856 |
|
Datasheet |
B82476B1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.95 A | 2.6A | Unshielded | 50mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
|
|
B82476B1474M100FIXED IND 470UH 550MA 1.1OHM SMD |
770 |
|
Datasheet |
B82476B1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 550 mA | 500mA | Unshielded | 1.1Ohm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
|

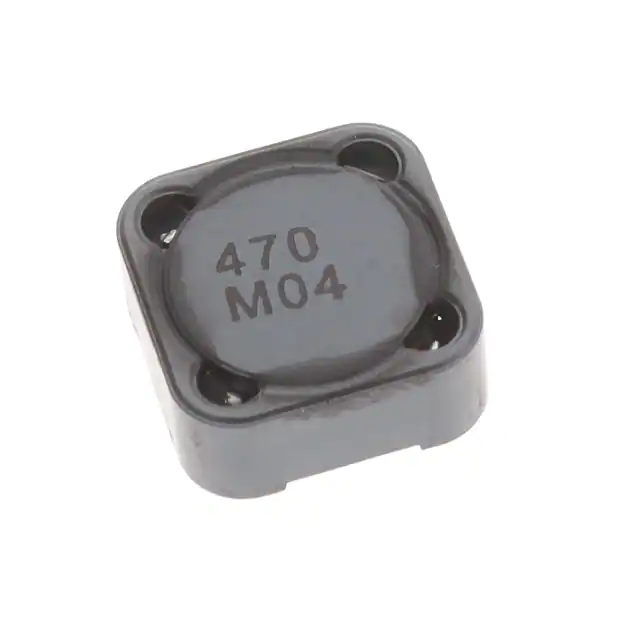

CDRH125L125NP-470MCFIXED IND 47UH 2.42A 93MOHM SMD |
501 |
|
Datasheet |
CDRH125/L125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±20% | 2.42 A | 2.44A | Shielded | 93mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|

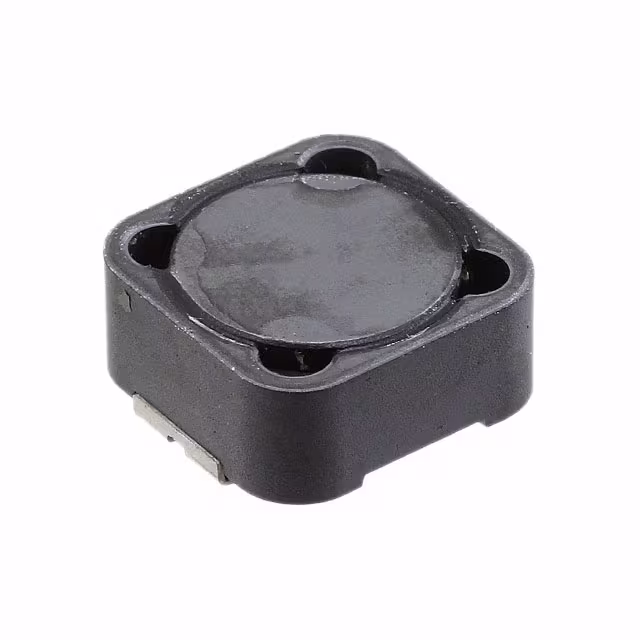

CDRH125L125NP-100MCFIXED IND 10UH 5.3A 25 MOHM SMD |
500 |
|
Datasheet |
CDRH125/L125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 5.3 A | 5.2A | Shielded | 25mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
MPX1D0630L150FIXED IND 15UH 3.3A 130.2MOHM SM |
1,988 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 15 µH | ±20% | 3.3 A | 4A | Shielded | 130.2mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.118" (3.00mm) |
|
SPM5015T-3R3M-LRFIXED IND 3.3UH 3.5A 82.5MOHM SM |
1,000 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 3.5 A | 4.4A | Shielded | 82.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.059" (1.50mm) |
|
NS12555T471MNFIXED IND 470UH 800MA 624MOHM SM |
3,600 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 800 mA | 680mA | Shielded | 624mOhm Max | - | 2.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.230" (5.85mm) |
|
EXLA1V0605-1R2-RIND MOLDED SHLD 1.2UH 18.0A |
800 |
|
Datasheet |
EXLA1V06 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 1.2 µH | ±20% | 18 A | 16A | Shielded | 5.83mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.197" (5.00mm) |
|
ASPI-104S-7R0M-TFIXED IND 7UH 4.5A 27 MOHM SMD |
750 |
|
Datasheet |
ASPI-104S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 7 µH | ±20% | 4.5 A | 4.8A | Shielded | 27mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.157" (4.00mm) |
|
MPXV1D0520L1R5FIXED IND 1.5UH 5.6A 35.6MOHM SM |
1,648 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1.5 µH | ±20% | 5.6 A | 7A | Shielded | 35.6mOhm Max | - | 44MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.079" (2.00mm) |
|
VLCF5024T-470MR40-2FIXED IND 47UH 400MA 383MOHM SMD |
3,841 |
|
Datasheet |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 400 mA | 400mA | Shielded | 383mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.094" (2.40mm) |
|
ASPI-0704S-101M-TFIXED IND 100UH 600MA 610MOHM SM |
752 |
|
Datasheet |
ASPI-0704S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 600 mA | - | Shielded | 610mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|

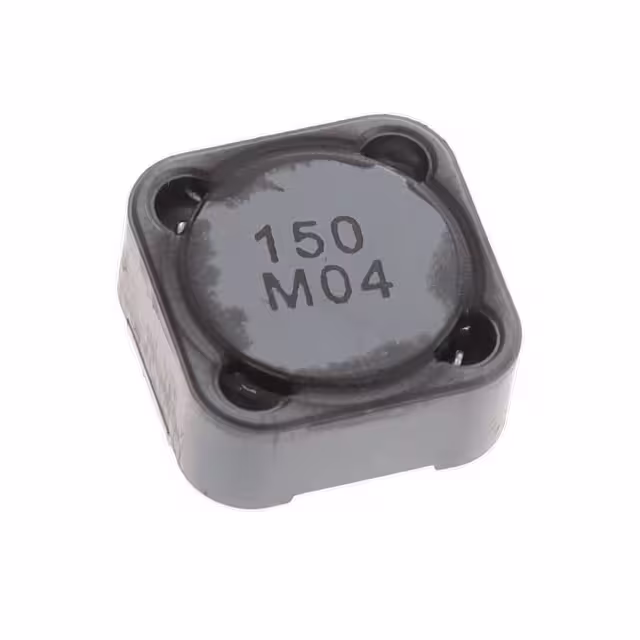

CDRH125L125NP-150MCFIXED IND 15UH 4.5A 33.8MOHM SMD |
514 |
|
Datasheet |
CDRH125/L125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 4.5 A | 4.4A | Shielded | 33.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
