Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLP2020CZERR22M8AFIXED IND 220NH 18A 4.23MOHM SMD |
191 |
|
Datasheet |
IHLP-2020CZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±20% | 18 A | 11A | Shielded | 4.23mOhm Max | - | 190MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.204" L x 0.204" W (5.18mm x 5.18mm) | 0.118" (3.00mm) |
|
SBC9-4R7-562FIXED IND 4.7UH 5.6A 20 MOHM TH |
2,451 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 5.6 A | 14.7A | Unshielded | 20mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.472" (12.00mm) |
|

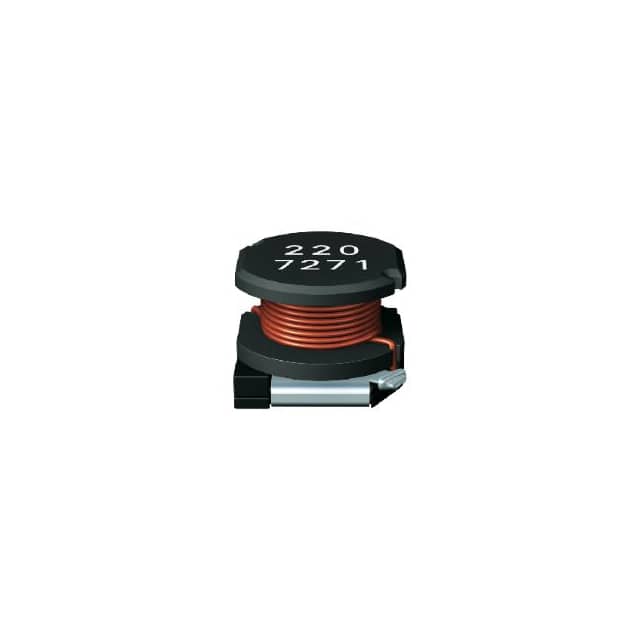

B82473A1223K000FIXED IND 22UH 1.5A 110 MOHM SMD |
2,052 |
|
Datasheet |
B82473A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 1.5 A | 1.6A | Unshielded | 110mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.287" W (8.30mm x 7.30mm) | 0.217" (5.50mm) |
|
SRP3012TA-R68MFIXED IND 680NH 4A 40 MOHM SMD |
4,726 |
|
Datasheet |
SRP3012TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 680 nH | ±20% | 4 A | 6.1A | Shielded | 40mOhm Max | - | 85MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.047" (1.20mm) |
|
EXL1V0603-2R2-RFIXED IND 2.2UH 10A 12.2MOHM SMD |
3,212 |
|
Datasheet |
EXL1V0603 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 2.2 µH | ±20% | 10 A | 11A | Shielded | 12.2mOhm Max | - | 29MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.118" (3.00mm) |
|
|
SRP3012TA-R33MFIXED IND 330NH 6.2A 20 MOHM SMD |
1,381 |
|
Datasheet |
SRP3012TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 330 nH | ±20% | 6.2 A | 9.2A | Shielded | 20mOhm Max | - | 150MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.047" (1.20mm) |
|
ETQ-P4MR68KVKFIXED IND 680NH 19.6A 3.19 MOHM |
4,267 |
|
Datasheet |
PCC-M0840M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 680 nH | ±20% | 19.6 A | 29A | Shielded | 3.19mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.335" L x 0.315" W (8.50mm x 8.00mm) | 0.157" (4.00mm) |
|
P1174.472NLFIXED IND 4.7UH 1A 30 MOHM SMD |
122 |
|
Datasheet |
P1174NL | Nonstandard | Tray | Active | Wirewound | - | 4.7 µH | ±20% | 1 A | 1A | Shielded | 30mOhm Max | - | 40MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.265" L x 0.175" W (6.73mm x 4.45mm) | 0.110" (2.79mm) |
|
SRU1063-101YFIXED IND 100UH 1.1A 320MOHM SMD |
500 |
|
Datasheet |
SRU1063 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±30% | 1.1 A | 1.2A | Shielded | 320mOhm Max | 12 @ 2.52MHz | 4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.268" (6.80mm) |
|
EST0645T1R0NDGAFIXED IND 1UH 5.2A 9 MOHM SMD |
1,033 |
|
Datasheet |
ES, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 5.2 A | 6.7A | Shielded | 9mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | - | - | Surface Mount | - | 0.248" L x 0.240" W (6.30mm x 6.10mm) | 0.177" (4.50mm) |
|
ASPI-0804T-1R0M-TFIXED IND 1UH 9A 9 MOHM SMD |
1,000 |
|
Datasheet |
ASPI-0804T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 9 A | - | Unshielded | 9mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.21mm) |
|
|
EST0645T470MDGAFIXED IND 47UH 1.4A 135 MOHM SMD |
1,000 |
|
Datasheet |
ES, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.2 A | 850mA | Shielded | 135mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
|
|
ASPI-0804T-330M-TFIXED IND 33UH 2A 100 MOHM SMD |
970 |
|
Datasheet |
ASPI-0804T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2 A | - | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.21mm) |
|
PM124SH-470M-RCFIXED IND 47UH 2A 135 MOHM SMD |
2,929 |
|
Datasheet |
PM124SH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2 A | 1.8A | Shielded | 135mOhm Max | 19 @ 2.52MHz | 13MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
PM5022S-101M-RCFIXED IND 100UH 1.3A 270MOHM SMD |
1,098 |
|
Datasheet |
PM5022S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.3 A | 2.6A | Shielded | 270mOhm | 40 @ 796kHz | 4.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.280" (7.10mm) |
|
SRR1206-560YLFIXED IND 56UH 1.45A 155MOHM SMD |
600 |
|
Datasheet |
SRR1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±15% | 1.45 A | 2.5A | Shielded | 155mOhm Max | 21 @ 2.52MHz | 7MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.256" (6.50mm) |
|
SRR1205-3R3MLFIXED IND 3.3UH 4.5A 30 MOHM SMD |
1,095 |
|
Datasheet |
SRR1205 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 4.5 A | 9.2A | Shielded | 30mOhm Max | 20 @ 7.96MHz | 25MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.217" (5.50mm) |
|
#B952AS-H-3R9N=P3FIXED IND 3.9UH 4.6A 18 MOHM SMD |
3,258 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±30% | 4.6 A | 5.8A | Shielded | 18mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
#B952AS-H-270M=P3FIXED IND 27UH 1.8A 100 MOHM SMD |
3,876 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 1.8 A | 2.2A | Shielded | 100mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
SRR1208-391KLFIXED IND 390UH 800MA 670MOHM SM |
800 |
|
Datasheet |
SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 800 mA | 1.1A | Shielded | 670mOhm Max | 14 @ 796kHz | 1.6MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
