Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBCP-47HY391BFIXED IND 390UH 250MA 2 OHM TH |
497 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 250 mA | 250mA | Unshielded | 2Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.335" (8.50mm) |
|
|
SBCP-47HY821BFIXED IND 820UH 160MA 5.3 OHM TH |
491 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 160 mA | 170mA | Unshielded | 5.3Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.335" (8.50mm) |
|
PM43-470K-RCFIXED IND 47UH 540MA 840MOHM SMD |
475 |
|
Datasheet |
PM43 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 540 mA | 780mA | Unshielded | 840mOhm | 20 @ 2.52MHz | 13MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
PM43-120M-RCFIXED IND 12UH 1.05A 210MOHM SMD |
467 |
|
Datasheet |
PM43 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 1.05 A | 1.6A | Unshielded | 210mOhm Max | 28 @ 2.52MHz | 30MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
SBCP-47HY3R9BFIXED IND 3.9UH 2.15A 40 MOHM TH |
446 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±20% | 2.15 A | 2.51A | Unshielded | 40mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.335" (8.50mm) |
|
|
SBCP-47HY681BFIXED IND 680UH 190MA 3.5 OHM TH |
425 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 190 mA | 190mA | Unshielded | 3.5Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.335" (8.50mm) |
|
SDR1307-1R5MLFIXED IND 1.5UH 9.5A 5 MOHM SMD |
394 |
|
Datasheet |
SDR1307 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 9.5 A | 20A | Unshielded | 5mOhm Max | 20 @ 7.96MHz | 65MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.287" (7.30mm) |
|
|
SBCP-47HY221BFIXED IND 220UH 330MA 1.1 OHM TH |
382 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 330 mA | 330mA | Unshielded | 1.1Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.335" (8.50mm) |
|
|
SBCP-47HY4R7BFIXED IND 4.7UH 2.1A 43 MOHM TH |
295 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 2.1 A | 2.3A | Unshielded | 43mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.335" (8.50mm) |
|
|
SBCP-47HY152BFIXED IND 1.5MH 130MA 8 OHM TH |
219 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±10% | 130 mA | 130mA | Unshielded | 8Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.335" (8.50mm) |
|
IMC1210SY100KFIXED IND 10UH 189MA 2.1 OHM SMD |
107 |
|
Datasheet |
IMC-1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±10% | 189 mA | - | Unshielded | 2.1Ohm Max | 30 @ 2.52MHz | 33MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|
HCM0503-R75-RFIXED IND 750NH 11.3A 9.35 MOHM |
103 |
|
Datasheet |
HCM0503 | 2020 (5050 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 750 nH | ±20% | 11.3 A | 9.7A | Shielded | 9.35mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.203" L x 0.201" W (5.15mm x 5.10mm) | 0.118" (3.00mm) |
|
PM105SB-100M-RCFIXED IND 10UH 2.1A 60 MOHM SMD |
1,288 |
|
Datasheet |
PM105SB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.1 A | - | Shielded | 60mOhm Max | 39 @ 2.52MHz | 29MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.390" L x 0.390" W (9.90mm x 9.90mm) | 0.189" (4.80mm) |
|
|
PM105SB-220M-RCFIXED IND 22UH 1.4A 80 MOHM SMD |
1,000 |
|
Datasheet |
PM105SB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.4 A | - | Shielded | 80mOhm Max | 35 @ 2.52MHz | 18MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.390" L x 0.390" W (9.90mm x 9.90mm) | 0.189" (4.80mm) |
|
EXLA1V0705-4R7-RIND MOLDED SHLD 4.7UH 8.5A |
995 |
|
Datasheet |
EXLA1V07 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 4.7 µH | ±20% | 11 A | 13A | Shielded | 15.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.197" (5.00mm) |
|
AMPLA7050S-R40MTFIXED IND 400NH 23A 3.7 MOHM SMD |
664 |
|
Datasheet |
AMPLA7050S | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 400 nH | ±20% | 23 A | 31A | Shielded | 3.7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
PM105SB-330L-RCFIXED IND 33UH 1.2A 110 MOHM SMD |
631 |
|
Datasheet |
PM105SB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±15% | 1.2 A | - | Shielded | 110mOhm Max | 27 @ 2.52MHz | 14MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.390" L x 0.390" W (9.90mm x 9.90mm) | 0.189" (4.80mm) |
|
|
PM105SB-150M-RCFIXED IND 15UH 1.7A 70 MOHM SMD |
460 |
|
Datasheet |
PM105SB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.7 A | - | Shielded | 70mOhm Max | 35 @ 2.52MHz | 24MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.390" L x 0.390" W (9.90mm x 9.90mm) | 0.189" (4.80mm) |
|
SDR6603-680MFIXED IND 68UH 400MA 860MOHM SMD |
1,099 |
|
Datasheet |
SDR6603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 400 mA | 400mA | Unshielded | 860mOhm Max | 18 @ 2.52MHz | 11MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|

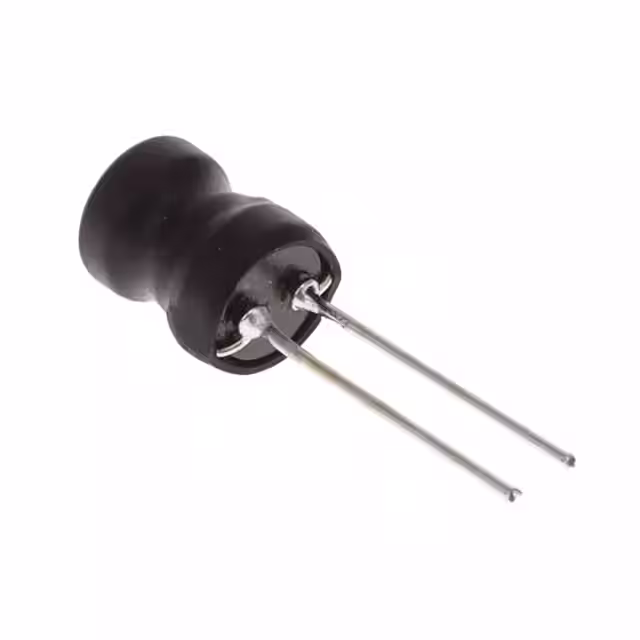

7447728FIXED IND 10UH 550MA 50 MOHM TH |
314 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 550 mA | - | Unshielded | 50mOhm Max | 60 @ 2.52MHz | 20MHz | - | -25°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.268" Dia (6.80mm) | 0.512" (13.00mm) |
