Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDR1030-4R7MFIXED IND 4.7UH 2.6A 40 MOHM SMD |
4,503 |
|
Datasheet |
SDR1030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 2.6 A | 3.5A | Unshielded | 40mOhm Max | 13 @ 7.96MHz | 49.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.130" (3.30mm) |
|
AMRU00060630220MA1INDUCTOR POWER |
1,722 |
|
Datasheet |
AMRx | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 22 µH | ±20% | 3 A | 3.5A | Shielded | 145mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.118" (3.00mm) |
|
SRR0604-681KLFIXED IND 680UH 150MA 4.8OHM SMD |
964 |
|
Datasheet |
SRR0604 | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 150 mA | 190mA | Shielded | 4.8Ohm Max | 16 @ 796kHz | 6MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.189" (4.80mm) |
|
SRR0603-681KLFIXED IND 680UH 120MA 10.5OHM SM |
845 |
|
Datasheet |
SRR0603 | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 120 mA | 150mA | Shielded | 10.5Ohm Max | 13 @ 796kHz | 3.5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.130" (3.30mm) |
|
ASPI-0630LR-R68M-T15FIXED IND 680NH 16A 6.5 MOHM SMD |
507 |
|
Datasheet |
ASPI-0630LR | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 680 nH | ±20% | 16 A | 17A | Shielded | 6.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.262" W (7.20mm x 6.65mm) | 0.118" (3.00mm) |
|

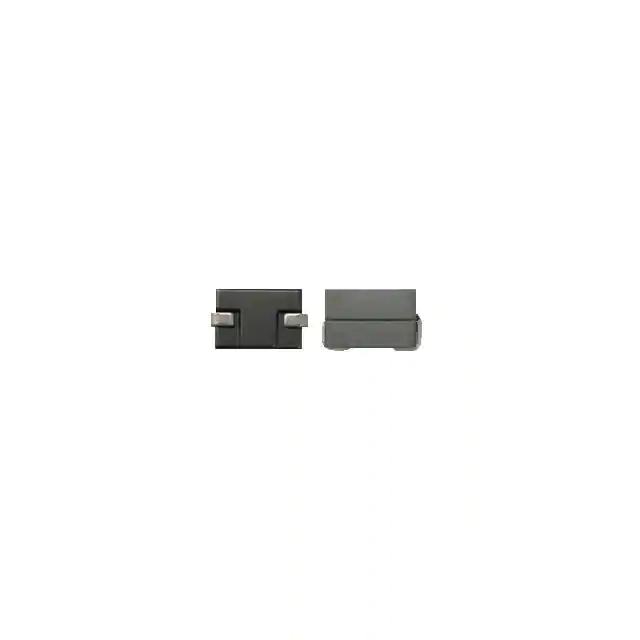

AMSLA-1050-220NM-TIND 0.22UH 33A 0.42M |
1,988 |
|
Datasheet |
AMSLA-1050 | Nonstandard | Tape & Reel (TR) | Active | Molded | Manganese Zinc Ferrite (MnZn) | 220 nH | ±20% | 50 A | 33A | Shielded | 0.42mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.276" W (10.20mm x 7.00mm) | 0.197" (5.00mm) |
|
SRU6025-150YFIXED IND 15UH 1.8A 86 MOHM SMD |
1,410 |
|
Datasheet |
SRU6025 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 1.8 A | 920mA | Shielded | 86mOhm Max | 12 @ 2.52MHz | 22MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.110" (2.80mm) |
|
|
SRU6025-6R8YFIXED IND 6.8UH 2.4A 42 MOHM SMD |
1,221 |
|
Datasheet |
SRU6025 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 2.4 A | 1.3A | Shielded | 42mOhm Max | 8 @ 7.96MHz | 36MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.110" (2.80mm) |
|
PM4342.332NLTFIXED IND 3.3UH 11A 11.8MOHM SMD |
1,022 |
|
Datasheet |
PM4342.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 11 A | 20A | Shielded | 11.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|
744766218FIXED IND 180UH 100MA 9.5OHM SMD |
995 |
|
Datasheet |
WE-GF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 100 mA | - | Unshielded | 9.5Ohm Max | 40 @ 796kHz | 5.5MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 4532 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.142" (3.60mm) |
|
SPM5030T-5R6M-HZFIXED IND 5.6UH 4.5A 73.81 MOHM |
743 |
|
Datasheet |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 5.6 µH | ±20% | 4.5 A | 2.7A | Shielded | 73.81mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.197" W (5.20mm x 5.00mm) | 0.118" (3.00mm) |
|
|
SRU6025-2R2YFIXED IND 2.2UH 3.4A 24 MOHM SMD |
586 |
|
Datasheet |
SRU6025 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 3.4 A | 2.35A | Shielded | 24mOhm Max | 8 @ 7.96MHz | 65MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.110" (2.80mm) |
|
NS10165T2R2NNAFIXED IND 2.2UH 7.32A 8.4MOHM SM |
517 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 7.32 A | 10.8A | Shielded | 8.4mOhm Max | - | 63MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
|
|
744766012FIXED IND 1.2UH 430MA 550MOHM SM |
500 |
|
Datasheet |
WE-GF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±10% | 430 mA | - | Unshielded | 550mOhm Max | 50 @ 7.96MHz | 250MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 4532 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.142" (3.60mm) |
|
|
744766039FIXED IND 3.9UH 330MA 900MOHM SM |
480 |
|
Datasheet |
WE-GF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±10% | 330 mA | - | Unshielded | 900mOhm Max | 50 @ 7.96MHz | 120MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 4532 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.142" (3.60mm) |
|
|
74476606FIXED IND 6.8UH 285MA 1.2OHM SMD |
450 |
|
Datasheet |
WE-GF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 285 mA | - | Unshielded | 1.2Ohm Max | 50 @ 7.96MHz | 35MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 4532 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.142" (3.60mm) |
|
|
744766056FIXED IND 5.6UH 300MA 1.1OHM SMD |
450 |
|
Datasheet |
WE-GF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±10% | 300 mA | - | Unshielded | 1.1Ohm Max | 50 @ 7.96MHz | 60MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 4532 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.142" (3.60mm) |
|
|
744766118FIXED IND 18UH 190MA 2.8 OHM SMD |
358 |
|
Datasheet |
WE-GF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±10% | 190 mA | - | Unshielded | 2.8Ohm Max | 50 @ 2.52MHz | 19MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 4532 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.142" (3.60mm) |
|
|
SRU6025-1R2YFIXED IND 1.2UH 4A 19 MOHM SMD |
1,401 |
|
Datasheet |
SRU6025 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±30% | 4 A | 3.2A | Shielded | 19mOhm Max | 8 @ 7.96MHz | 120MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.110" (2.80mm) |
|
MDMK4040T6R8MMVFIXED IND 6.8UH 1.6A 230MOHM SMD |
1,950 |
|
Datasheet |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 6.8 µH | ±20% | 1.6 A | 1.9A | Shielded | 230mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
