Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRR4528A-6R8YFIXED IND 6.8UH 2.25A 58MOHM SMD |
1,018 |
|
Datasheet |
SRR4528A | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±30% | 2.25 A | 1.37A | Shielded | 58mOhm Max | - | 45MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.110" (2.80mm) |
|
SDR7045-151KFIXED IND 150UH 620MA 580MOHM SM |
1,000 |
|
Datasheet |
SDR7045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 620 mA | 580mA | Unshielded | 580mOhm Max | 17 @ 796kHz | 8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
SRR4818A-1R5YFIXED IND 1.5UH 4.7A 35 MOHM SMD |
952 |
|
Datasheet |
SRR4818A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 4.7 A | 3A | Shielded | 35mOhm Max | - | 105MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.079" (2.00mm) |
|
SRR4828A-150MFIXED IND 15UH 1.8A 145 MOHM SMD |
943 |
|
Datasheet |
SRR4828A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.8 A | 920mA | Shielded | 145mOhm Max | - | 25MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
LSXBH10050HL6R5NFIXED IND 6.5UH 5.2A 23.4MOHM SM |
933 |
|
Datasheet |
LSXB | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.5 µH | ±30% | 5.2 A | 6A | Shielded | 18mOhm | - | 19MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.386" W (10.00mm x 9.80mm) | 0.197" (5.00mm) |
|
|
SRR4828A-8R2YFIXED IND 8.2UH 2.4A 87 MOHM SMD |
909 |
|
Datasheet |
SRR4828A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±30% | 2.4 A | 1.25A | Shielded | 87mOhm Max | - | 35MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
SDR7045-220MFIXED IND 22UH 1.4A 125 MOHM SMD |
896 |
|
Datasheet |
SDR7045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.4 A | 1.62A | Unshielded | 125mOhm Max | 26 @ 2.52MHz | 18MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
|
SRR4528A-101MFIXED IND 100UH 560MA 609MOHM SM |
855 |
|
Datasheet |
SRR4528A | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 560 mA | 340mA | Shielded | 609mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.110" (2.80mm) |
|
|
SRR4528A-2R7YFIXED IND 2.7UH 3.4A 29MOHM SMD |
819 |
|
Datasheet |
SRR4528A | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | - | Ferrite | 2.7 µH | ±30% | 3.4 A | 2.1A | Shielded | 29mOhm Max | - | 68MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.110" (2.80mm) |
|
|
SRR4828A-1R2YFIXED IND 1.2UH 5A 24 MOHM SMD |
557 |
|
Datasheet |
SRR4828A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±30% | 5 A | 3A | Shielded | 24mOhm Max | - | 155MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
SRR3818A-680MFIXED IND 68UH 460MA 1.6 OHM SMD |
509 |
|
Datasheet |
SRR3818A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 460 mA | 240mA | Shielded | 1.6Ohm Max | - | 13MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.079" (2.00mm) |
|
|
SRR3818A-2R7YFIXED IND 2.7UH 2.5A 65 MOHM SMD |
507 |
|
Datasheet |
SRR3818A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±30% | 2.5 A | 1.3A | Shielded | 65mOhm Max | - | 90MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.079" (2.00mm) |
|
|
SRR4528A-1R8YFIXED IND 1.8UH 4.2A 20MOHM SMD |
495 |
|
Datasheet |
SRR4528A | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | - | Ferrite | 1.8 µH | ±30% | 4.2 A | 2.5A | Shielded | 20mOhm Max | - | 78MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.110" (2.80mm) |
|
|
SRR4528A-391MFIXED IND 390UH 280MA 2.38OHM SM |
495 |
|
Datasheet |
SRR4528A | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | - | Ferrite | 390 µH | ±20% | 280 mA | 170mA | Shielded | 2.38Ohm Max | - | 4MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.110" (2.80mm) |
|

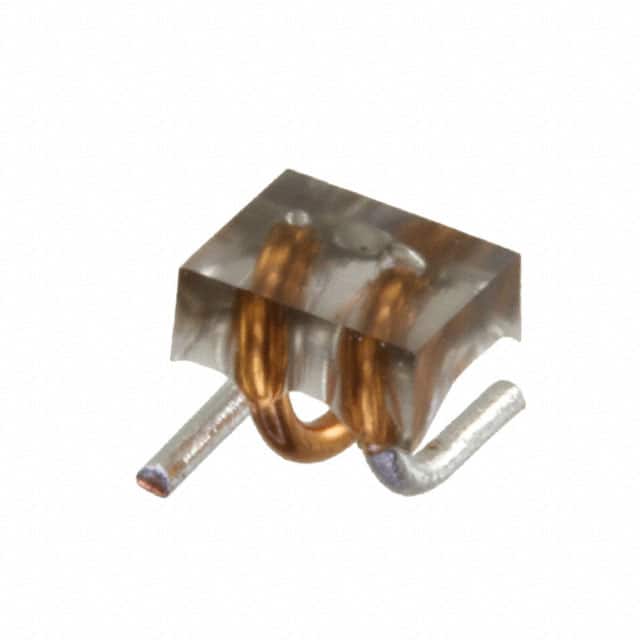

744913050FIXED IND 5NH 4A 1.8 MOHM SMD |
426 |
|
Datasheet |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 5 nH | ±5% | 4 A | - | Unshielded | 1.8mOhm Max | 140 @ 150MHz | 6.5GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.145" L x 0.120" W (3.68mm x 3.05mm) | 0.125" (3.18mm) |
|
|
SRR4828A-2R7YFIXED IND 2.7UH 4A 34 MOHM SMD |
396 |
|
Datasheet |
SRR4828A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±30% | 4 A | 2.2A | Shielded | 34mOhm Max | - | 80MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
744911071FIXED IND 7.15NH 1.6A 10MOHM SMD |
267 |
|
Datasheet |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 7.15 nH | ±5% | 1.6 A | - | Unshielded | 10mOhm Max | 100 @ 800MHz | 6GHz | AEC-Q200 | -40°C ~ 125°C | 800 MHz | - | Surface Mount | 1340 | 0.159" L x 0.056" W (4.04mm x 1.42mm) | 0.060" (1.52mm) |
|
|
SRR4818A-5R6YFIXED IND 5.6UH 2.3A 90 MOHM SMD |
167 |
|
Datasheet |
SRR4818A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±30% | 2.3 A | 1.35A | Shielded | 90mOhm Max | - | 50MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.079" (2.00mm) |
|
RL622-683K-RCFIXED IND 68MH 20MA 150 OHM TH |
138 |
|
Datasheet |
RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 68 mH | ±10% | 20 mA | - | Unshielded | 150Ohm Max | 20 @ 79.6kHz | 100kHz | - | -55°C ~ 105°C | 79.6 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.433" (11.00mm) |
|
|
SRR4528A-330MFIXED IND 33UH 950MA 239MOHM SMD |
3,780 |
|
Datasheet |
SRR4528A | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±20% | 950 mA | 590mA | Shielded | 239mOhm Max | - | 18MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.110" (2.80mm) |
