Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6000-120K-RCFIXED IND 12UH 3.1A 50 MOHM TH |
1,157 |
|
Datasheet |
6000 | Radial, Vertical Cylinder | Bulk | Not For New Designs | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 3.1 A | - | Unshielded | 50mOhm Max | 50 @ 2.52MHz | 13MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
EXL1V0503-1R0-RFIXED IND 1UH 12.2A 7.6MOHM SMD |
4,202 |
|
Datasheet |
EXL1V0503 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 1 µH | ±20% | 12.2 A | 14.3A | Shielded | 7.6mOhm Max | - | 50MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.224" W (6.00mm x 5.70mm) | 0.122" (3.10mm) |
|
IMC1210ERR56KFIXED IND 560NH 450MA 550MOHM SM |
985 |
|
Datasheet |
IMC-1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 560 nH | ±10% | 450 mA | - | Unshielded | 550mOhm Max | 30 @ 25.2MHz | 180MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|

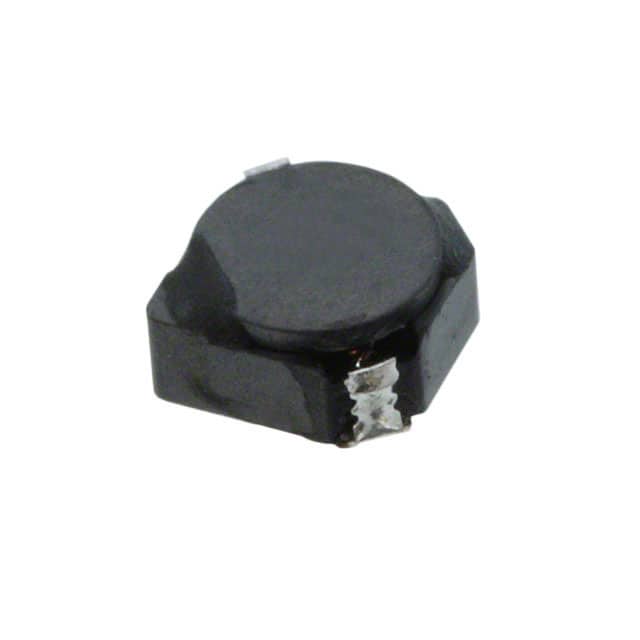

CDRH3D18NP-220NCFIXED IND 22UH 600MA 424MOHM SMD |
939 |
|
Datasheet |
CDRH3D18 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±30% | 600 mA | 600mA | Shielded | 424mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.079" (2.00mm) |
|
AIUR-02H-220KFIXED IND 22UH 1.4A 65 MOHM TH |
350 |
|
Datasheet |
AIUR-02H | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 1.4 A | 2.4A | Unshielded | 65mOhm Max | 20 @ 2.52MHz | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.472" (12.00mm) |
|
SRR0805-150MFIXED IND 15UH 1.3A 140 MOHM SMD |
1,645 |
|
Datasheet |
SRR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.3 A | 1.8A | Shielded | 140mOhm Max | 40 @ 2.52MHz | 22MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.185" (4.70mm) |
|
|
SRR0805-2R2MFIXED IND 2.2UH 2.5A 40 MOHM SMD |
1,559 |
|
Datasheet |
SRR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.5 A | 4.9A | Shielded | 40mOhm Max | 18 @ 7.96MHz | 75MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.185" (4.70mm) |
|
SRR0603-471KLFIXED IND 470UH 150MA 6.7OHM SMD |
1,231 |
|
Datasheet |
SRR0603 | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 150 mA | 190mA | Shielded | 6.7Ohm Max | 17 @ 796kHz | 4MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.130" (3.30mm) |
|
|
SRR0805-121KFIXED IND 120UH 450MA 750MOHM SM |
955 |
|
Datasheet |
SRR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 450 mA | 660mA | Shielded | 750mOhm Max | 42 @ 796kHz | 7MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.185" (4.70mm) |
|
|
SRR0805-221KFIXED IND 220UH 300MA 1.18OHM SM |
913 |
|
Datasheet |
SRR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 300 mA | 550mA | Shielded | 1.18Ohm Max | 38 @ 796kHz | 4.5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.185" (4.70mm) |
|

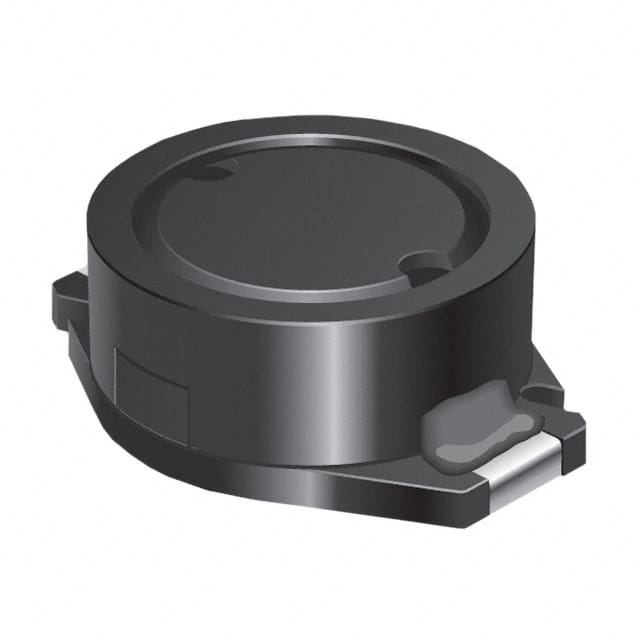

SRR1003-151MFIXED IND 150UH 320MA 1.8OHM SMD |
878 |
|
Datasheet |
SRR1003 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 320 mA | 800mA | Shielded | 1.8Ohm Max | 23 @ 796kHz | 8MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.406" W (12.70mm x 10.30mm) | 0.118" (3.00mm) |
|
|
SRR0805-120MFIXED IND 12UH 1.4A 120 MOHM SMD |
700 |
|
Datasheet |
SRR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 1.4 A | 2.1A | Shielded | 120mOhm Max | 40 @ 2.52MHz | 24MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.185" (4.70mm) |
|
7447462010FIXED IND 1UH 8.5A 15 MOHM TH |
662 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 8.5 A | 8A | Unshielded | 15mOhm Max | - | 140MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.236" Dia (6.00mm) | 0.335" (8.50mm) |
|
SPM4010T-2R2M-LRFIXED IND 2.2UH 2.6A 116.6 MOHM |
479 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 2.6 A | 3.2A | Shielded | 116.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.039" (1.00mm) |
|
|
SRR0805-470YFIXED IND 47UH 750MA 280MOHM SMD |
425 |
|
Datasheet |
SRR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±15% | 750 mA | 1A | Shielded | 280mOhm Max | 32 @ 2.52MHz | 10.5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.185" (4.70mm) |
|
VLCF5024T-100MR88-2FIXED IND 10UH 880MA 92 MOHM SMD |
373 |
|
Datasheet |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 880 mA | 880mA | Shielded | 92mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.094" (2.40mm) |
|
|
7447462068FIXED IND 6.8UH 3.3A 34 MOHM TH |
355 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 3.3 A | 3A | Unshielded | 34mOhm Max | - | 32MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.236" Dia (6.00mm) | 0.335" (8.50mm) |
|
|
7447462680FIXED IND 68UH 800MA 400 MOHM TH |
354 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 800 mA | 1A | Unshielded | 400mOhm Max | - | 7.5MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.236" Dia (6.00mm) | 0.335" (8.50mm) |
|
|
7447462681FIXED IND 680UH 250MA 3.7 OHM TH |
302 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 250 mA | 300mA | Unshielded | 3.7Ohm Max | - | 2.4MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.236" Dia (6.00mm) | 0.335" (8.50mm) |
|
12RS473CFIXED IND 47UH 2.2A 100 MOHM TH |
144 |
|
Datasheet |
1200RS | Radial, Vertical Cylinder, 4 Leads | Bulk | Active | Wirewound | - | 47 µH | ±15% | 2.2 A | - | Shielded | 100mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.335" (8.50mm) |
