Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPM10040T-2R2MFIXED IND 2.2UH 12A 7.5 MOHM SMD |
1,088 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 12 A | 12.2A | Shielded | 7.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.157" (4.00mm) |
|
SRU1063A-150YFIXED IND 15UH 3.2A 42 MOHM SMD |
1,012 |
|
Datasheet |
SRU1063A | 4-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 3.2 A | 3.4A | Shielded | 42mOhm Max | 12 @ 2.52MHz | 14MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.268" (6.80mm) |
|
PM3316-221M-RCFIXED IND 220UH 700MA 780MOHM SM |
559 |
|
Datasheet |
PM3316 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 700 mA | 800mA | Unshielded | 780mOhm | 33 @ 50kHz | 5MHz | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.209" (5.30mm) |
|
SLF10145T-151MR79-HFIXED IND 150UH 810MA 420MOHM SM |
500 |
|
Datasheet |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 810 mA | 790mA | Shielded | 420mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.189" (4.80mm) |
|
PA0277NLFIXED IND 700NH 10.7A 95MOHM SMD |
3,326 |
|
Datasheet |
VOLTA 2 | Nonstandard | Tray | Active | - | - | 700 nH | ±20% | 10.7 A | 12.6A | Unshielded | 95mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.350" L x 0.250" W (8.89mm x 6.35mm) | 0.177" (4.50mm) |
|
|
PM3316-1R0M-RCFIXED IND 1UH 7.5A 7 MOHM SMD |
576 |
|
Datasheet |
PM3316 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 7.5 A | 9A | Unshielded | 7mOhm | 20 @ 10MHz | 137MHz | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.209" (5.30mm) |
|
17473CFIXED IND 47UH 860MA 200MOHM TH |
1,682 |
|
Datasheet |
1700 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 47 µH | ±10% | 860 mA | - | Unshielded | 200mOhm Max | 50 @ 500kHz | 10.9MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
SRR1210-821MFIXED IND 820UH 850MA 1.32OHM SM |
750 |
|
Datasheet |
SRR1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±20% | 850 mA | 750mA | Shielded | 1.32Ohm Max | 6 @ 796kHz | 850kHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
EXL1V0606-5R6-RFIXED IND 5.6UH 10A 15.8MOHM SMD |
750 |
|
Datasheet |
EXL1V0606 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 5.6 µH | ±20% | 10 A | 9A | Shielded | 15.8mOhm Max | - | 17MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.236" (6.00mm) |
|
|
EXL1V0606-100-RFIXED IND 10UH 7A 29.3 MOHM SMD |
1,588 |
|
Datasheet |
EXL1V0606 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 10 µH | ±20% | 7 A | 6.8A | Shielded | 29.3mOhm Max | - | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.236" (6.00mm) |
|

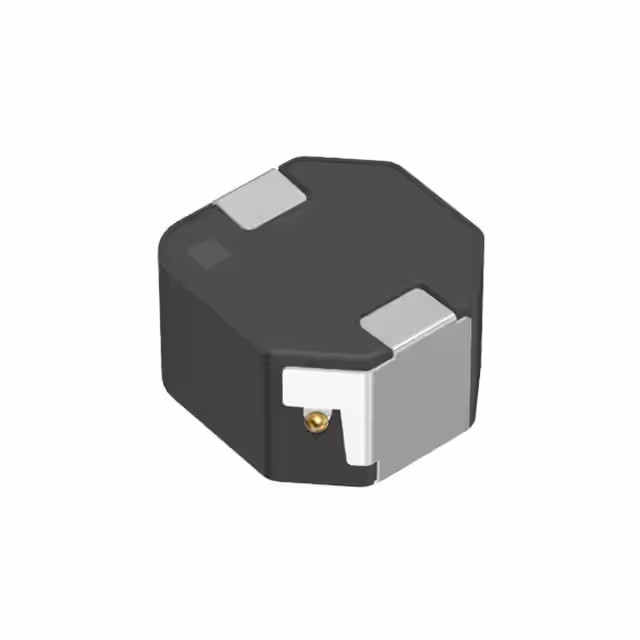

SPM10065VT-2R2M-DFIXED IND 2.2UH 16.6A 0.0046OHM |
500 |
|
Datasheet |
SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.2 µH | ±20% | 16.6 A | 20.7A | Shielded | 4.6mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 1006 | 0.413" L x 0.394" W (10.50mm x 10.00mm) | 0.256" (6.50mm) |
|
SRP7028A-R56MFIXED IND 560NH 16.5A 5 MOHM SMD |
1,000 |
|
Datasheet |
SRP7028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 560 nH | ±20% | 16.5 A | 25.5A | Shielded | 5mOhm Max | 15 @ 100kHz | 70MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
744732681FIXED IND 680UH 420MA 2.2 OHM TH |
100 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 420 mA | 750mA | Unshielded | 2.2Ohm Max | - | 2.3MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
|
744732470FIXED IND 47UH 1.8A 140 MOHM TH |
4,468 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 1.8 A | 1.9A | Unshielded | 140mOhm Max | - | 9.6MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
B82462A4332M000FIXED IND 3.3UH 2A 60 MOHM SMD |
1,620 |
|
Datasheet |
B82462-A4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2 A | 3.2A | Unshielded | 60mOhm Max | - | 60MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
744732471FIXED IND 470UH 450MA 1.7 OHM TH |
4,623 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 450 mA | 900mA | Unshielded | 1.7Ohm Max | - | 2.8MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
7447452102FIXED IND 1MH 600MA 1.55 OHM TH |
3,551 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±5% | 600 mA | 550mA | Unshielded | 1.55Ohm Max | - | 1.4MHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.531" (13.50mm) |
|
SPM5012T-2R2M-LRFIXED IND 2.2UH 3.2A 67.7MOHM SM |
1,052 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 3.2 A | 5.8A | Shielded | 67.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.047" (1.20mm) |
|
|
SPM4020T-4R7M-LRFIXED IND 4.7UH 2.5A 147.2 MOHM |
589 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 2.5 A | 3.5A | Shielded | 147.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.079" (2.00mm) |
|
SBC9-680-152FIXED IND 68UH 1.5A 150 MOHM TH |
1,189 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 1.5 A | 3.7A | Unshielded | 150mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.472" (12.00mm) |
