Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCM0503-1R0-RFIXED IND 1UH 10.1A 11.44MOHM SM |
718 |
|
Datasheet |
HCM0503 | 2020 (5050 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 10.1 A | 8.5A | Shielded | 11.44mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.203" L x 0.201" W (5.15mm x 5.10mm) | 0.118" (3.00mm) |
|
SDR1307-221KLFIXED IND 220UH 1.3A 360MOHM SMD |
671 |
|
Datasheet |
SDR1307 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 1.3 A | 2.1A | Unshielded | 360mOhm Max | 15 @ 796kHz | 3.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.287" (7.30mm) |
|
|
SDR1307-333KLFIXED IND 33MH SMD |
629 |
|
Datasheet |
SDR1307 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 mH | ±10% | - | - | Unshielded | - | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.287" (7.30mm) |
|
|
SDR1307-561KLFIXED IND 560UH 850MA 880MOHM SM |
525 |
|
Datasheet |
SDR1307 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 850 mA | 1.3A | Unshielded | 880mOhm Max | 10 @ 796kHz | 2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.287" (7.30mm) |
|
SLF10145T-5R6M3R2-PFFIXED IND 5.6UH 3.2A 26.4MOHM SM |
470 |
|
Datasheet |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 3.2 A | 3.8A | Shielded | 26.4mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.189" (4.80mm) |
|
|
SDR1307-390KLFIXED IND 39UH 2.9A 75 MOHM SMD |
457 |
|
Datasheet |
SDR1307 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±10% | 2.9 A | 4.6A | Unshielded | 75mOhm Max | 28 @ 2.52MHz | 9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.287" (7.30mm) |
|
MWSA0503S-4R7MTFIXED IND 4.7UH 4.5A 60MOHM SMD |
455 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 4.7 µH | ±20% | 4.5 A | 4.6A | Shielded | 60mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
SBCP-47HY120BFIXED IND 12UH 1.4A 76 MOHM TH |
432 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 1.4 A | 1.41A | Unshielded | 76mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.335" (8.50mm) |
|
|
SBCP-47HY5R6BFIXED IND 5.6UH 1.95A 49 MOHM TH |
398 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 1.95 A | 2.04A | Unshielded | 49mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.335" (8.50mm) |
|
|
SBCP-47HY8R2BFIXED IND 8.2UH 1.7A 59 MOHM TH |
385 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 1.7 A | 1.74A | Unshielded | 59mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.335" (8.50mm) |
|
|
SDR1307-330KLFIXED IND 33UH 3.1A 65 MOHM SMD |
383 |
|
Datasheet |
SDR1307 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 3.1 A | 5A | Unshielded | 65mOhm Max | 35 @ 2.52MHz | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.287" (7.30mm) |
|
|
SBCP-47HY121BFIXED IND 120UH 450MA 657MOHM TH |
315 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 450 mA | 450mA | Unshielded | 657mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.335" (8.50mm) |
|
CDRH2D18/HPNP-3R3NCFIXED IND 3.3UH 1.55A 86MOHM SMD |
259 |
|
Datasheet |
CDRH2D18/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±30% | 1.55 A | 1.45A | Shielded | 86mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" (2.00mm) |
|
|
MWSA0503S-1R0MTFIXED IND 1UH 8.5A 14 MOHM SMD |
206 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 1 µH | ±20% | 8.5 A | 10A | Shielded | 14mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
AIAC-4125C-R246J-TFIXED IND 246NH 3A 17 MOHM SMD |
188 |
|
Datasheet |
AIAC-4125C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 246 nH | ±5% | 3 A | - | Unshielded | 17mOhm Max | 100 @ 50MHz | 600MHz | - | -40°C ~ 125°C | 50 MHz | - | Surface Mount | - | 0.354" L x 0.173" W (9.00mm x 4.40mm) | 0.197" (5.00mm) |
|

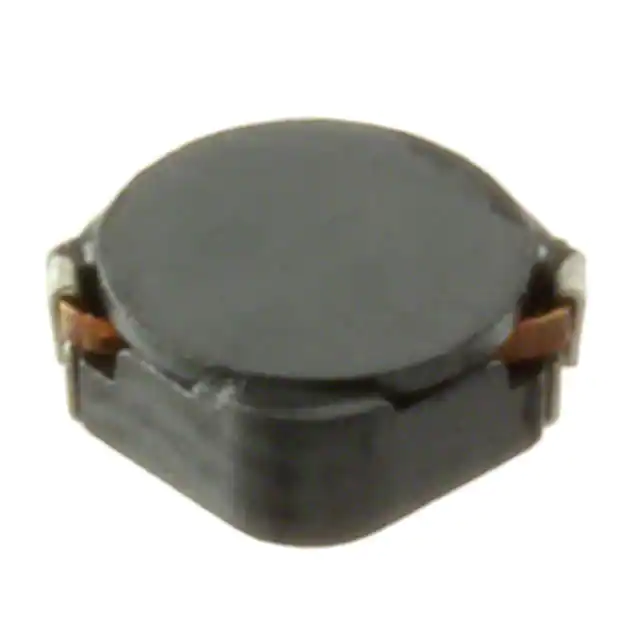

CDRH4D16FB/NP-4R7NCFIXED IND 4.7UH 2A 58.5 MOHM SMD |
178 |
|
Datasheet |
CDRH4D16FB | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±25% | 2 A | 1.2A | Shielded | 58.5mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
PM54-560K-RCFIXED IND 56UH 680MA 420MOHM SMD |
2,934 |
|
Datasheet |
PM54 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 680 mA | 900mA | Unshielded | 420mOhm | 22 @ 2.52MHz | 11MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.189" (4.80mm) |
|
|
AIAC-4125C-R422J-TFIXED IND 422NH 2.5A 39 MOHM SMD |
1,910 |
|
Datasheet |
AIAC-4125C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 422 nH | ±5% | 2.5 A | - | Unshielded | 39mOhm Max | 100 @ 50MHz | 400MHz | - | -40°C ~ 125°C | 50 MHz | - | Surface Mount | - | 0.354" L x 0.173" W (9.00mm x 4.40mm) | 0.197" (5.00mm) |
|
ASPI-104S-100M-TFIXED IND 10UH 3.8A 35 MOHM SMD |
1,382 |
|
Datasheet |
ASPI-104S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.8 A | 4.4A | Shielded | 35mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.157" (4.00mm) |
|
DR1050-102-RFIXED IND 1MH 430MA 1.95 OHM SMD |
1,319 |
|
Datasheet |
DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±30% | 430 mA | 480mA | Shielded | 1.95Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.197" (5.00mm) |
