Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74404031047AFIXED IND 4.7UH 1.4A 139MOHM SMD |
2,327 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 1.3 A | 1.2A | Shielded | 139mOhm | - | 95MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
74404024180FIXED IND 18UH 460MA 830MOHM SMD |
3,043 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 460 mA | 650mA | Shielded | 830mOhm | - | 26MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
SRR1206-331KLFIXED IND 330UH 600MA 660MOHM SM |
670 |
|
Datasheet |
SRR1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 600 mA | 1A | Shielded | 660mOhm Max | 11 @ 796kHz | 3MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.256" (6.50mm) |
|
SRR1205-221KLFIXED IND 220UH 650MA 840MOHM SM |
662 |
|
Datasheet |
SRR1205 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 650 mA | 1.3A | Shielded | 840mOhm Max | 9 @ 796kHz | 3MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.217" (5.50mm) |
|
SRR1005-220YFIXED IND 22UH 1.4A 100 MOHM SMD |
642 |
|
- |
SRR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±15% | 1.4 A | 1.9A | Shielded | 100mOhm Max | 42 @ 2.52MHz | 18MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
|
SRR1206-180MLFIXED IND 18UH 2.5A 50 MOHM SMD |
636 |
|
Datasheet |
SRR1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 2.5 A | 4.7A | Shielded | 50mOhm Max | 19 @ 2.52MHz | 14MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.256" (6.50mm) |
|
|
SRR1206-122KLFIXED IND 1.2MH 250MA 2.65OHM SM |
4,130 |
|
Datasheet |
SRR1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 mH | ±10% | 250 mA | 510mA | Shielded | 2.65Ohm Max | 10 @ 252kHz | 1.5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.256" (6.50mm) |
|
|
SRR1206-221KLFIXED IND 220UH 700MA 460MOHM SM |
3,831 |
|
Datasheet |
SRR1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 700 mA | 1.2A | Shielded | 460mOhm Max | 11 @ 796kHz | 4MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.256" (6.50mm) |
|
|
SRR1206-121YLFIXED IND 120UH 1A 260 MOHM SMD |
3,571 |
|
Datasheet |
SRR1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±15% | 1 A | 1.8A | Shielded | 260mOhm Max | 13 @ 796kHz | 5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.256" (6.50mm) |
|
SLF10165T-150M3R13PFFIXED IND 15UH 3.1A 32.4MOHM SMD |
560 |
|
Datasheet |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.1 A | 3.1A | Shielded | 32.4mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.268" (6.80mm) |
|
CDRH8D43NP-2R0NCFIXED IND 2UH 5.5A 14 MOHM SMD |
100 |
|
Datasheet |
CDRH8D43 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2 µH | ±30% | 5.5 A | 7A | Shielded | 14mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|
SRR6040A-1R0YFIXED IND 1UH 5A 15 MOHM SMD |
4,256 |
|
Datasheet |
SRR6040A | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±30% | 5 A | 5.55A | Shielded | 15mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.157" (4.00mm) |
|
CDRH8D43HPNP-2R7NCFIXED IND 2.7UH 5.1A 19.5MOHM SM |
1,000 |
|
Datasheet |
CDRH8D43/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.7 µH | ±30% | 5.1 A | 8.6A | Shielded | 19.5mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.185" (4.70mm) |
|
SPM5030T-R35MFIXED IND 350NH 16.6A 4.29 MOHM |
500 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 350 nH | ±20% | 16.6 A | 14.9A | Shielded | 4.29mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.197" W (5.20mm x 5.00mm) | 0.118" (3.00mm) |
|

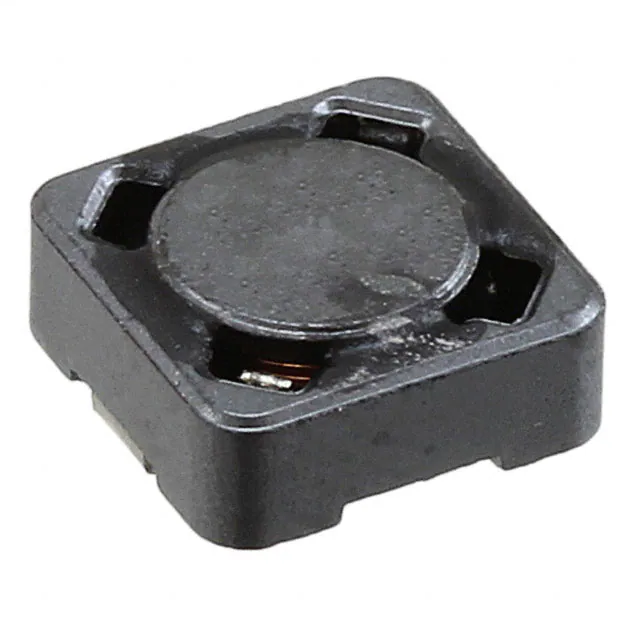

CDRH73NP-100MC-BFIXED IND 10UH 1.68A 72 MOHM SMD |
2,789 |
|
Datasheet |
CDRH73 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 1.68 A | - | Shielded | 72mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.134" (3.40mm) |
|
SDR1806-100MLFIXED IND 10UH 5.3A 25 MOHM SMD |
750 |
|
Datasheet |
SDR1806 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 5.3 A | 10A | Unshielded | 25mOhm Max | 22 @ 2.52MHz | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.272" (6.90mm) |
|
DR124-470-RFIXED IND 47UH 2.2A 149.6MOHM SM |
750 |
|
Datasheet |
DR124 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2.2 A | 2.63A | Shielded | 149.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
VLCF5028T-6R8N1R3-2FIXED IND 6.8UH 1.32A 56MOHM SMD |
4,552 |
|
Datasheet |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 1.32 A | 1.32A | Shielded | 56mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.110" (2.80mm) |
|
SLF7045T-680MR75-HFIXED IND 68UH 750MA 324MOHM SMD |
1,053 |
|
Datasheet |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 750 mA | 750mA | Shielded | 324mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
CLF7045T-101M-DFIXED IND 100UH 750MA 396MOHM SM |
1,026 |
|
Datasheet |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 750 mA | 900mA | Shielded | 396mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.189" (4.80mm) |
