Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AIUR-16-3R9KFIXED IND 3.9UH 1.3A 20 MOHM TH |
993 |
|
Datasheet |
AIUR-16 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±10% | 1.3 A | 2.7A | Unshielded | 20mOhm Max | - | - | - | -25°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.374" (9.50mm) |
|
MDPK5050T6R8MMFIXED IND 6.8UH 2.2A 138MOHM SMD |
841 |
|
Datasheet |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 6.8 µH | ±20% | 2.2 A | 2.7A | Shielded | 138mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.055" (1.40mm) |
|
SDR0703-102KLFIXED IND 1MH 80MA 14.2 OHM SMD |
814 |
|
Datasheet |
SDR0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 80 mA | 130mA | Unshielded | 14.2Ohm Max | 30 @ 252kHz | 3.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.177" W (6.50mm x 4.50mm) | 0.106" (2.70mm) |
|
|
SDR0703-100KLFIXED IND 10UH 1A 170 MOHM SMD |
631 |
|
Datasheet |
SDR0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 1 A | 1.4A | Unshielded | 170mOhm Max | 23 @ 2.52MHz | 36MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.177" W (6.50mm x 4.50mm) | 0.106" (2.70mm) |
|

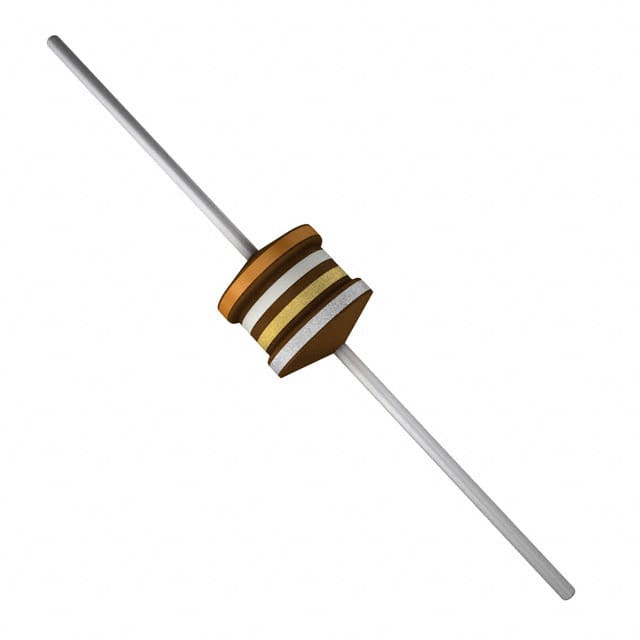

B82144F2392K000FIXED IND 3.9UH 3.35A 0.075OHM |
514 |
|
Datasheet |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±10% | 3.35 A | 4.4A | Unshielded | 75mOhm Max | 60 @ 2.52MHz | 90MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|

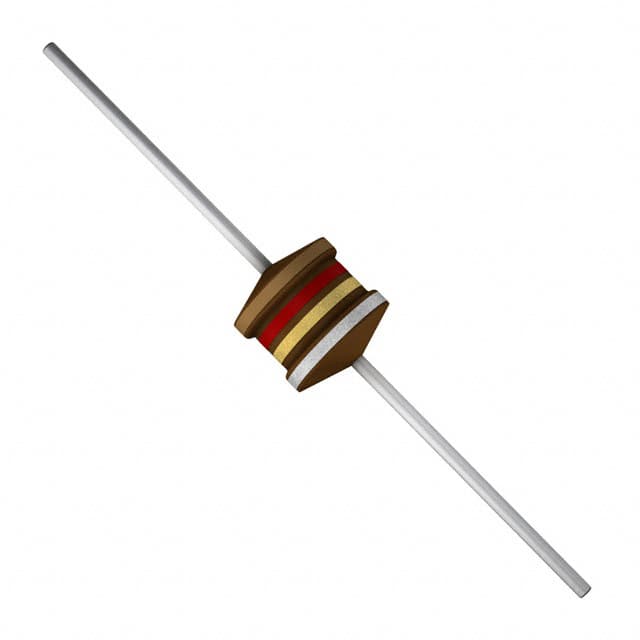

B82144F2122K000FIXED IND 1.2UH 4.25A 0.044OHM |
439 |
|
Datasheet |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±10% | 4.25 A | 7.4A | Unshielded | 44mOhm Max | 60 @ 2.52MHz | 190MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|
|
AIUR-16-101KFIXED IND 100UH 490MA 270MOHM TH |
364 |
|
Datasheet |
AIUR-16 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 490 mA | 530mA | Unshielded | 270mOhm Max | - | - | - | -25°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.374" (9.50mm) |
|
|
AIUR-16-103KFIXED IND 10MH 46MA 27 OHM TH |
298 |
|
Datasheet |
AIUR-16 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±10% | 46 mA | 53mA | Unshielded | 27Ohm Max | - | - | - | -25°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.374" (9.50mm) |
|
|
AIUR-16-470KFIXED IND 47UH 800MA 120 MOHM TH |
280 |
|
Datasheet |
AIUR-16 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 800 mA | 760mA | Unshielded | 120mOhm Max | - | - | - | -25°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.374" (9.50mm) |
|
VLS5030EX-6R8M-DINDUCTORS FOR POWER CIRCUITS, AU |
965 |
|
Datasheet |
VLS-EX-D | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 2.8 A | 2.7A | Shielded | 67.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
AMXLA-Q6030-4R7M-TIND 4.7UH 6A 37M |
567 |
|
Datasheet |
AMXLA-Q6030 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 4.7 µH | ±20% | 6 A | 7A | Shielded | 37mOhm Max | - | - | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
74405031022FIXED IND 2.2UH 1.75A 108MOHM SM |
484 |
|
Datasheet |
WE-LQSH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.75 A | 3.35A | Shielded | 108mOhm Max | - | 46MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 3012 | 0.118" L x 0.106" W (3.00mm x 2.70mm) | 0.047" (1.20mm) |
|
|
74405031100FIXED IND 10UH 850MA 474MOHM SMD |
411 |
|
Datasheet |
WE-LQSH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 850 mA | 1.45A | Shielded | 474mOhm Max | - | 21MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 3012 | 0.118" L x 0.106" W (3.00mm x 2.70mm) | 0.047" (1.20mm) |
|
|
74405031015FIXED IND 1.5UH 2.2A 77 MOHM SMD |
122 |
|
Datasheet |
WE-LQSH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 2.2 A | 4.1A | Shielded | 77mOhm Max | - | 60MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 3012 | 0.118" L x 0.106" W (3.00mm x 2.70mm) | 0.047" (1.20mm) |
|
SRN8040TA-1R5YFIXED IND 1.5UH 8A 10 MOHM SMD |
1,725 |
|
Datasheet |
SRN8040TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 8 A | 11.5A | Shielded | 10mOhm | 15 @ 1MHz | 66MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|
RLB9012-121KLFIXED IND 120UH 1.25A 320MOHM TH |
960 |
|
Datasheet |
RLB9012 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 1.25 A | - | Unshielded | 320mOhm Max | 20 @ 796kHz | 3.4MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
|
RLB9012-330KLFIXED IND 33UH 2.05A 90 MOHM TH |
958 |
|
Datasheet |
RLB9012 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 2.05 A | - | Unshielded | 90mOhm Max | 30 @ 2.52MHz | 7.8MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
|
RLB9012-4R7MLFIXED IND 4.7UH 4.6A 30 MOHM TH |
855 |
|
Datasheet |
RLB9012 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 4.6 A | - | Unshielded | 30mOhm Max | 20 @ 7.96MHz | 51MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
|
RLB9012-6R8MLFIXED IND 6.8UH 4.1A 35 MOHM TH |
810 |
|
Datasheet |
RLB9012 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 4.1 A | - | Unshielded | 35mOhm Max | 20 @ 7.96MHz | 29MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
|
RLB9012-473KLFIXED IND 47MH 80MA 137.8 OHM TH |
781 |
|
Datasheet |
RLB9012 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 47 mH | ±10% | 80 mA | - | Unshielded | 137.8Ohm Max | 15 @ 79kHz | 120kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
