Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744762447AFIXED IND 47UH 45MA 14 OHM SMD |
252 |
|
Datasheet |
WE-RFI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±5% | 45 mA | - | Unshielded | 14Ohm Max | 15 @ 2.52MHz | 17MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
744762082AFIXED IND 8.2NH 1A 60 MOHM SMD |
225 |
|
Datasheet |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 8.2 nH | ±5% | 1 A | - | Unshielded | 60mOhm Max | 50 @ 1GHz | 5.5GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
VLCF4024T-100MR90-2FIXED IND 10UH 900MA 136MOHM SMD |
143 |
|
Datasheet |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 900 mA | 900mA | Shielded | 136mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.094" (2.40mm) |
|
|
744762422AFIXED IND 22UH 110MA 5 OHM SMD |
142 |
|
Datasheet |
WE-RFI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±5% | 110 mA | - | Unshielded | 5Ohm Max | 15 @ 2.52MHz | 22MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|

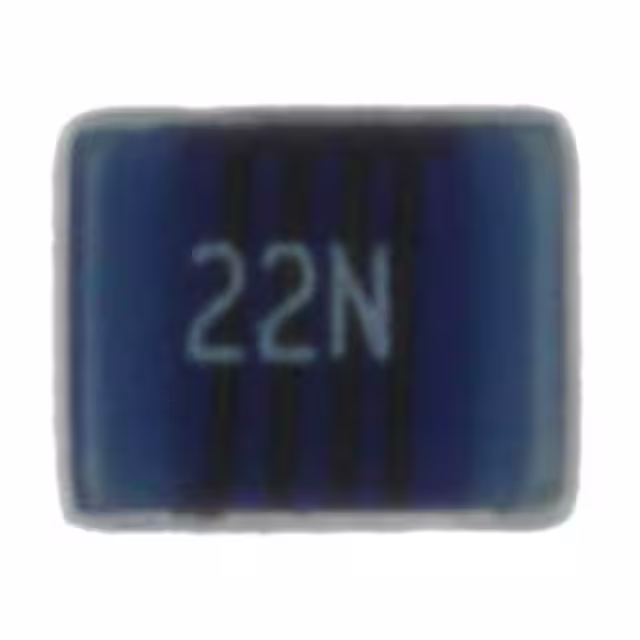

744762122AFIXED IND 22NH 1A 100 MOHM SMD |
103 |
|
Datasheet |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 22 nH | ±5% | 1 A | - | Unshielded | 100mOhm Max | 60 @ 350MHz | 2.5GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
NR6012T100MEFIXED IND 10UH 1A 282 MOHM SMD |
1,933 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1 A | 1A | Shielded | 282mOhm Max | - | 22MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
|
NR6012T470MEFIXED IND 47UH 460MA 1.26OHM SMD |
1,010 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 460 mA | 520mA | Shielded | 1.26Ohm Max | - | 6MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
VLS6045EX-3R6NFIXED IND 3.6UH 4.9A 24 MOHM SMD |
968 |
|
Datasheet |
VLS-EX | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 3.6 µH | ±30% | 4.9 A | 6.2A | Shielded | 24mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|

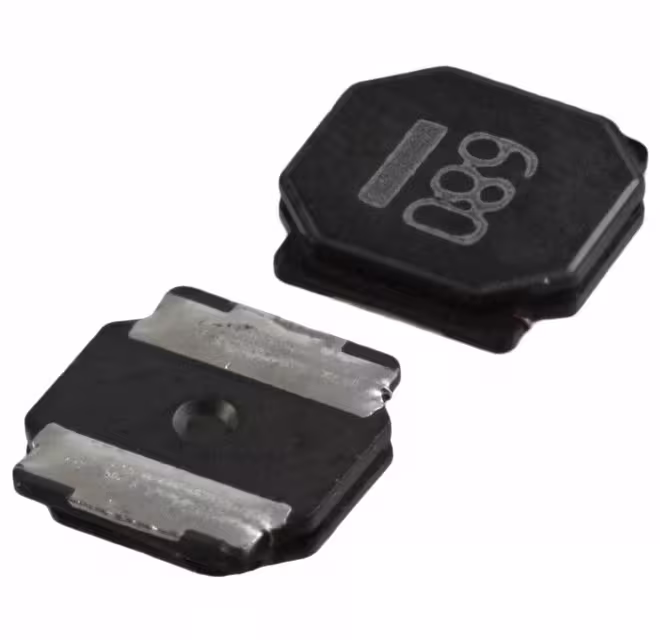

NR6012T680MEFIXED IND 68UH 410MA 1.62OHM SMD |
949 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 410 mA | 440mA | Shielded | 1.62Ohm Max | - | 3MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
SRN4030HA-220MIND,4X4X3MM,22UH20%,1.2A,150C,SH |
949 |
|
Datasheet |
SRN4030HA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.2 A | 1.5A | Shielded | 330mOhm Max | 18 @ 2.52MHz | 13MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
|
SRN4030HA-3R3YIND,4X4X3MM,3.3UH30%,3.4A,150C,S |
895 |
|
Datasheet |
SRN4030HA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 3.4 A | 4A | Shielded | 50mOhm Max | 13 @ 7.96MHz | 39MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
RLB0912-150KLFIXED IND 15UH 2.3A 56 MOHM TH |
795 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 2.3 A | 3A | Unshielded | 56mOhm Max | 50 @ 2.52MHz | 21MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.433" (11.00mm) |
|
RLB0914-181KLFIXED IND 180UH 870MA 540MOHM TH |
626 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 870 mA | 1.63A | Unshielded | 540mOhm Max | 30 @ 796kHz | 2.6MHz | - | -40°C ~ 125°C | 796 kHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.512" (13.00mm) |
|
|
RLB0912-680KLFIXED IND 68UH 1.35A 280 MOHM TH |
581 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 1.35 A | 1.5A | Unshielded | 280mOhm Max | 35 @ 2.52MHz | 9MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.433" (11.00mm) |
|
LQW2BAN51NJ00LFIXED IND 51NH 1.8A 110MOHM SMD |
511 |
|
Datasheet |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 51 nH | ±5% | 1.8 A | - | Unshielded | 110mOhm Max | 75 @ 500MHz | 1.1GHz | - | -55°C ~ 125°C | 200 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
|
SRN4030HA-1R0YIND,4X4X3MM,1UH30%,5.5A,150C,SHD |
443 |
|
Datasheet |
SRN4030HA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 5.5 A | 7.8A | Shielded | 20mOhm Max | 15 @ 7.96MHz | 100MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
|
SRN4030HA-2R2YIND,4X4X3MM,2.2UH30%,4.3A,150C,S |
394 |
|
Datasheet |
SRN4030HA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 4.3 A | 4.9A | Shielded | 30mOhm Max | 14 @ 7.96MHz | 47MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
|
RLB0912-330KLFIXED IND 33UH 1.7A 140 MOHM TH |
234 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 1.7 A | 2A | Unshielded | 140mOhm Max | 45 @ 2.52MHz | 13MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.433" (11.00mm) |
|
|
SRN4030HA-100MIND,4X4X3MM,10UH20%,1.8A,150C,SH |
231 |
|
Datasheet |
SRN4030HA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.8 A | 2.2A | Shielded | 180mOhm Max | 17 @ 2.52MHz | 20MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
ASPI-0628-6R8M-T1FIXED IND 6.8UH 2.2A 52 MOHM SMD |
1,410 |
|
Datasheet |
ASPI-0628 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 2.2 A | 2.2A | Shielded | 52mOhm | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 0628 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
