Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
45684CFIXED IND 680UH 260MA 5 OHM SMD |
286 |
|
Datasheet |
4500 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 260 mA | - | Shielded | 5Ohm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.140" (3.55mm) |
|
NRS5030T470MMGJVFIXED IND 47UH 700MA 422.5 MOHM |
280 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 700 mA | 950mA | Shielded | 422.5mOhm Max | - | 9MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.118" (3.00mm) |
|
36501J33NJTDGFIXED IND 33NH 600MA 220MOHM SMD |
243 |
|
Datasheet |
3650, Sigma Inductors | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 33 nH | ±5% | 600 mA | - | Unshielded | 220mOhm Max | 40 @ 250MHz | 2.3GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
LQW2UASR56F00LFIXED IND 560NH 400MA 1.33OHM SM |
135 |
|
Datasheet |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 560 nH | ±1% | 400 mA | - | Unshielded | 1.33Ohm Max | 45 @ 100MHz | 415MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|
SRN4018TA-150MFIXED IND 15UH 900MA 230MOHM SMD |
134 |
|
Datasheet |
SRN4018TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.1 A | 1.1A | Shielded | 190mOhm | 10 @ 100kHz | 25MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
BMRA000606303R3MA1FIXED IND 3.3UH 6A 35 MOHM SMD |
1,790 |
|
Datasheet |
BMRA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 6 A | 12A | Shielded | 35mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
BMRA00060630R68MA1FIXED IND 680NH 15A 6.3 MOHM SMD |
1,745 |
|
Datasheet |
BMRA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 15 A | 24A | Shielded | 6.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
AIUR-03-1R0MFIXED IND 1UH 3.5A 13 MOHM TH |
928 |
|
Datasheet |
AIUR-03 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 3.5 A | 10A | Unshielded | 13mOhm Max | 20 @ 7.96MHz | 150MHz | - | -25°C ~ 85°C | 7.96 MHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.472" (12.00mm) |
|
|
36502AR68JTDGFIXED IND 680NH 190MA 2.2OHM SMD |
747 |
|
Datasheet |
3650, Sigma Inductors | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 680 nH | ±5% | 190 mA | - | Unshielded | 2.2Ohm Max | 23 @ 50MHz | 200MHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
NRM6045T6R8MMRRVFIXED IND 6.8UH 1.9A 52MOHM SMD |
744 |
|
Datasheet |
NR, M Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.9 A | - | Unshielded | 52mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
36501JR27JTDGFIXED IND 270NH 200MA 2.1OHM SMD |
619 |
|
Datasheet |
3650, Sigma Inductors | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 270 nH | ±5% | 200 mA | - | Unshielded | 2.1Ohm Max | 25 @ 250MHz | 900MHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
ASPI-6045S-1R8N-TFIXED IND 1.8UH 4.95A 12MOHM SMD |
429 |
|
Datasheet |
ASPI-6045S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±30% | 4.95 A | 7.6A | Shielded | 12mOhm | - | 74MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
ASPI-6045S-3R6N-TFIXED IND 3.6UH 3.7A 21 MOHM SMD |
245 |
|
Datasheet |
ASPI-6045S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.6 µH | ±30% | 3.7 A | 5.25A | Shielded | 21mOhm | - | 28MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
ASPI-6045S-121M-TFIXED IND 120UH 700MA 484MOHM SM |
145 |
|
Datasheet |
ASPI-6045S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±20% | 770 mA | 850mA | Shielded | 484mOhm | - | 4.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
36502AR22JTDGFIXED IND 220NH 400MA 700MOHM SM |
143 |
|
Datasheet |
3650, Sigma Inductors | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 220 nH | ±5% | 400 mA | - | Unshielded | 700mOhm Max | 50 @ 250MHz | 850MHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|

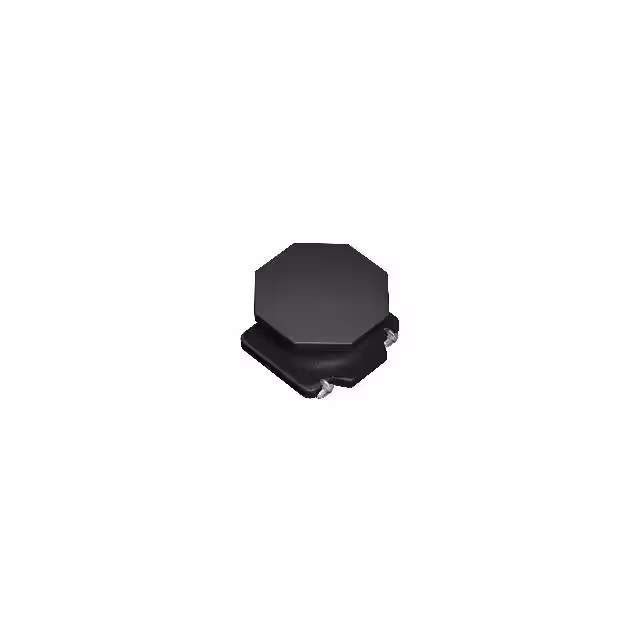

LSDND4040WKT330MMFIXED IND 33UH 800MA 720MOHM SMD |
142 |
|
Datasheet |
LSDN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 33 µH | ±20% | 800 mA | 1.2A | Shielded | 720mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
ASPIAIG-S6055-331M-TFIXED IND 330UH 600MA 1.603 OHM |
1,497 |
|
Datasheet |
ASPIAIG-S6055 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 330 µH | ±20% | 600 mA | 650mA | Shielded | 1.603Ohm | - | 2.8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.224" (5.70mm) |
|
|
ASPIAIG-S6055-3R3M-TFIXED IND 3.3UH 4.6A 26 MOHM SMD |
1,239 |
|
Datasheet |
ASPIAIG-S6055 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 3.3 µH | ±20% | 4.6 A | 6A | Shielded | 26mOhm | - | 32MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.224" (5.70mm) |
|
CC453232A-100KLFIXED IND 10UH 1A 480 MOHM SMD |
971 |
|
Datasheet |
CC453232A | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±10% | 1 A | 700mA | Unshielded | 480mOhm Max | 20 @ 2.52MHz | 20MHz | AEC-Q200 | -40°C ~ 150°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
LQH44PN470MPRLFIXED IND 47UH 750MA NONAUTO |
970 |
|
Datasheet |
LQH44 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 600 mA | 750mA | Shielded | 650mOhm | - | 9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
