Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDCH1V5040-4R7M-RIND 4.7 UH 3.50A SMT |
972 |
|
Datasheet |
SDCH1V50 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±20% | 3.1 A | 3.5A | Shielded | 39mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.161" (4.10mm) |
|
LQW2BHN27NJ03LFIXED IND 27NH 540MA 0.17OHM SMD |
966 |
|
Datasheet |
LQW2 | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Non-Magnetic | 27 nH | ±5% | 540 mA | - | Unshielded | 170mOhm Max | 40 @ 250MHz | 2.3GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.059" W (2.00mm x 1.50mm) | 0.070" (1.78mm) |
|

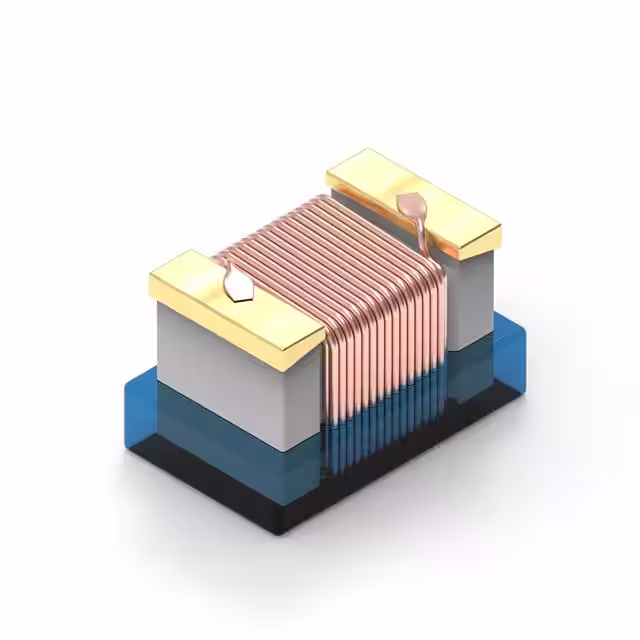

7447602620AWE-KI SMT WIRE WOUND CERAMIC IND |
772 |
|
Datasheet |
WE-KI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 620 nH | ±5% | 230 mA | - | Unshielded | 1.2Ohm Max | 18 @ 100MHz | 250MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
|
744765082AFIXED IND 8.2NH 680MA 104MOHM SM |
285 |
|
Datasheet |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 8.2 nH | ±5% | 680 mA | - | Unshielded | 104mOhm Max | 25 @ 200MHz | 4.4GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
ASPI-0628-100M-T1FIXED IND 10UH 1.9A 65 MOHM SMD |
1,488 |
|
Datasheet |
ASPI-0628 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.9 A | 1.9A | Shielded | 65mOhm | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 0628 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
BWVS00404018101M00FIXED IND 100UH 380MA 1.5OHM SMD |
827 |
|
Datasheet |
BWVS | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 380 mA | 460mA | Shielded | 1.5Ohm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
|
BWVS00404018150M00FIXED IND 15UH 1A 250 MOHM SMD |
660 |
|
Datasheet |
BWVS | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 1 A | 1A | Shielded | 250mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
LQW15CNR47K1ZDFIXED IND 470NH 350MA 0.66OHM SM |
580 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±10% | 350 mA | - | Unshielded | 660mOhm Max | - | 380MHz | AEC-Q200 | -40°C ~ 125°C | 10 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
744901056FIXED IND 5.6NH 280MA 700MOHM SM |
485 |
|
Datasheet |
WE-TCI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 5.6 nH | ±0.1nH | 280 mA | - | Unshielded | 700mOhm Max | 13 @ 500MHz | 6GHz | - | -40°C ~ 125°C | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.40mm) |
|
|
SDCH1V6028-221M-RIND 220 UH 0.55A SMT |
170 |
|
Datasheet |
SDCH1V60 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 µH | ±20% | 500 mA | 550mA | Shielded | 1.495Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
NRS8040T3R3NJGJFIXED IND 3.3UH 4.9A 19.5MOHM SM |
1,613 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 4.9 A | 6.4A | Shielded | 19.5mOhm Max | - | 34MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
NRS8040T2R0NJGJFIXED IND 2UH 6.3A 11.7 MOHM SMD |
1,254 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2 µH | ±30% | 6.3 A | 8.1A | Shielded | 11.7mOhm Max | - | 50MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
NRS8040T330MJGKFIXED IND 33UH 1.7A 130 MOHM SMD |
1,158 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.7 A | 2A | Shielded | 130mOhm Max | - | 12MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
ASPI-0628-220M-T1FIXED IND 22UH 1.4A 135 MOHM SMD |
1,037 |
|
Datasheet |
ASPI-0628 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.4 A | 1.3A | Shielded | 135mOhm | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 0628 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
|
ASPI-0628-6R0M-T1FIXED IND 6UH 2.5A 40 MOHM SMD |
1,000 |
|
Datasheet |
ASPI-0628 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6 µH | ±20% | 2.5 A | 2.5A | Shielded | 40mOhm | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 0628 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|

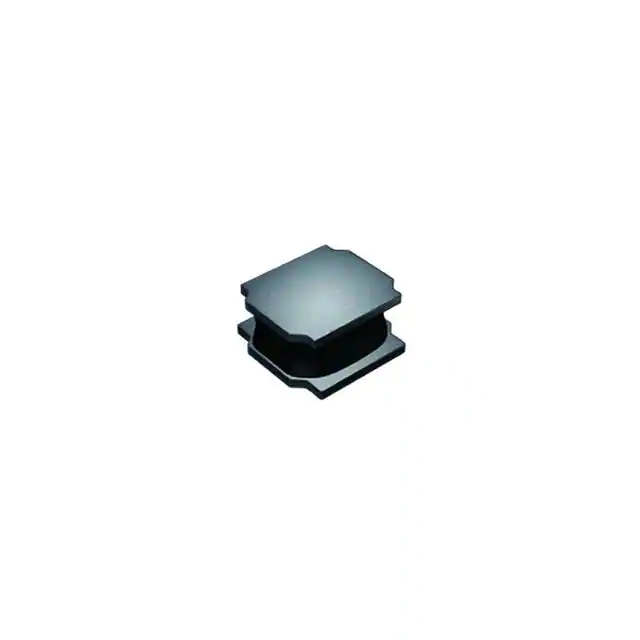

LSXNH8080YKL680MJGFIXED IND 68UH 1.2A 273 MOHM SMD |
932 |
|
Datasheet |
LSXN | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 68 µH | ±20% | 1.2 A | 1.3A | Shielded | 273mOhm Max | - | 7MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
NRS8040T1R4NJGJFIXED IND 1.4UH 7A 9.1 MOHM SMD |
916 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.4 µH | ±30% | 7 A | 10A | Shielded | 9.1mOhm Max | - | 63MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
SRN3010TA-150MFIXED IND 15UH 700MA 510MOHM SMD |
878 |
|
Datasheet |
SRN3010TA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 700 mA | 540mA | Shielded | 510mOhm | 22 @ 1MHz | 35MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 3010 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
ASPI-0628-150M-T1FIXED IND 15UH 1.8A 95 MOHM SMD |
521 |
|
Datasheet |
ASPI-0628 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.8 A | 1.6A | Shielded | 95mOhm | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 0628 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
|
SRN3010TA-6R8MFIXED IND 6.8UH 1A 260 MOHM SMD |
391 |
|
Datasheet |
SRN3010TA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1 A | 770mA | Shielded | 260mOhm | 20 @ 1MHz | 55MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 3010 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
