Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM1812-220J-RCFIXED IND 22UH 180MA 3.2 OHM SMD |
831 |
|
Datasheet |
PM1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±5% | 180 mA | - | Unshielded | 3.2Ohm Max | 50 @ 2.52MHz | 13MHz | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
RLB0712-330KLFIXED IND 33UH 600MA 150 MOHM TH |
632 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 600 mA | - | Unshielded | 150mOhm Max | 20 @ 2.52MHz | 7MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.433" (11.00mm) |
|
|
PM1812-390J-RCFIXED IND 39UH 150MA 4.5 OHM SMD |
625 |
|
Datasheet |
PM1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 39 µH | ±5% | 150 mA | - | Unshielded | 4.5Ohm Max | 50 @ 2.52MHz | 10MHz | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
PM1812-151J-RCFIXED IND 150UH 105MA 9 OHM SMD |
604 |
|
Datasheet |
PM1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 150 µH | ±5% | 105 mA | - | Unshielded | 9Ohm Max | 40 @ 796kHz | 5MHz | - | -40°C ~ 100°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
RLB0712-221KLFIXED IND 220UH 240MA 900MOHM TH |
515 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 240 mA | - | Unshielded | 900mOhm Max | 20 @ 796kHz | 3MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.433" (11.00mm) |
|
CM453232-471JLFIXED IND 470UH 62MA 26 OHM SMD |
450 |
|
Datasheet |
CM45 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±5% | 62 mA | - | Unshielded | 26Ohm Max | 40 @ 796kHz | 3MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
RLB0712-120KLFIXED IND 12UH 1A 80 MOHM TH |
448 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 1 A | - | Unshielded | 80mOhm Max | 20 @ 2.52MHz | 12MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.433" (11.00mm) |
|
NRS5012T100MMGFFIXED IND 10UH 850MA 504MOHM SMD |
265 |
|
Datasheet |
NR, S Type | 2020 (5050 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 850 mA | 1.4A | Shielded | 504mOhm Max | - | 26MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.047" (1.20mm) |
|
|
PM1812-1R5J-RCFIXED IND 1.5UH 410MA 600MOHM SM |
215 |
|
Datasheet |
PM1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1.5 µH | ±5% | 410 mA | - | Unshielded | 600mOhm Max | 50 @ 7.96MHz | 70MHz | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
NRS5012T2R2MMGFFIXED IND 2.2UH 2A 102 MOHM SMD |
156 |
|
Datasheet |
NR, S Type | 2005 (5012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2 A | 3.1A | Shielded | 102mOhm Max | - | 70MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.047" (1.20mm) |
|

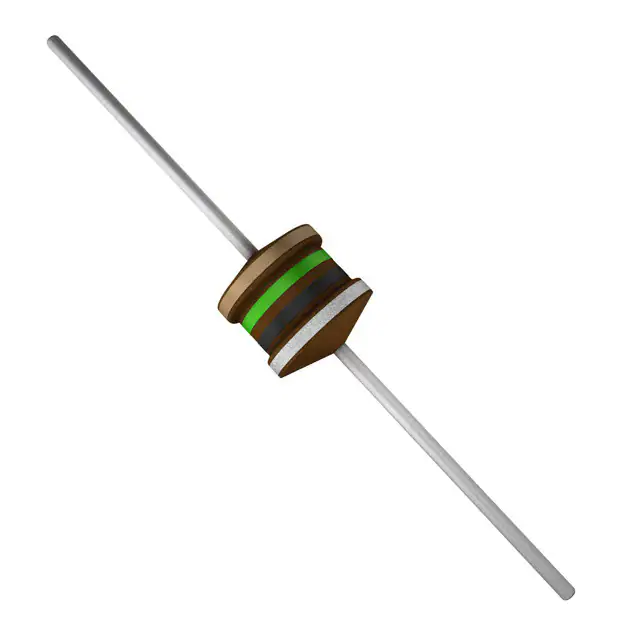

B78108E1153K000FIXED IND 15UH 1.6A 230 MOHM TH |
143 |
|
Datasheet |
BC+ | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 1.6 A | 1.45A | Unshielded | 230mOhm Max | 40 @ 796kHz | 15MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.157" Dia x 0.374" L (4.00mm x 9.50mm) | - |
|
VLS4012CX-3R3M-1FIXED IND 3.3UH SMD |
1,690 |
|
Datasheet |
VLS-CX-1 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | - | - | - | - | - | - | - | - | - | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
VLS4015CX-2R2M-HINDUCTORS FOR POWER CIRCUITS, AU |
1,459 |
|
Datasheet |
VLS-CX-H | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.71 A | 2.59A | Shielded | 84mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.059" (1.50mm) |
|
|
VLS4015CX-470M-HINDUCTORS FOR POWER CIRCUITS, AU |
1,425 |
|
Datasheet |
VLS-CX-H | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 630 mA | 570mA | Shielded | 1.2Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.059" (1.50mm) |
|
|
VLS4015CX-1R0M-HINDUCTORS FOR POWER CIRCUITS, AU |
990 |
|
Datasheet |
VLS-CX-H | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 2.98 A | 3.58A | Shielded | 48mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.059" (1.50mm) |
|
744761120CFIXED IND 20NH 700MA 120MOHM SMD |
961 |
|
Datasheet |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 20 nH | ±5% | 700 mA | - | Unshielded | 120mOhm Max | 35 @ 250MHz | 3.1GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.043" (1.10mm) |
|
NR6045T2R3NFIXED IND 2.3UH 3.5A 27.3MOHM SM |
941 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 2.3 µH | ±30% | 3.5 A | 6A | Shielded | 27.3mOhm Max | - | 60MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
744761233AFIXED IND 330NH 150MA 2 OHM SMD |
886 |
|
Datasheet |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 330 nH | ±5% | 150 mA | - | Unshielded | 2Ohm Max | 25 @ 100MHz | 500MHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.043" (1.10mm) |
|
SDCH1V5040-100M-RIND 10 UH 2.3A SMT |
868 |
|
Datasheet |
SDCH1V50 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 2.2 A | 2.3A | Shielded | 72mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.161" (4.10mm) |
|
|
744761016CFIXED IND 1.6NH 700MA 30MOHM SMD |
463 |
|
Datasheet |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1.6 nH | ±0.2nH | 700 mA | - | Unshielded | 30mOhm Max | 18 @ 250MHz | 12.5GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.043" (1.10mm) |
