Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
11R153CFIXED IND 15UH 800MA 190 MOHM TH |
154 |
|
Datasheet |
1100R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 15 µH | ±10% | 800 mA | - | Unshielded | 190mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.295" (7.50mm) |
.jpg)
|
LQW2UASR39G0CLFIXED IND 390NH 470MA 1.12OHM SM |
126 |
|
Datasheet |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 390 nH | ±2% | 470 mA | - | Unshielded | 1.12Ohm Max | 45 @ 100MHz | 500MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 1008 | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|

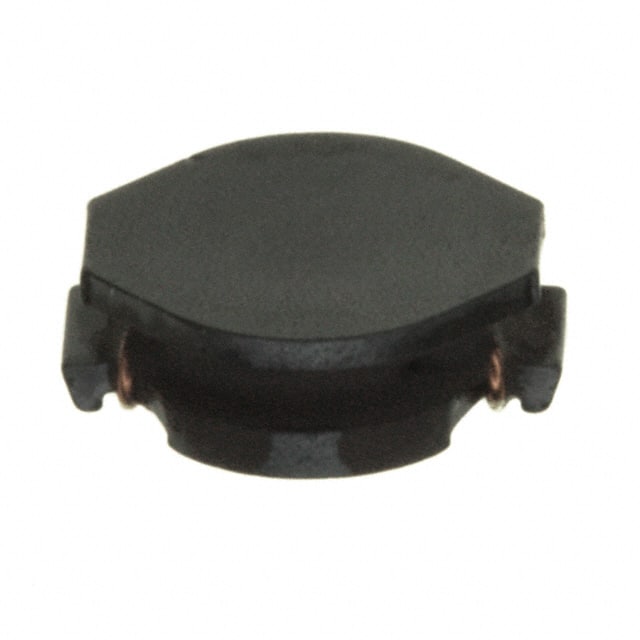

NRS6010T100MMGFFIXED IND 10UH 1.1A 324 MOHM SMD |
1,283 |
|
- |
NR, S Type | 2304 (6010 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.1 A | 1A | Shielded | 324mOhm Max | - | 25MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.039" (1.00mm) |
|
|
NRS6010T2R2MMGFFIXED IND 2.2UH 1.7A 132MOHM SMD |
1,243 |
|
- |
NR, S Type | 2304 (6010 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.7 A | 1.9A | Shielded | 132mOhm Max | - | 56MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.039" (1.00mm) |
|
SDCHA1V6045-2R2-RIND SMD POWER 2.2UH 6.0A |
934 |
|
Datasheet |
SDCHA1V60 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 2.2 µH | ±20% | 6 A | 9.5A | Shielded | 15mOhm | - | 55MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
ASPI-2012-220M-TFIXED IND 22UH 350MA 1.68OHM SMD |
685 |
|
Datasheet |
ASPI-2012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 350 mA | 400mA | Shielded | 1.68Ohm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
|
ASPI-2012-6R8M-TFIXED IND 6.8UH 640MA 479MOHM SM |
536 |
|
Datasheet |
ASPI-2012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 640 mA | 820mA | Shielded | 479mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
AISC-1210HS-8R2K-T2FIXED IND 8.2UH 450MA 1.3OHM SMD |
454 |
|
Datasheet |
AISC-1210HS | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±10% | 450 mA | 480mA | Unshielded | 1.3Ohm Max | 10 @ 1MHz | 40MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.051" (1.30mm) |
|
VLS3012ET-220MFIXED IND 22UH 440MA 756MOHM SMD |
447 |
|
Datasheet |
VLS | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 440 mA | 440mA | Shielded | 756mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|

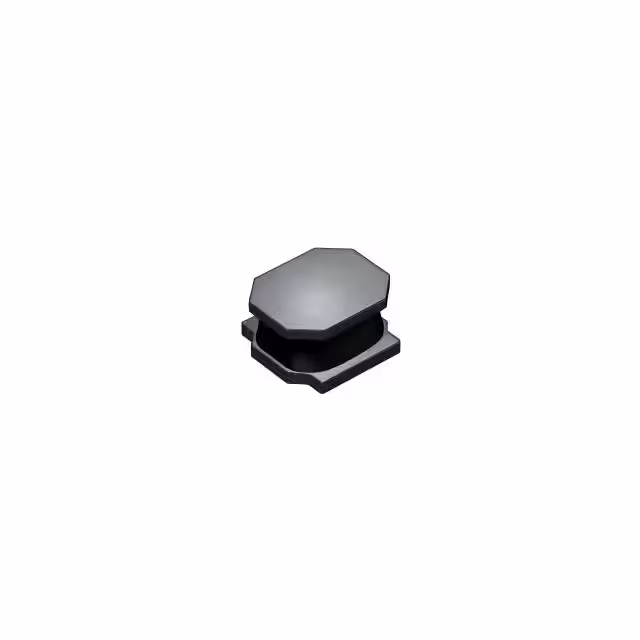

LSXND5050XKT330MMGFIXED IND 33UH 800MA 225MOHM SMD |
220 |
|
Datasheet |
LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | ±20% | 800 mA | 1.15A | Shielded | 292.5mOhm Max | - | 10MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.118" (3.00mm) |
|
CW201212-8N2JFIXED IND 8.2NH 600MA 60MOHM SMD |
959 |
|
Datasheet |
CW201212 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 8.2 nH | ±5% | 600 mA | - | Unshielded | 60mOhm | 60 @ 1GHz | 5.5GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.059" (1.50mm) |
|
MLD2016S2R2MTD25FIXED IND 2.2UH 900MA 221MOHM SM |
938 |
|
Datasheet |
MLD | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 900 mA | - | Shielded | 221mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
LQW2BAN91NG00LFIXED IND 91NH 1.3A 210MOHM SMD |
895 |
|
Datasheet |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 91 nH | ±2% | 1.3 A | - | Unshielded | 210mOhm Max | 70 @ 500MHz | 1.14GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
|
CW201212-39NJFIXED IND 39NH 500MA 180MOHM SMD |
842 |
|
Datasheet |
CW201212 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 39 nH | ±5% | 500 mA | - | Unshielded | 180mOhm | 60 @ 500MHz | 2.1GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.059" (1.50mm) |
|
VLS4012CX-220M-1FIXED IND 22UH 910MA 617MOHM SMD |
583 |
|
Datasheet |
VLS-CX-1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 910 mA | 630mA | Shielded | 617mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
VLS252010ET-2R2MFIXED IND 2.2UH 1.2A 190MOHM SMD |
571 |
|
Datasheet |
VLS | 1008 (2520 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.2 A | 1.2A | Shielded | 190mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
-2,70mm.jpg)
|
LBC3225T470KRVFIXED IND 47UH 320MA 670MOHM SMD |
1,929 |
|
- |
LB, C Type | 1210 (3225 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | - | 47 µH | ±10% | 320 mA | - | Unshielded | 670mOhm | - | 10MHz | AEC-Q200 | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|
|
LBC3225T4R7MRVFIXED IND 4.7UH 830MA 100MOHM SM |
1,641 |
|
- |
LB, C Type | 1210 (3225 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | - | 4.7 µH | ±20% | 830 mA | - | Unshielded | 100mOhm | - | 70MHz | AEC-Q200 | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|
|
LBC3225T100KRVFIXED IND 10UH 720MA 133MOHM SMD |
995 |
|
- |
LB, C Type | 1210 (3225 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | - | 10 µH | ±10% | 720 mA | - | Unshielded | 133mOhm | - | 23MHz | AEC-Q200 | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|
SDCHA1V5020-150-RIND SMD POWER 15.0UH 1.25A |
605 |
|
Datasheet |
SDCHA1V50 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 15 µH | ±20% | 1.25 A | 1.3A | Shielded | 165mOhm | - | 31MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
