Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

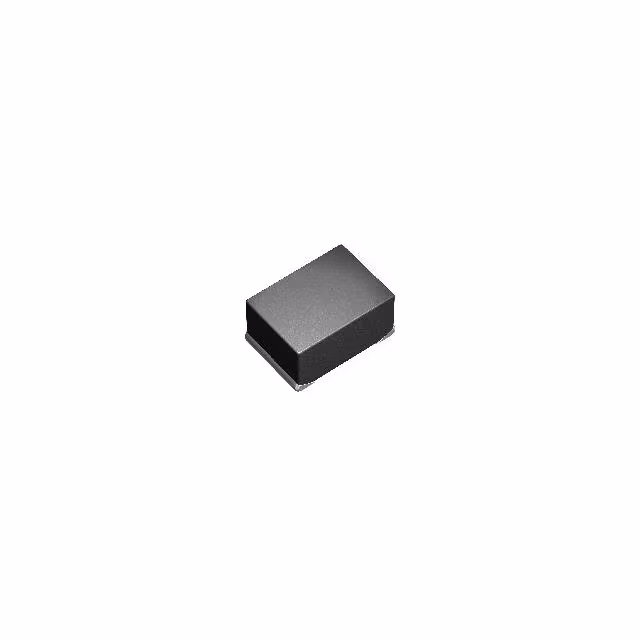

LSANB2520MKT3R3MFIXED IND 3.3UH 1.7A 156MOHM SMD |
454 |
|
Datasheet |
LSAN | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 3.3 µH | ±20% | 1.7 A | 1.8A | Shielded | 156mOhm Max | - | - | - | -40°C ~ 105°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
LSANB2520MKT2R2MFIXED IND 2.2UH 1.9A 117MOHM SMD |
336 |
|
Datasheet |
LSAN | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 2.2 µH | ±20% | 1.9 A | 2A | Shielded | 110mOhm Max | - | - | - | -40°C ~ 105°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
LQW2BAS39NJ00LFIXED IND 39NH 500MA 290MOHM SMD |
236 |
|
Datasheet |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Air | 39 nH | ±5% | 500 mA | - | Unshielded | 290mOhm Max | 60 @ 500MHz | 2GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
|
LQW2BASR12J00LFIXED IND 120NH 400MA 510MOHM SM |
232 |
|
Datasheet |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Air | 120 nH | ±5% | 400 mA | - | Unshielded | 510mOhm Max | 50 @ 250MHz | 1.1GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
LQW15AN23NG8ZDFIXED IND 23NH 760MA 0.201OHM SM |
823 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 23 nH | ±2% | 760 mA | - | Unshielded | 201mOhm Max | 29 @ 250MHz | 4.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN11NG8ZDFIXED IND 11NH 1.4A 0.083OHM SMD |
657 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 11 nH | ±2% | 1.4 A | - | Unshielded | 83mOhm Max | 32 @ 250MHz | 6.2GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN3N8G8ZDFIXED IND 3.8NH 1.95A 0.03OHM SM |
524 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 3.8 nH | ±2% | 1.95 A | - | Unshielded | 30mOhm Max | 35 @ 250MHz | 10GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
SDEM25201B-2R2MSFIXED IND 2.2UH 1.85A 0.117OHM |
512 |
|
Datasheet |
SDEM25201B | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Metal | 2.2 µH | ±20% | 1.85 A | 2.3A | Shielded | 117mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
LQW2BAS91NJ00LFIXED IND 91NH 400MA 480MOHM SMD |
395 |
|
Datasheet |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Air | 91 nH | ±5% | 400 mA | - | Unshielded | 480mOhm Max | 65 @ 500MHz | 1.33GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
|
LQW15AN6N6G8ZDFIXED IND 6.6NH 1.28A 0.078OHM |
225 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 6.6 nH | ±2% | 1.28 A | - | Unshielded | 78mOhm Max | 30 @ 250MHz | 7GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
-1,45mm.jpg)
|
CBL2012T2R2MFIXED IND 2.2UH 590MA 507MOHM SM |
958 |
|
Datasheet |
CB, L Type | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 590 mA | 440mA | Unshielded | 507mOhm Max | - | 80MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
NLV32T-1R8J-EFFIXED IND 1.8UH 350MA 900MOHM SM |
899 |
|
Datasheet |
NLV-EF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±5% | 350 mA | - | Unshielded | 900mOhm Max | 30 @ 7.96MHz | 80MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
MPH201610S4R7MTFIXED IND 4.7UH 1.1A 175MOHM SMD |
765 |
|
Datasheet |
MPH | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 4.7 µH | ±20% | 1.1 A | 180mA | Shielded | 175mOhm Max | - | 30MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
NLV32T-027J-EFFIXED IND 27NH 450MA 220MOHM SMD |
712 |
|
Datasheet |
NLV-EF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 nH | ±5% | 450 mA | - | Unshielded | 220mOhm Max | 23 @ 100MHz | 1.5GHz | - | -40°C ~ 105°C | 100 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
NLCV25T-2R2M-EFFIXED IND 2.2UH 390MA 650MOHM SM |
555 |
|
Datasheet |
NLCV-EF | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 390 mA | - | Unshielded | 650mOhm Max | 20 @ 7.96MHz | 95MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
MLF2012D47NMTD25FIXED IND 47NH 300MA 100MOHM SMD |
500 |
|
Datasheet |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 47 nH | ±20% | 300 mA | - | Shielded | 100mOhm Max | 15 @ 50MHz | 550MHz | AEC-Q200 | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|

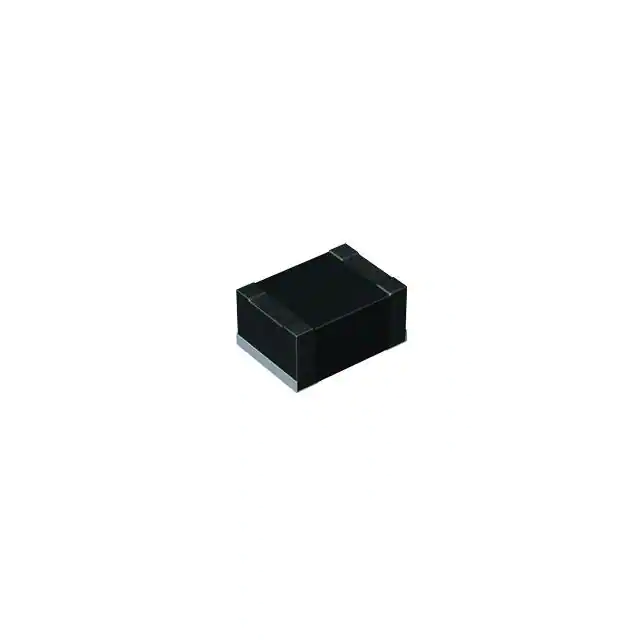

LSQPB322517T4R7MFIXED IND 4.7UH 1A 216 MOHM SMD |
210 |
|
Datasheet |
LSQP | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 1 A | 1.3A | Unshielded | 216mOhm Max | - | 120MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
|
MLF2012C220KTD25FIXED IND 22UH 5MA 900 MOHM SMD |
998 |
|
Datasheet |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 22 µH | ±10% | 5 mA | - | Shielded | 900mOhm Max | 30 @ 1MHz | 18MHz | AEC-Q200 | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
NLV32T-033J-PFFIXED IND 33NH 450MA 240MOHM SMD |
911 |
|
Datasheet |
NLV-PF | 1210 (3225 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 33 nH | ±5% | 450 mA | - | Unshielded | 240mOhm Max | 25 @ 100MHz | 1.4GHz | - | -40°C ~ 105°C | 100 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
NLCV32T-R33M-PFRFIXED IND 330NH 2.1A 42 MOHM SMD |
898 |
|
Datasheet |
NLCV-PF | 1210 (3225 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 330 nH | ±20% | 2.1 A | - | Unshielded | 42mOhm Max | 10 @ 25.2MHz | 300MHz | - | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
