Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTF4022T-4R7N-DFIXED IND 4.7UH 1.8A 90 MOHM SMD |
1,008 |
|
Datasheet |
LTF4022-D | 2-SMD | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 1.8 A | 1.3A | Shielded | 90mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 1 MHz | - | Surface Mount | - | 0.217" L x 0.157" W (5.50mm x 4.00mm) | 0.087" (2.20mm) |
|

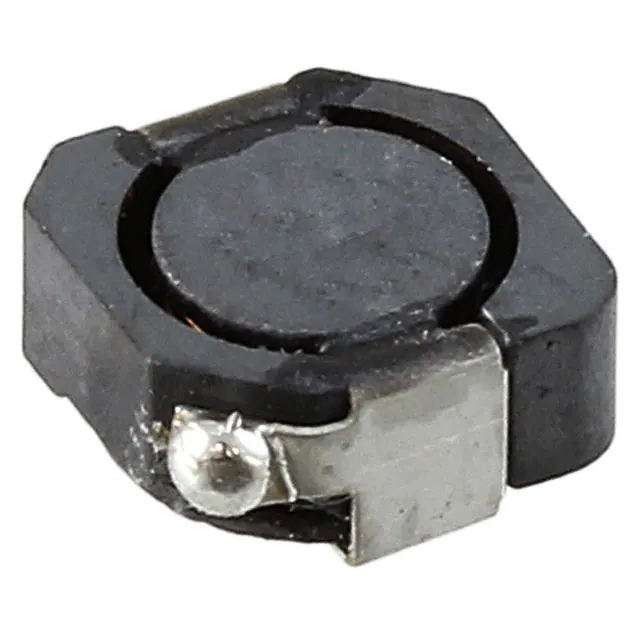

CDRH5D28RH125NP-220MCFIXED IND 22UH 900MA 266MOHM SMD |
1,373 |
|
Datasheet |
CDRH5D28R/H125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 900 mA | 1.7A | Shielded | 266mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.232" W (6.00mm x 5.90mm) | 0.118" (3.00mm) |
|
SPM4020T-100M-LRFIXED IND 10UH 1.8A 284.1MOHM SM |
574 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 1.8 A | 2.3A | Shielded | 284.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.079" (2.00mm) |
|
744732100FIXED IND 10UH 4A 33 MOHM TH |
4,754 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 4 A | 4A | Unshielded | 33mOhm Max | - | 27MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
74404086221WE-LQS SMT SEMI-SHIELDED POWER I |
3,694 |
|
Datasheet |
WE-LQS | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±20% | 950 mA | 1.44A | Shielded | 555mOhm | - | 2.8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.256" (6.50mm) |
|
SRR1260A-3R3YFIXED IND 3.3UH 7.6A 12 MOHM SMD |
2,189 |
|
Datasheet |
SRR1260A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 7.6 A | 7.8A | Shielded | 12mOhm Max | 20 @ 7.96MHz | 40MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
SPM4020T-2R2M-LRFIXED IND 2.2UH 4.4A 61.6MOHM SM |
1,046 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 4.4 A | 5.3A | Shielded | 61.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.079" (2.00mm) |
|
SRP7050TA-6R8MFIXED IND 6.8UH 5.5A 51.5MOHM SM |
800 |
|
Datasheet |
SRP7050TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 6.8 µH | ±20% | 5.5 A | 8.5A | Shielded | 51.5mOhm Max | 15 @ 100kHz | 18MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
B82477G4104M000FIXED IND 100UH 1.7A 165MOHM SMD |
499 |
|
Datasheet |
B82477G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.7 A | 1.95A | Shielded | 165mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.315" (8.00mm) |
|
IHLP4040DZER1R0M01FIXED IND 1UH 17.5A 4.1 MOHM SMD |
589 |
|
Datasheet |
IHLP-4040DZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 17.5 A | 36A | Shielded | 4.1mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
SPM5030T-R47MFIXED IND 470NH 14A 5.94MOHM SMD |
501 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | 14 A | 11A | Shielded | 5.94mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.197" W (5.20mm x 5.00mm) | 0.118" (3.00mm) |
|
IHLP3232DZERR33M01FIXED IND 330NH 29.5A 2.14 MOHM |
1,050 |
|
Datasheet |
IHLP-3232DZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 29.5 A | 36A | Shielded | 2.14mOhm Max | - | 97MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.157" (4.00mm) |
|
CDRH105RNP-4R7NCFIXED IND 4.7UH 6.1A 12.3MOHM SM |
979 |
|
Datasheet |
CDRH105R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 6.1 A | 6.4A | Shielded | 12.3mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.201" (5.10mm) |
|
5800-101-RCFIXED IND 100UH 800MA 210MOHM TH |
3,094 |
|
Datasheet |
5800 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 800 mA | 1.1A | Unshielded | 210mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) | - |
|
SRP1038A-8R2MFIXED IND 8.2UH 8A 24 MOHM SMD |
4,614 |
|
Datasheet |
SRP1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 8.2 µH | ±20% | 8 A | 12.5A | Shielded | 24mOhm Max | 20 @ 100kHz | 12MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
AMDLA1306S-100MTFIXED IND 10UH 11A 15.8MOHM SMD |
1,655 |
|
Datasheet |
AMDLA1306S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 10 µH | ±20% | 11 A | 15A | Shielded | 15.8mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.256" (6.50mm) |
|
|
SRP1050WA-101MIND POWER HC 100UH 2.7A SHLD |
1,007 |
|
Datasheet |
SRP1050WA | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | 100 µH | ±20% | 2.7 A | 4A | Shielded | 268mOhm Max | 20 @ 100kHz | 3MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.213" (5.40mm) |
|
IHLP4040DZER100MA1IHLP-4040DZ-A1 10 20% ER E3 |
549 |
|
Datasheet |
IHLP-4040DZ-A1 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 10 µH | ±20% | 6.8 A | 12A | Shielded | 36.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
SRP1238A-6R8MFIXED IND 6.8UH 9A 24 MOHM SMD |
520 |
|
Datasheet |
SRP1238A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 6.8 µH | ±20% | 9 A | 18A | Shielded | 24mOhm Max | 20 @ 100kHz | 13MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.138" (3.50mm) |
|
LQW21FTR47M0HLFIXED IND 0.47UH 1100MA POWRTRN |
3,382 |
|
Datasheet |
LQW21 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 900 mA | 1A | Shielded | 50mOhm Max | - | 470MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.071" (1.80mm) |
