Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
159ZLFIXED IND 2.5MH 10A 44 MOHM CHAS |
1,135 |
|
Datasheet |
159 | Nonstandard | Bulk | Active | - | - | 2.5 mH | ±15% | 10 A | - | Unshielded | 44mOhm | - | - | - | - | - | - | Chassis Mount | - | 4.030" L x 2.250" W (102.36mm x 57.15mm) | 2.630" (66.80mm) |
|
193UFIXED IND 200MH 2A 1.7 OHM CHASS |
3,758 |
|
Datasheet |
193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | 200 mH | ±15% | 2 A | - | Unshielded | 1.7Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 4.250" L x 3.130" W (107.95mm x 79.50mm) | 3.810" (96.77mm) |
|
195J10FIXED IND 10MH 10A 70 MOHM CHASS |
2,266 |
|
Datasheet |
195 | Nonstandard | Bulk | Active | - | - | 10 mH | ±15% | 10 A | - | Unshielded | 70mOhm | - | - | - | - | - | - | Chassis Mount | - | 3.750" L x 4.350" W (95.25mm x 110.49mm) | 3.130" (79.50mm) |
|
|
195G20FIXED IND 5MH 20A 25 MOHM CHASS |
1,899 |
|
Datasheet |
195 | Nonstandard | Bulk | Active | - | - | 5 mH | ±15% | 20 A | - | Unshielded | 25mOhm | - | - | - | - | - | - | Chassis Mount | - | 4.500" L x 4.750" W (114.30mm x 120.65mm) | 3.750" (95.25mm) |
|
|
195E30FIXED IND 2.5MH 30A 13 MOHM CHAS |
3,668 |
|
Datasheet |
195 | Nonstandard | Bulk | Active | - | - | 2.5 mH | ±15% | 30 A | - | Unshielded | 13mOhm | - | - | - | - | - | - | Chassis Mount | - | 4.500" L x 5.250" W (114.30mm x 133.35mm) | 3.750" (95.25mm) |
|
|
195C50FIXED IND 1MH 50A 5MOHM CHAS MNT |
2,090 |
|
Datasheet |
195 | Nonstandard | Bulk | Active | - | - | 1 mH | ±15% | 50 A | - | Unshielded | 5mOhm | - | - | - | - | - | - | Chassis Mount | - | 4.500" L x 5.250" W (114.30mm x 133.35mm) | 3.750" (95.25mm) |
|
|
195J20FIXED IND 10MH 20A 45 MOHM CHASS |
3,812 |
|
Datasheet |
195 | Nonstandard | Bulk | Active | - | - | 10 mH | ±15% | 20 A | - | Unshielded | 45mOhm | - | - | - | - | - | - | Chassis Mount | - | 5.250" L x 5.500" W (133.35mm x 139.70mm) | 4.470" (113.54mm) |
|

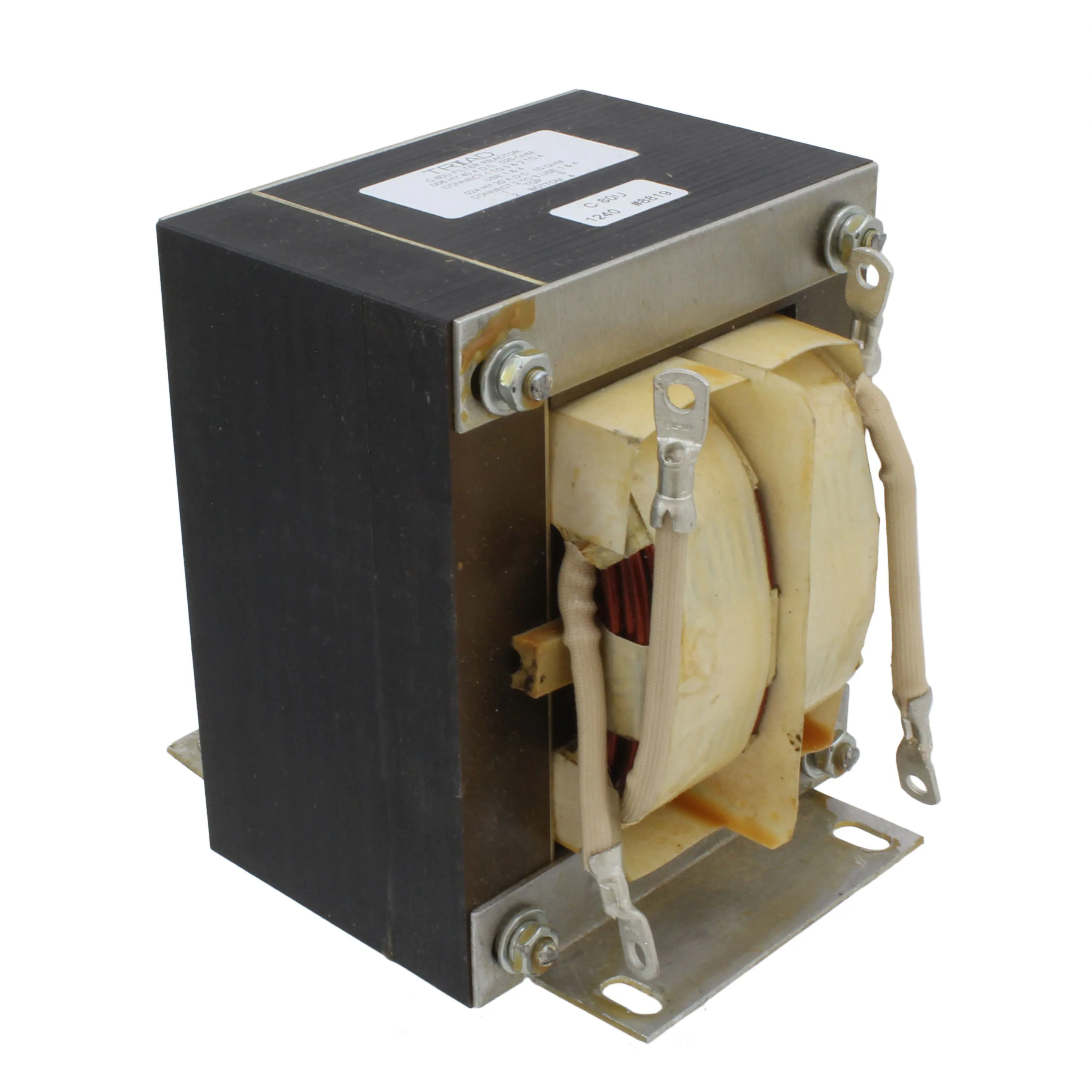

C-80UFIXED IND 24MH 20A 25 MOHM CHASS |
3,917 |
|
Datasheet |
C | Nonstandard | Bulk | Active | Wirewound | - | 24 mH | -20%, +50% | 20 A | - | Unshielded | 25mOhm | - | - | - | -40°C ~ 85°C | 120 Hz | - | Chassis Mount | - | 4.562" L x 5.500" W (115.87mm x 139.70mm) | 5.312" (134.92mm) |
|
|
195E50FIXED IND 2.5MH 50A 8 MOHM CHASS |
3,832 |
|
Datasheet |
195 | Nonstandard | Bulk | Active | - | - | 2.5 mH | ±15% | 50 A | - | Unshielded | 8mOhm | - | - | - | - | - | - | Chassis Mount | - | 5.250" L x 6.000" W (133.35mm x 152.40mm) | 4.470" (113.54mm) |
|
|
195C100FIXED IND 1MH 100A 3.6 MOHM CHAS |
2,326 |
|
Datasheet |
195 | Nonstandard | Bulk | Active | - | - | 1 mH | ±15% | 100 A | - | Unshielded | 3.6mOhm | - | - | - | - | - | - | Chassis Mount | - | 5.250" L x 5.500" W (133.35mm x 139.70mm) | 4.470" (113.54mm) |
|
|
195T10FIXED IND 100MH 10A 420 MOHM |
3,584 |
|
Datasheet |
195 | Nonstandard | Bulk | Active | - | - | 100 mH | ±15% | 10 A | - | Unshielded | 420mOhm | - | - | - | - | - | - | Chassis Mount | - | 7.500" L x 6.000" W (190.50mm x 152.40mm) | 6.250" (158.75mm) |
|
|
195B150FIXED IND 500UH 150A 1.8 MOHM |
1,171 |
|
Datasheet |
195 | Nonstandard | Bulk | Active | - | - | 500 µH | ±15% | 150 A | - | Unshielded | 1.8mOhm | - | - | - | - | - | - | Chassis Mount | - | 5.250" L x 5.500" W (133.35mm x 139.70mm) | 4.470" (113.54mm) |
|
|
195G50FIXED IND 5MH 50A 21 MOHM CHASS |
3,060 |
|
Datasheet |
195 | Nonstandard | Bulk | Active | - | - | 5 mH | ±15% | 50 A | - | Unshielded | 21mOhm | - | - | - | - | - | - | Chassis Mount | - | 7.500" L x 6.500" W (190.50mm x 165.10mm) | 6.250" (158.75mm) |
|

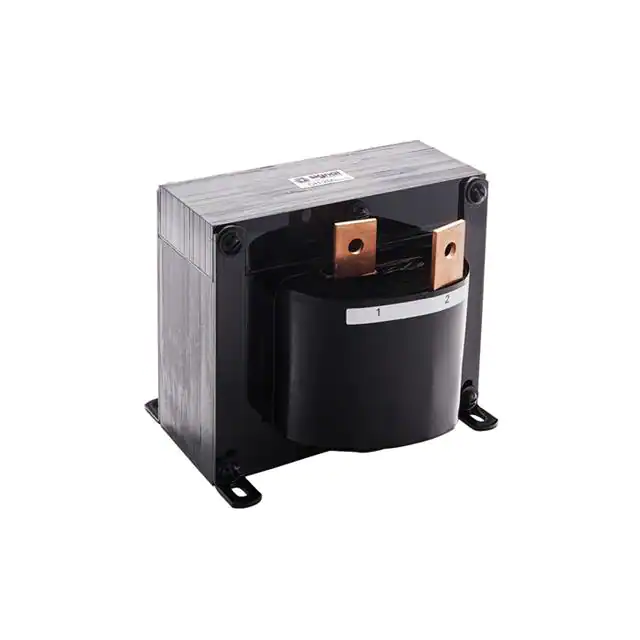

CH-200FIXED IND 300UH 200A 1 MOHM CHAS |
3,629 |
|
Datasheet |
- | Nonstandard | Box | Active | - | - | 300 µH | - | 200 A | - | Unshielded | 1mOhm | - | - | - | - | - | - | Chassis Mount | - | 7.500" L x 7.500" W (190.50mm x 190.50mm) | 6.252" (158.80mm) |
|
|
195R20FIXED IND 50MH 20A 130 MOHM CHAS |
3,165 |
|
Datasheet |
195 | Nonstandard | Bulk | Active | - | - | 50 mH | ±15% | 20 A | - | Unshielded | 130mOhm | - | - | - | - | - | - | Chassis Mount | - | 9.000" L x 8.250" W (228.60mm x 209.55mm) | 7.500" (190.50mm) |
.jpg)
|
LQG15HN8N2J02DFIXED IND 8.2NH 500MA 0.25OHM SM |
895 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 8.2 nH | ±5% | 500 mA | - | Unshielded | 250mOhm Max | 8 @ 100MHz | 3.6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQG15HN5N6C02DFIXED IND 5.6NH 600MA 0.18OHM SM |
839 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 5.6 nH | ±0.2nH | 600 mA | - | Unshielded | 180mOhm Max | - | 5.3GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
WLPH201610M2R2PPPOWER CHOKE MOLDED 2.2UH 1.9A |
559 |
|
Datasheet |
PH | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 1.5 A | 1.71A | Shielded | 150mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
LQG15HN18NJ02DFIXED IND 18NH 350MA 0.51OHM SMD |
322 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 18 nH | ±5% | 350 mA | - | Unshielded | 510mOhm Max | 8 @ 100MHz | 2.1GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQG15HS2N2B02DFIXED IND 2.2NH 900MA 0.09OHM SM |
291 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 2.2 nH | ±0.1nH | 900 mA | - | Unshielded | 90mOhm Max | - | - | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
