Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDR1307-102KLFIXED IND 1MH 650MA 1.6 OHM SMD |
539 |
|
Datasheet |
SDR1307 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 650 mA | 1A | Unshielded | 1.6Ohm Max | 10 @ 252kHz | 1.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.287" (7.30mm) |
|
74404024220FIXED IND 22UH 450MA 910MOHM SMD |
1,088 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 450 mA | 550mA | Shielded | 910mOhm | - | 22MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
IHLP2525CZER1R0M01FIXED IND 1UH 11A 10 MOHM SMD |
932 |
|
Datasheet |
IHLP-2525CZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 11 A | 22A | Shielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
74479299147FIXED IND 470NH 3.6A 31 MOHM SMD |
3,314 |
|
Datasheet |
WE-PMCI | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±30% | 3.6 A | 6.3A | Shielded | 31mOhm Max | - | 80MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
SRP7028A-R68MFIXED IND 680NH 15.5A 5.5MOHM SM |
1,000 |
|
Datasheet |
SRP7028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 680 nH | ±20% | 15.5 A | 25A | Shielded | 5.5mOhm Max | 15 @ 100kHz | 67MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
IHLP2020CZER100M1AIHLP-2020CZ-1A 10 20% ER E3 |
1,000 |
|
Datasheet |
IHLP-2020CZ-1A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 10 µH | ±20% | 2.75 A | 2.25A | Shielded | 131.9mOhm Max | - | 17MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|
78438356010FIXED IND 1UH 7.2A 15 MOHM SMD |
3,361 |
|
Datasheet |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Alloy | 1 µH | ±20% | 7.2 A | 9A | Shielded | 15mOhm Max | - | 55MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
SRP6060FA-6R8MFIXED IND 6.8UH 9A 20.8 MOHM SMD |
799 |
|
Datasheet |
SRP6060FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 6.8 µH | ±20% | 9 A | 9.2A | Shielded | 20.8mOhm Max | - | 16MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.236" (6.00mm) |
|
SD52-4R7-RFIXED IND 4.7UH 1.63A 56.8 MOHM |
251 |
|
Datasheet |
SD52 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.63 A | 1.64A | Shielded | 56.8mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|

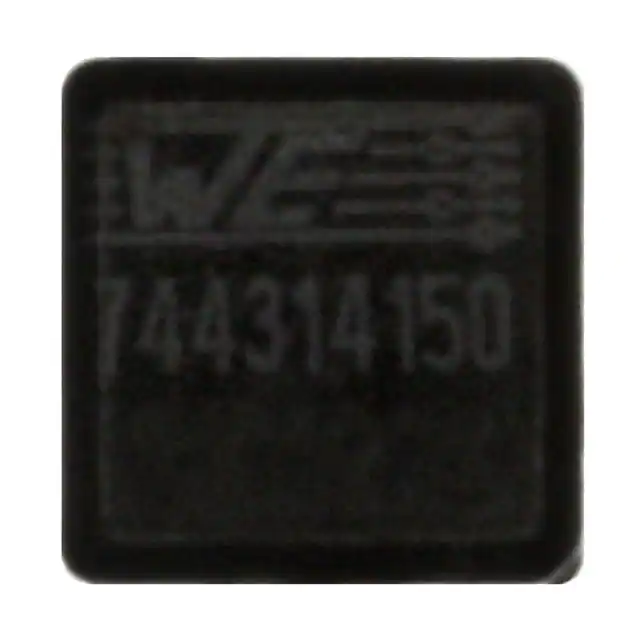

744314150FIXED IND 1.5UH 13A 4.3 MOHM SMD |
2,748 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±20% | 13 A | 11A | Shielded | 4.3mOhm | - | 110MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7050 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.197" (5.00mm) |
|
B82559B0203A016FIXED IND 20UH 10A 12.1 MOHM SMD |
2,063 |
|
Datasheet |
ERU16 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 20 µH | ±10% | 10 A | 12.4A | Shielded | 12.1mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.681" L x 0.650" W (17.30mm x 16.50mm) | 0.407" (10.35mm) |
|
74437429203151FIXED IND 150UH 8.4A 38.85 MOHM |
4,590 |
|
Datasheet |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 150 µH | ±20% | 8.4 A | 7.8A | Shielded | 38.85mOhm | - | 3.8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2920 | 1.102" L x 0.984" W (28.00mm x 25.00mm) | 0.807" (20.50mm) |
|
B82559A0203A024FIXED IND 20UH 24A 3.4 MOHM SMD |
3,650 |
|
Datasheet |
ERU24 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 20 µH | ±10% | 24 A | 21.5A | Shielded | 3.4mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.972" L x 0.898" W (24.70mm x 22.80mm) | 0.839" (21.30mm) |
|
MPXV1D2213L100FIXED IND 10UH 34A 4.4 MOHM SMD |
1,644 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 10 µH | ±20% | 34 A | 36A | Shielded | 4.4mOhm Max | - | 5.2MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|

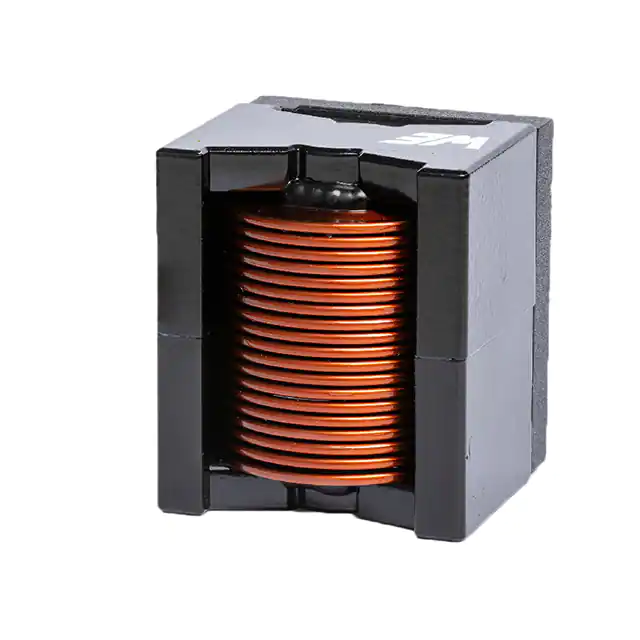

7443763540470FIXED IND 47UH 32A 6.38 MOHM TH |
4,251 |
|
Datasheet |
WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 47 µH | ±20% | 32 A | 31A | Shielded | 6.38mOhm Max | - | 6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.614" L x 1.417" W (41.00mm x 36.00mm) | 1.378" (35.00mm) |
|

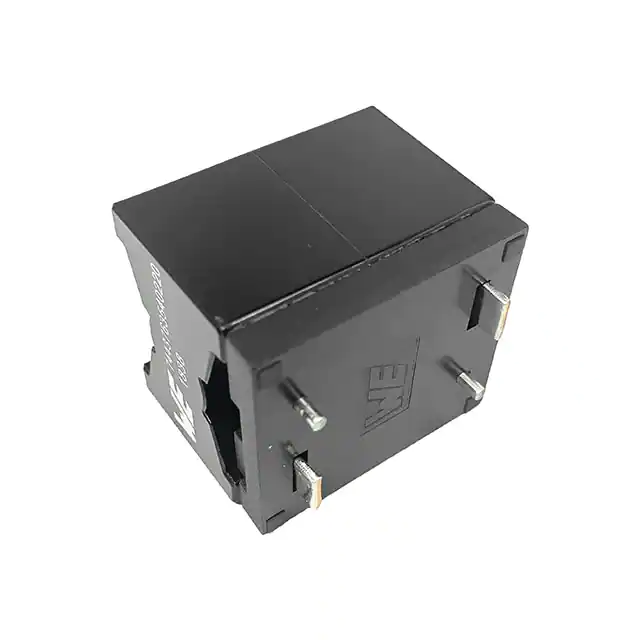

7443763540220FIXED IND 22UH 40.6A 3.2 MOHM TH |
2,233 |
|
Datasheet |
WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 22 µH | ±20% | 40.6 A | 42A | Shielded | 3.2mOhm Max | - | 9MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.614" L x 1.417" W (41.00mm x 36.00mm) | 1.378" (35.00mm) |
|
506WLSM0R47KT815T\100FIXED IND 470NH 815MA 190MOHM SM |
4,840 |
|
Datasheet |
506WLS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 470 nH | ±10% | 815 mA | - | Unshielded | 190mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.127" L x 0.080" W (3.23mm x 2.03mm) | 0.105" (2.67mm) |
|
159YFIXED IND 600MH 750MA 11 OHM |
1,380 |
|
Datasheet |
159 | Nonstandard | Bulk | Active | - | - | 600 mH | ±15% | 750 mA | - | Unshielded | 11Ohm | - | - | - | - | - | - | Chassis Mount | - | 4.030" L x 2.250" W (102.36mm x 57.15mm) | 2.630" (66.80mm) |
|
IHXL1500VZEB3R3M5AFIXED IND 3.3UH 150A 0.42MOHM TH |
3,792 |
|
Datasheet |
IHXL-1500VZ-5A | Nonstandard | Bulk | Active | - | - | 3.3 µH | ±20% | 150 A | - | Shielded | 0.42mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Through Hole | - | 1.500" L x 1.500" W (38.10mm x 38.10mm) | 0.872" (22.15mm) |
|

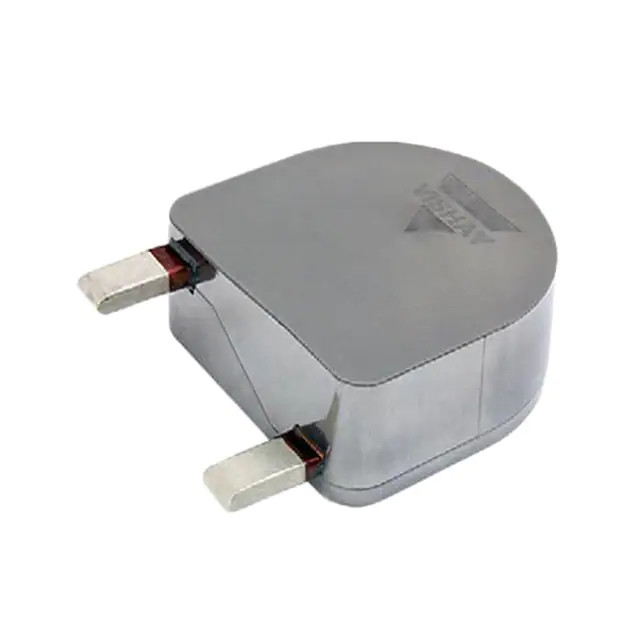

IHXL2000VZEB2R2M5AFIXED IND 2.2UH 187A 0.23MOHM TH |
3,357 |
|
Datasheet |
IHXL-2000VZ-5A | Radial | Bulk | Active | - | Ferrite | 2.2 µH | ±20% | 187 A | 190A | Shielded | 0.23mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Through Hole | - | 2.000" L x 0.854" W (50.80mm x 21.70mm) | 2.010" (51.05mm) |
