Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTH8RF-272K2700UH RADIAL PWR LINE INDUCTOR |
510 |
|
Datasheet |
CTH8RF | Radial, Vertical Cylinder | Bulk | Active | - | - | 2.7 mH | ±10% | 400 mA | 530mA | Unshielded | 2.1Ohm Max | - | 650kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.469" Dia (11.90mm) | 0.917" (23.30mm) |
|
CTS4F-330J33UH XIALSHIELDED INDUCTOR |
2,500 |
|
Datasheet |
CTS4F | Axial | Tape & Reel (TR) | Active | Molded | - | 33 µH | ±5% | 505 mA | 190mA | Shielded | 930mOhm Max | 50 @ 2.5MHz | 33MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.449" L (4.06mm x 11.40mm) | - |
|
|
CTS4F-222K2200UH XIALSHIELDED INDUCTOR |
2,135 |
|
Datasheet |
CTS4F | Axial | Tape & Reel (TR) | Active | Molded | - | 2.2 mH | ±10% | 103 mA | 27mA | Shielded | 22Ohm Max | 70 @ 250kHz | 2.2MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.449" L (4.06mm x 11.40mm) | - |
|
|
CTS4F-472K4700UH XIALSHIELDED INDUCTOR |
250 |
|
Datasheet |
CTS4F | Axial | Tape & Reel (TR) | Active | Molded | - | 4.7 mH | ±10% | 68 mA | 19mA | Shielded | 51Ohm Max | 70 @ 250kHz | 1.7MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.449" L (4.06mm x 11.40mm) | - |
|
|
CTS4F-101K100UH XIALSHIELDED INDUCTOR |
250 |
|
Datasheet |
CTS4F | Axial | Tape & Reel (TR) | Active | Molded | - | 100 µH | ±10% | 322 mA | 120mA | Shielded | 2.3Ohm Max | 65 @ 2.5MHz | 12MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.449" L (4.06mm x 11.40mm) | - |
|
|
CTS4F-333K33000UH XIALSHIELDED INDUCTR |
115 |
|
Datasheet |
CTS4F | Axial | Tape & Reel (TR) | Active | Molded | - | 33 mH | ±10% | 32 mA | 7mA | Shielded | 222Ohm Max | 50 @ 79kHz | 420kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.449" L (4.06mm x 11.40mm) | - |
|
CTHR3F-500K50UH FILTER INDUCTOR |
1,100 |
|
Datasheet |
CTHRF | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 50 µH | ±10% | 5.6 A | 8A | Unshielded | 50mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.800" Dia (20.32mm) | 0.875" (22.23mm) |
|
IND-I-80256 REV.BINDUCTOR, AXIAL, 100UH, 3A |
1,000 |
|
Datasheet |
- | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Through Hole | - | 0.394" Dia (10.00mm) | - |
|

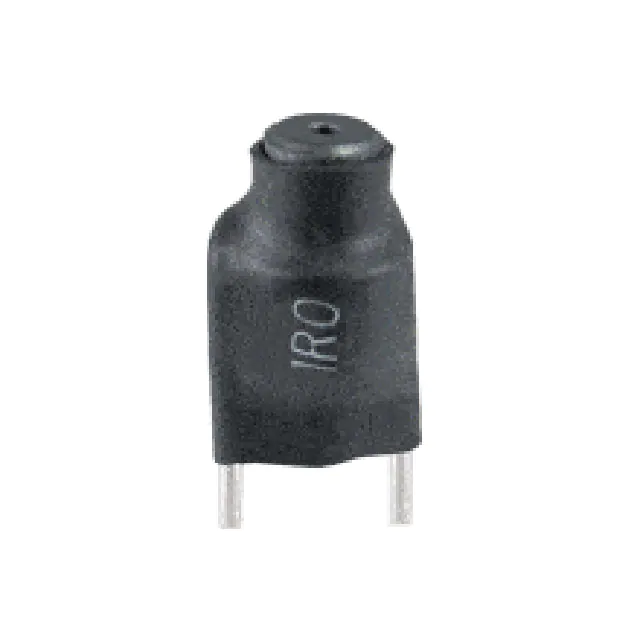

CTVF-0-221K-03220UH RADIAL POWER INDUCTOR |
105 |
|
- |
CTVF-0 | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 220 µH | ±10% | 2.1 A | - | Unshielded | 210mOhm Max | - | - | - | -55°C ~ 125°C | 15.75 kHz | - | Through Hole | Radial | 0.551" Dia (14.00mm) | 1.201" (30.50mm) |
|
SIDHP-FD2722D-220MFIXED IND 22uH SMD 25A 4.1MOHM |
320 |
|
Datasheet |
SIDHP-FD2722D | Nonstandard | Bulk | Active | Wirewound | - | 22 µH | ±20% | 25 A | 33A | Unshielded | 4.1mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Through Hole | - | 1.075" L x 0.846" W (27.30mm x 21.50mm) | 0.898" (22.80mm) |
|
|
AWIM105804-R10S1MTFHIGH CURRENT POWR IND 100NH 45A |
250 |
|
Datasheet |
AWIM-R | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 100 nH | ±20% | 45 A | 120A | Shielded | 0.64mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | Molded Inductors, Molding Power Choke, Soft Saturation | Surface Mount | - | 0.413" Dia x 0.217" W (10.50mm x 5.50mm) | 0.157" (4.00mm) |
|
|
AWIM105804-R12S1MTFHIGH CURRENT POWR IND 120NH 45A |
250 |
|
Datasheet |
AWIM-R | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 120 nH | ±20% | 45 A | 125A | Shielded | 0.64mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | Molded Inductors, Molding Power Choke, Soft Saturation | Surface Mount | - | 0.413" Dia x 0.217" W (10.50mm x 5.50mm) | 0.157" (4.00mm) |
|
|
AWIM105804D-R15S1MTFHIGH CURRENT POWR IND 120NH 55A |
250 |
|
Datasheet |
AWIM-R | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 120 nH | ±20% | 55 A | 100A | Shielded | 0.43mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | Molded Inductors, Molding Power Choke, Soft Saturation | Surface Mount | - | 0.413" Dia x 0.217" W (10.50mm x 5.50mm) | 0.157" (4.00mm) |
|
|
AWIM105804-R15S1MTFHIGH CURRENT POWR IND 150NH 45A |
250 |
|
Datasheet |
AWIM-R | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 150 nH | ±20% | 45 A | 100A | Shielded | 0.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | Molded Inductors, Molding Power Choke, Soft Saturation | Surface Mount | - | 0.508" L x 0.370" W (12.90mm x 8.10mm) | 0.157" (4.00mm) |
|
CTRL5480F-4-221K220UH RADIAL FIXED INDUCTOR |
150 |
|
- |
CTRL5480F-4 | Radial, Vertical Cylinder | Bulk | Active | - | - | 220 µH | ±10% | 1.3 A | 1.9A | Unshielded | 252mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.449" Dia (11.40mm) | 0.709" (18.00mm) |
|
CTDR2F-4R7M4.7UH RADIAL DRUM CORE INDUCTOR |
448 |
|
Datasheet |
CTDR2F | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 4.7 µH | ±20% | 11.4 A | - | Unshielded | 5mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial | 0.866" Dia (22.00mm) | 0.866" (22.00mm) |
|
|
CTDR2F-101K100UH RADIAL DRUM CORE INDUCTOR |
301 |
|
Datasheet |
CTDR2F | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 100 µH | ±10% | 4 A | - | Unshielded | 80mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial | 0.866" Dia (22.00mm) | 0.866" (22.00mm) |
|
|
CTDR2F-680K68UH RADIAL DRUM CORE INDUCTOR |
253 |
|
Datasheet |
CTDR2F | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 68 µH | ±10% | 4.8 A | - | Unshielded | 53mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial | 0.866" Dia (22.00mm) | 0.866" (22.00mm) |
|
|
CTDR2F-391K390UH RADIAL DRUM CORE INDUCTOR |
150 |
|
Datasheet |
CTDR2F | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 390 µH | ±10% | 1.6 A | - | Unshielded | 320mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial | 0.866" Dia (22.00mm) | 0.866" (22.00mm) |
|
CTDR3F-471K470UH RADIAL DRUM CORE INDUCTOR |
1,000 |
|
Datasheet |
CTDR3F | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 470 µH | ±10% | - | 4A | Unshielded | 187mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial | 1.102" Dia (28.00mm) | 0.866" (22.00mm) |
