Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MS13603R3MS001INDUCTANCE 3.3 H TOL 20% |
6,000 |
|
Datasheet |
MS | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±20% | 16 A | 22A | Shielded | 2.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2-SMD | 0.537" L x 0.496" W (13.65mm x 12.60mm) | 0.236" (6.00mm) |
|
PIM100M0502MA1MOLDED IND 10 UH M 2.3A 0502 AEC |
3,000 |
|
Datasheet |
PIM-0502MA1 | - | Strip | Active | Molded | Metal Composite | - | ±20% | - | 3.4A | Shielded | 199mOhm Max | - | 100kHz | AEC-Q200 | -55°C ~ 125°C | - | High Current | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.071" (1.80mm) |
|
|
PIMR22M0402A1MOLDED IND 220 nH M 13A 0402 |
3,000 |
|
Datasheet |
PIM-0402A1 | - | Strip | Active | Molded | Metal Composite | - | ±30% | - | 24A | Shielded | 7.3mOhm Max | - | 100kHz | - | -40°C ~ 125°C | - | High Current | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.071" (1.80mm) |
|
|
PIMR47M0402A1MOLDED IND 470 nH M 8A 0402 |
3,000 |
|
Datasheet |
PIM-0402A1 | - | Strip | Active | Molded | Metal Composite | - | ±20% | - | 12A | Shielded | 14mOhm Max | - | 100kHz | - | -40°C ~ 125°C | - | High Current | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.071" (1.80mm) |
|
|
PIM150M0502A1MOLDED IND 15 UH M 1.9A 0502 |
3,000 |
|
Datasheet |
PIM-0502A1 | - | Strip | Active | Molded | Metal Composite | - | ±20% | - | 1.8A | Shielded | 270mOhm Max | - | 100kHz | - | -40°C ~ 125°C | - | High Current | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.071" (1.80mm) |
|
CTMC1812SF-3R3JSMD FERRITE CORE WW INDUCTOR |
2,010 |
|
Datasheet |
CTMC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±5% | 355 mA | - | Unshielded | 800mOhm Max | 50 @ 7.96MHz | 110MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CTMC1812SF-681KSMD FERRITE CORE WW INDUCTOR |
2,000 |
|
Datasheet |
CTMC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 50 mA | - | Unshielded | 30Ohm Max | 30 @ 796kHz | 3MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CTMC1812SF-120KSMD FERRITE CORE WW INDUCTOR |
2,000 |
|
Datasheet |
CTMC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 225 mA | - | Unshielded | 2Ohm Max | 50 @ 2.52MHz | 20MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CTMC1812SF-2R7KSMD FERRITE CORE WW INDUCTOR |
1,500 |
|
Datasheet |
CTMC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±10% | 370 mA | - | Unshielded | 750mOhm Max | 50 @ 7.96MHz | 150MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CTMC1812SF-5R6JSMD FERRITE CORE WW INDUCTOR |
1,010 |
|
Datasheet |
CTMC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±5% | 300 mA | - | Unshielded | 1.1Ohm Max | 50 @ 7.96MHz | 50MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CTMC1812SF-391JSMD FERRITE CORE WW INDUCTOR |
1,010 |
|
Datasheet |
CTMC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±5% | 80 mA | - | Unshielded | 18Ohm Max | 40 @ 796kHz | 3.5MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|

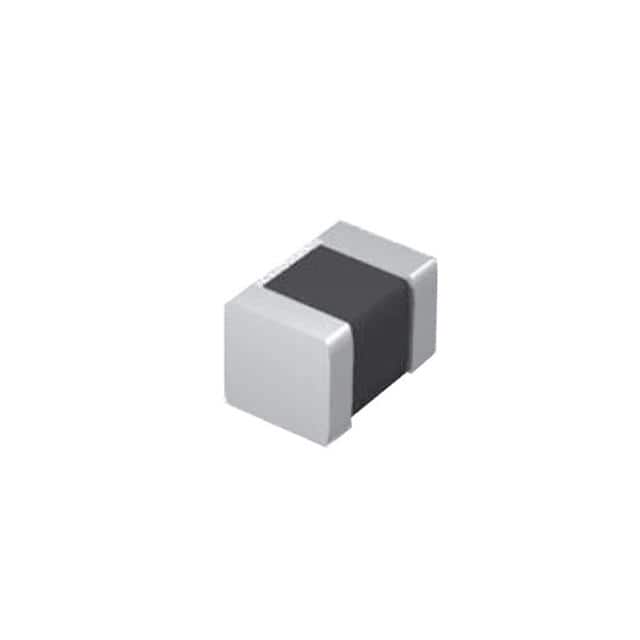

CTLC0603F-10NJSMD LASER CUT INDUCTOR |
2,950 |
|
- |
CTLC0603F | 0603 (1608 Metric) | Bulk | Obsolete | - | - | 10 nH | ±5% | 600 mA | - | Unshielded | 200mOhm Max | 14 @ 100MHz | 5GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
XFHCL19M-1R0MFIXED IND 1.0UH 8.5A 27 MOHM SMD |
3,000 |
|
Datasheet |
XFHCL19M | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 5 A | 8.5A | Shielded | 27mOhm Max | 20 @ 100kHz | 64MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.169" W (4.70mm x 4.30mm) | 0.079" (2.00mm) |
|
CTLQ1812NF-221J220UH 110MA SMD WW INDUCTOR |
1,500 |
|
Datasheet |
CTLQ1812NF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±5% | 110 mA | - | Unshielded | 5.4Ohm Max | 40 @ 796kHz | 4.5MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
SIDMP-SP0730-5R6MFIXED IND 5.6UH SMD 5.3A 42MOHM |
3,000 |
|
Datasheet |
SIDMP-SP0730 | Nonstandard | Bulk | Active | Molded | - | 5.6 µH | ±20% | 5.3 A | 6A | Shielded | 42mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.285" L x 0.260" W (7.25mm x 6.60mm) | 0.118" (3.00mm) |
|
|
XFHCL19M-R22MFIXED IND 0.22UH 24A 7.3 MOHM SM |
3,000 |
|
Datasheet |
XFHCL19M | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±20% | 11 A | 24A | Shielded | 7.3mOhm Max | 5 @ 100kHz | 120MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.169" W (4.70mm x 4.30mm) | 0.079" (2.00mm) |
|
|
XFHCL19M-R33MFIXED IND 0.33UH 18A 8.6 MOHM SM |
3,000 |
|
Datasheet |
XFHCL19M | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 10 A | 18A | Shielded | 8.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.169" W (4.70mm x 4.30mm) | 0.079" (2.00mm) |
|
SIDSP-SD1280-330MFIXED IND 33UH SMD 3.7A 67.5MOHM |
3,000 |
|
Datasheet |
SIDSP-SD1280 | Nonstandard | Bulk | Active | - | - | 33 µH | ±20% | 3.7 A | 5.68A | Shielded | 67.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.317" (8.05mm) |
|
|
SIDMP-SP0730-100MFIXED IND 10UH SMD 4.2A 75MOHM |
3,000 |
|
Datasheet |
SIDMP-SP0730 | Nonstandard | Bulk | Active | Molded | - | 10 µH | ±20% | 4.2 A | 5.5A | Shielded | 75mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.285" L x 0.260" W (7.25mm x 6.60mm) | 0.118" (3.00mm) |
|
CTDO3308PF-104100UH SMD POWER INDUCTOR |
6,011 |
|
Datasheet |
CTDO3308PF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 730 mA | 870mA | Unshielded | 690mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.118" (3.00mm) |
